Every 90 seconds, somewhere in the world, an aircraft aborts a landing approach because of insufficient weather data. The margin between a safe touchdown and a missed approach is often measured in hundreds of feet of visibility, tens of feet of cloud ceiling, and knots of crosswind—all parameters that an Aviation Weather Observation System (AWOS) measures continuously, accurately, and automatically.
Introduction: Why AWOS Matters Now More Than Ever
Global air traffic reached 4.6 billion passengers in 2025, with emerging markets in Africa, the Middle East, Central Asia, and Latin America registering the fastest growth rates at 8-12% annually. Yet according to ICAO's 2025 Global Aviation Safety Report, airports in these regions report weather-related incidents at rates 2.4 times higher than airports with fully automated weather observation systems.
An AWOS bridges this gap. It replaces manual weather observations—which at many regional airports occur at 30-60 minute intervals by a single observer—with continuous, unattended measurement of every meteorological parameter that matters for flight safety. For airport operators evaluating an AWOS investment in 2026, this guide covers everything from sensor physics to procurement strategy, from ICAO classification to real-world deployment case studies.
Haisen Global has deployed AWOS systems at over 200 airports across four continents. Our systems measure wind speed and direction, visibility, cloud base height, temperature, humidity, barometric pressure, and precipitation—all in real time, all ICAO-compliant, and all designed for the challenging environments of emerging-market airports where power reliability, communications infrastructure, and maintenance capability cannot be taken for granted.

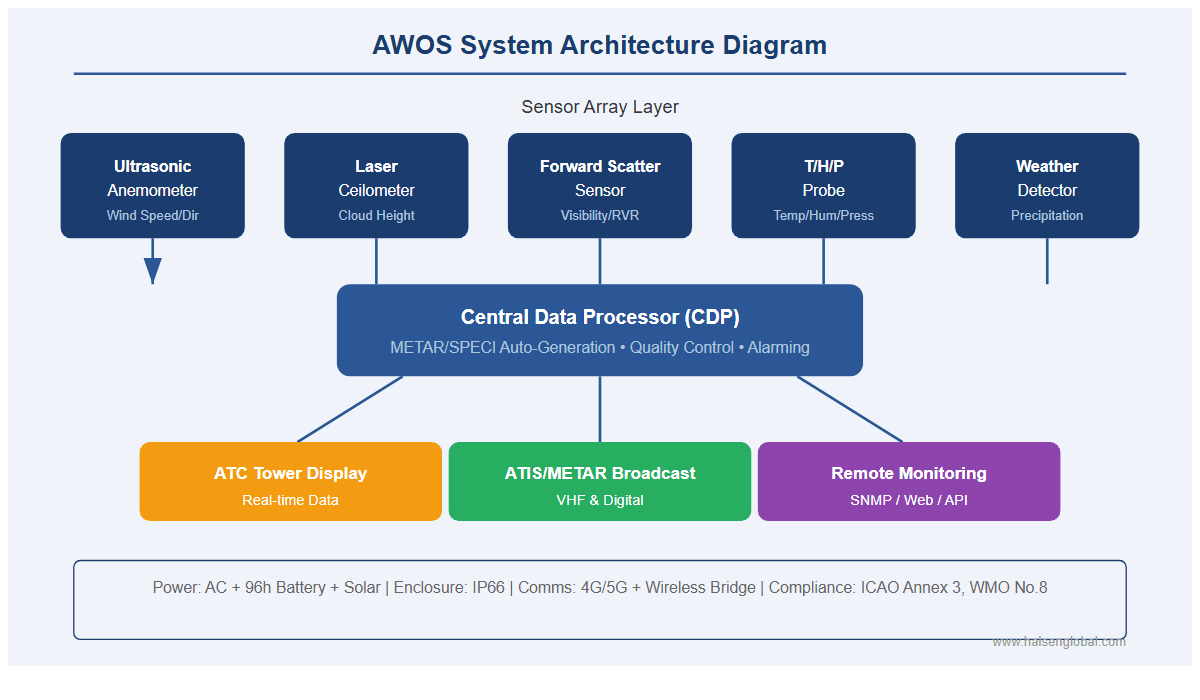

Part 1: Understanding AWOS — The Complete Sensor Ecosystem
1.1 Wind Measurement: More Than Speed and Direction

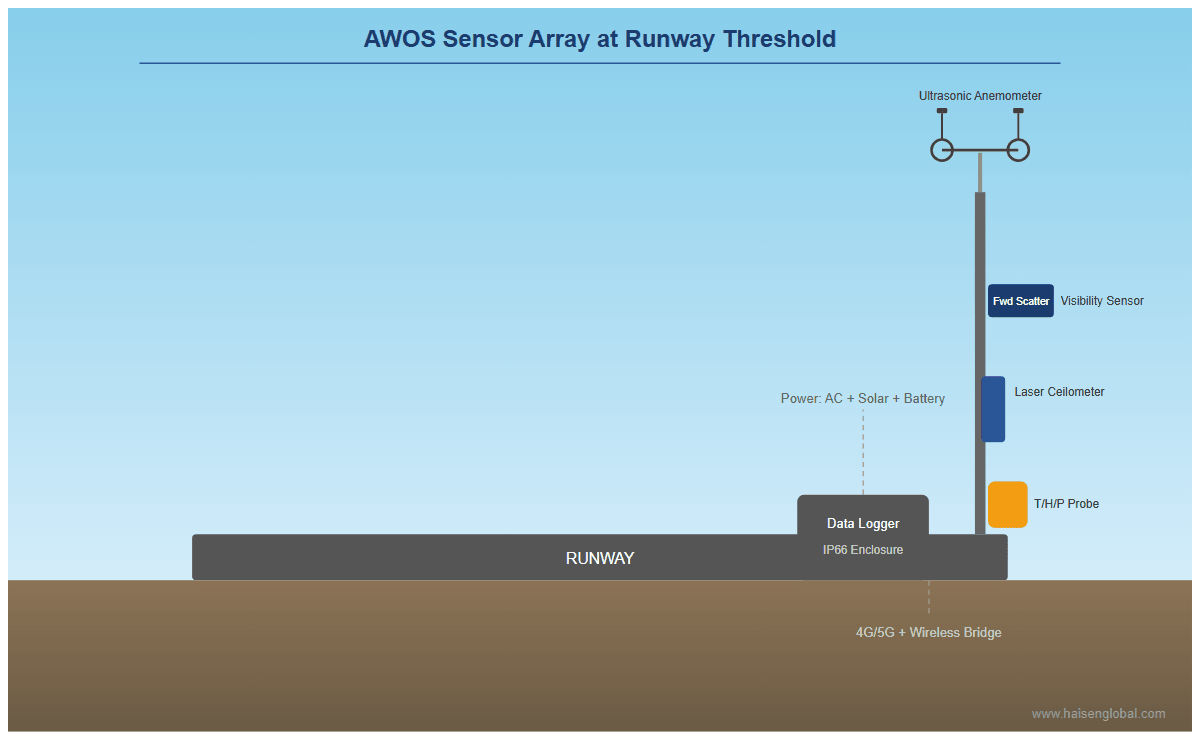

An AWOS wind sensor typically combines an ultrasonic anemometer with a wind vane. Ultrasonic anemometers measure wind speed by calculating the time-of-flight difference of ultrasonic pulses between paired transducers. The measurement principle—transit-time ultrasonic flow measurement—delivers accuracy of +/-0.5 m/s from 0-75 m/s range, with no moving parts to maintain.
Wind direction is measured via a potentiometric or optical encoder vane with +/-3 degree accuracy. The sensor outputs a two-minute rolling average wind speed and direction, plus peak gust data over the preceding 10 minutes—exactly what pilots need for crosswind component calculations. The sensor head is heated to prevent ice accumulation, a critical feature for airports in continental climate zones where freezing conditions occur for months each year.
For emerging-market airports, Haisen specifies ultrasonic sensors without mechanical bearings. Bearing-based anemometers fail predictably in dusty environments—and airports in Central Asia's steppe regions or West Africa's Harmattan season see particulate concentrations that destroy conventional mechanical bearings within six months. Ultrasonic sensors have demonstrated Mean Time Between Failures (MTBF) exceeding 50,000 hours in these conditions.
Visibility—technically, Meteorological Optical Range (MOR)—is measured using a forward scatter sensor. The sensor emits a focused beam of near-infrared light (typically 850nm wavelength) into a measurement volume. Particles in the air—water droplets, dust, smoke, haze—scatter this light. A receiver, positioned at a forward scatter angle of approximately 33-45 degrees from the beam axis, detects the scattered light intensity.
The ratio of scattered to transmitted intensity correlates directly with the atmospheric extinction coefficient, which converts mathematically to visibility range using Koschmieder's Law: MOR = -ln(0.05) / sigma, where sigma is the extinction coefficient. A high-quality forward scatter sensor achieves accuracy of +/-10% from 10m to 10km range, and +/-15% from 10km to 75km.
Forward scatter sensors offer dramatic advantages over the older transmissometer technology. Transmissometers require a transmitter and receiver separated by a baseline of 50-75 meters—a physical footprint impossible at many constrained airport sites. Forward scatter sensors occupy less than 1 square meter and mount on a single mast. They also require no alignment maintenance, whereas transmissometer alignment drifts with foundation settling and thermal expansion.
1.3 Cloud Height: Laser Ceilometry
Cloud base height—ceiling—is the single most critical parameter for instrument approach decisions. A laser ceilometer uses LIDAR (Light Detection and Ranging) principles: a pulsed diode laser emits vertically at 905-910nm wavelength, and the time-of-flight of backscattered photons from cloud droplets determines cloud base height with an accuracy of +/-10m or +/-1% (whichever is greater).
Modern ceilometers can report up to five cloud layers simultaneously, with a measurement range extending to 12 kilometers (40,000 feet)—well above commercial aviation cruising altitudes. The sensor also reports vertical visibility during fog or precipitation conditions when individual cloud layers cannot be discriminated, and it provides a sky condition assessment (clear, few, scattered, broken, overcast) based on the fractional cloud coverage detected over a rolling 30-minute window.
The ceilometer's backscatter profile provides bonus functionality beyond cloud detection: it serves as a vertical aerosol profiler, detecting dust layers, smoke plumes, and volcanic ash concentrations—capabilities increasingly valued by atmospheric research programs and volcanic ash advisory centers.
1.4 Temperature, Humidity, Pressure: The Fundamental Triad
Temperature and relative humidity are measured inside a naturally aspirated or fan-aspirated radiation shield. The shield prevents direct solar radiation from heating the sensor elements—without it, daytime temperature readings can be biased upward by 2-5 degrees Celsius. The platinum resistance thermometer (PRT) achieves +/-0.1 degrees Celsius accuracy, while the capacitive humidity sensor delivers +/-3% RH accuracy from 0-100% RH.
Barometric pressure is measured using a solid-state capacitive or piezoresistive sensor with +/-0.3 hPa accuracy. Pressure is reduced to sea level using the standard ICAO atmosphere model: QNH = QFE x exp(g x H / (R x T)). This QNH value is what pilots set on their altimeters for correct altitude indication relative to sea level.
Present weather detection—an AWOS IV capability—uses a combination of forward scatter signal analysis (differentiating rain from drizzle from snow based on particle size and fall velocity distributions) and a capacitive precipitation sensor. The system discriminates between drizzle, rain, snow, hail, and freezing precipitation, reporting intensity as light, moderate, or heavy.

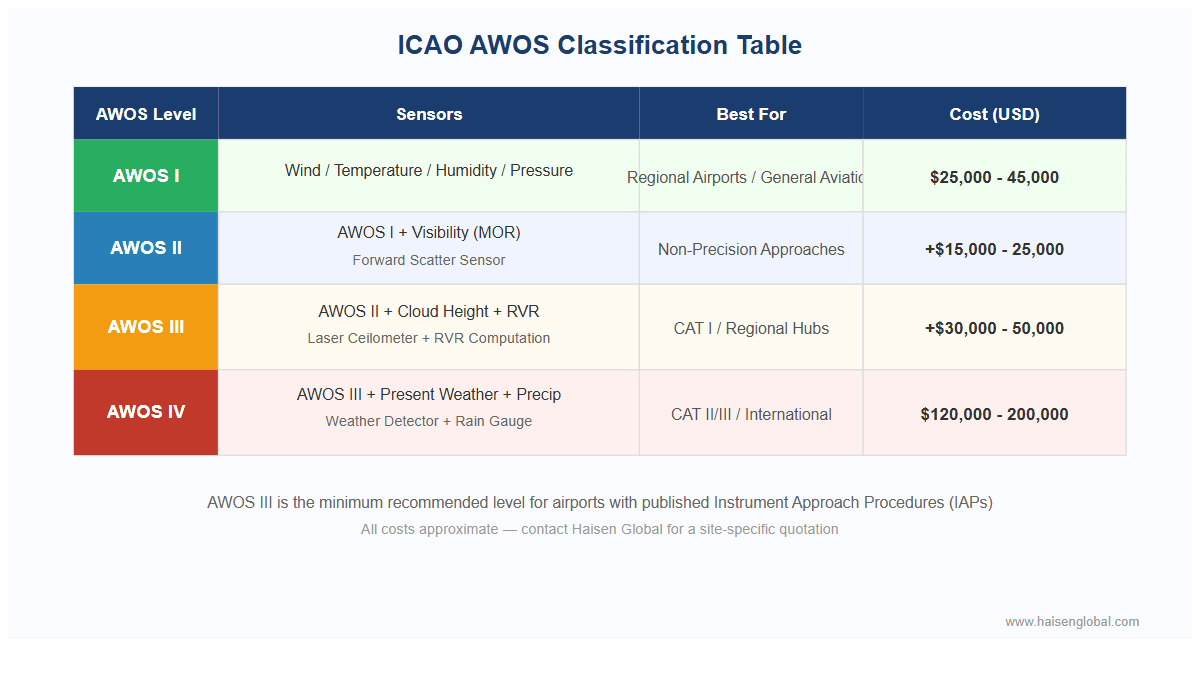

Part 2: ICAO AWOS Classification — AWOS I Through AWOS IV
2.1 AWOS I — Entry Level
AWOS I provides wind speed and direction, temperature, dew point (calculated from temperature and humidity), and barometric pressure (QNH/QFE). This is the minimum configuration for any airport supporting scheduled commercial operations. AWOS I is suitable for small regional airports, general aviation airfields, and heliports. Typical system cost: $25,000-45,000 USD for sensor hardware plus mast and enclosure.
2.2 AWOS II — Adding Visibility
AWOS II adds visibility (MOR) measurement via forward scatter sensor. This capability is essential for any airport where fog, haze, or dust storms occur—which means virtually every airport outside arid desert regions. AWOS II enables the airport to provide RVR-equivalent visibility data for non-precision approaches. System cost increment over AWOS I: $15,000-25,000 USD.
2.3 AWOS III — Cloud Height and RVR

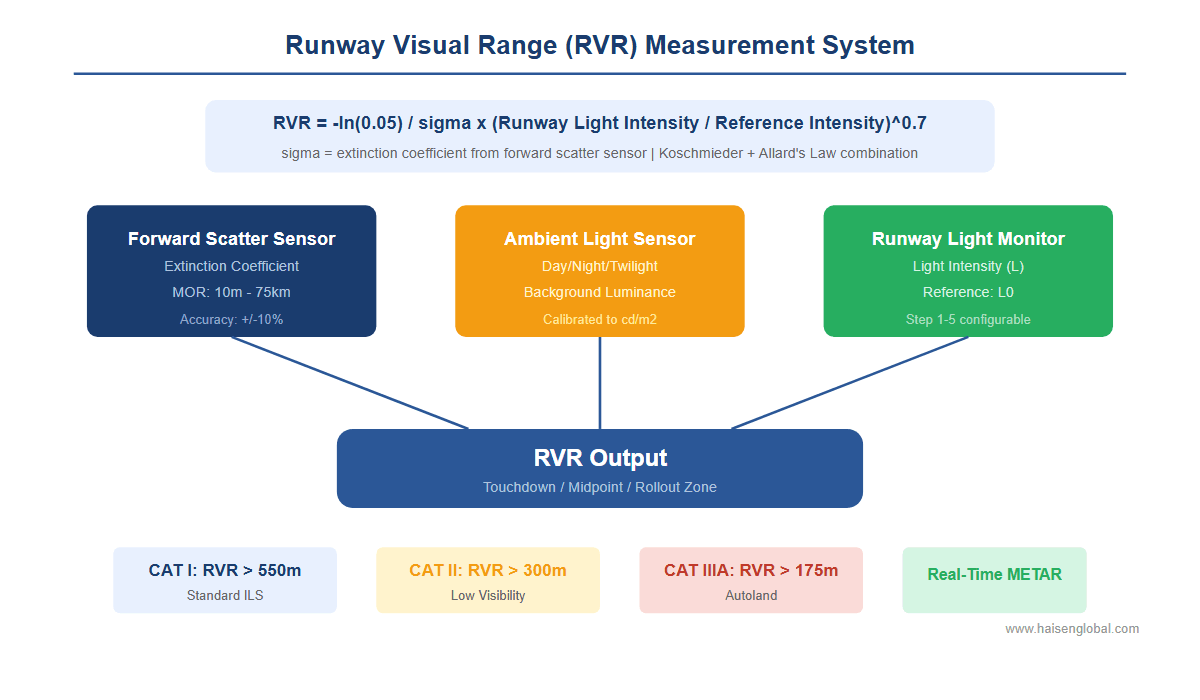

AWOS III adds cloud height measurement via laser ceilometer and Runway Visual Range (RVR) calculation. RVR is the distance a pilot can see down the runway from the approach end, taking into account visibility, ambient light level, and runway light intensity. AWOS III is the minimum configuration for airports supporting CAT I instrument approaches. System cost increment over AWOS II: $30,000-50,000 USD mainly for the ceilometer.
RVR deserves special attention. It is not the same as MOR. The formula for RVR in daytime conditions is: RVR = -ln(0.05) / sigma x (L / L0)^0.7, where L is the runway light intensity and L0 is the reference intensity. At night, a different psychophysical threshold applies. An AWOS III system computes RVR automatically using the forward scatter sensor's extinction coefficient, a photometric ambient light sensor, and known runway lighting configuration data.
AWOS IV adds present weather identification and precipitation accumulation. This is the gold standard for international airports, regional hubs, and any airport supporting CAT II/III approaches. AWOS IV provides the complete meteorological picture: wind, visibility, cloud layers and ceiling, temperature, humidity, pressure, present weather type and intensity, and precipitation accumulation. System cost: $120,000-200,000 USD for a fully instrumented single-runway configuration.
2.5 Selection Guidance: Matching AWOS Level to Airport Type
A practical decision framework: If your airport handles fewer than 50 commercial movements per day and has no instrument approaches, AWOS I or II may suffice. If you have an instrument approach procedure (IAP) published—any IAP—you need AWOS III at minimum. If you handle over 100 movements per day and expect to attract scheduled international carriers, AWOS IV is the standard those carriers will expect to see in your NOTAMs and METARs before committing their aircraft to your approaches.
Part 3: Deployment Considerations for Emerging-Market Airports
3.1 Power Reliability
At airports in the developing world, grid power cannot be assumed continuous. Haisen AWOS systems specify a dual-redundant power architecture: primary AC mains supply (110-240V, 50/60Hz) with automatic transfer to a deep-cycle battery bank sized for 96-hour autonomy. Solar charging via a 200W photovoltaic array maintains the battery bank during extended outages. The system monitors battery state-of-charge and reports via SNMP to the airport's network management system.
The entire sensor suite draws less than 150W continuous—approximately the consumption of two incandescent light bulbs. This low power footprint, combined with solar charging, makes indefinite off-grid operation feasible at remote airstrips where extending the electrical grid would cost more than the AWOS itself.
3.2 Communications Infrastructure
Where fiber optic or copper Ethernet cannot reach the sensor locations—a common constraint at airports built on legacy infrastructure—Haisen provides integrated 4G/5G cellular modems and point-to-point wireless bridges operating in the 5.8 GHz unlicensed band with ranges up to 15 km line-of-sight. For truly remote deployments, Iridium satellite communications provide low-bandwidth data relay at 15-minute intervals, sufficient for METAR generation even when all terrestrial links fail.
3.3 Environmental Durability
Operating temperature range spans -40 to +60 degrees Celsius. The lower bound covers Central Asian winters; the upper bound covers Middle Eastern and sub-Saharan summers. Sensor-specific protections include hydrophobic coatings on forward scatter sensor lenses (to prevent water droplet adhesion that would bias visibility readings) and heated anemometer transducer faces (to prevent ice accumulation at sub-zero temperatures).
3.4 Maintenance and Support
The single greatest risk to AWOS reliability in emerging markets is not component failure—it is the absence of trained maintenance personnel. Haisen addresses this through a multi-layered support model. Layer 1: Built-in self-test (BIST) that runs on every sensor at power-on and continuously monitors critical parameters. Layer 2: Remote diagnostics accessible via web interface or SNMP, allowing Haisen support engineers to diagnose problems without traveling to the site. Layer 3: Modular design where every sensor head, power supply, and communication module is field-replaceable using a single tool and color-coded connectors. Layer 4: Annual preventive maintenance visits with calibration traceable to national standards.
Part 4: The Business Case — ROI Analysis
4.1 Direct Cost Savings
An ICAO study analyzed weather-related diversions at 50 regional airports before and after AWOS III deployment. Average results: diversions decreased by 67% in the first year post-deployment. With an average diversion cost of $12,000 per event (fuel, crew overtime, passenger care, repositioning), an airport experiencing 30 weather-related diversions annually saves $241,000 per year after AWOS deployment. The AWOS III system cost of approximately $100,000 USD achieves payback in under 5 months.
Additional savings accrue from reduced insurance premiums. Aviation insurers increasingly factor AWOS capability into airport liability premiums. Airports with ICAO-compliant AWOS III or IV systems typically see premium reductions of 8-15% compared to airports relying on manual observations—representing $15,000-50,000 annually depending on airport size and traffic volume.
AWOS enables instrument approaches under low-visibility conditions that would otherwise force diversions or cancellations. Each additional operational hour per year—each landing that would have diverted—generates landing fees, passenger facility charges, fuel sales, and concession revenue. A single additional daily landing at a regional airport generates approximately $75,000-150,000 annually in airport revenue, depending on aircraft size and passenger load factors.
Furthermore, ICAO-compliant AWOS is increasingly a prerequisite for international carriers to add a destination to their route networks. Airlines evaluate destination airports against safety criteria including weather observation capability. AWOS IV capability can be the differentiating factor when a carrier chooses between two competing regional airports for its next route expansion.
4.3 Regulatory Compliance Value
ICAO Annex 3—Meteorological Service for International Air Navigation—mandates that Contracting States provide meteorological service meeting specified standards. While implementation varies by State, the direction of regulatory evolution is unmistakable: automated systems are becoming the expected baseline, and manual-only airports will increasingly face operational restrictions. Investing in AWOS today positions the airport ahead of regulatory curve rather than scrambling to comply when new requirements take effect.
Part 5: AWOS Procurement and Implementation Roadmap
5.1 Pre-Procurement Phase (Months 1-3)
Conduct a site survey documenting: prevailing wind directions (to position the anemometer outside turbulence zones from buildings and terrain), line-of-sight from proposed ceilometer location to approach paths (obstructions within 30 degrees of vertical degrade ceiling measurements), power availability at each sensor location, and communications paths to the ATC tower and meteorological office. Engage with the national civil aviation authority to confirm AWOS level requirements for existing and planned instrument approach procedures.
5.2 Procurement Phase (Months 3-6)
Develop technical specifications referencing: ICAO Annex 3 and Doc 9837 (Manual on Automatic Meteorological Observing Systems), WMO No. 8 (Guide to Meteorological Instruments), applicable national regulations. Specify required AWOS level, sensor accuracies, data output formats (METAR/SPECI auto-generation capability), communications interfaces, and maintenance/support requirements. Evaluate bids against total cost of ownership over 10-year lifecycle, not purchase price alone.
5.3 Implementation Phase (Months 6-9)
Civil works: concrete pads for each sensor mast (minimum 1.5m x 1.5m x 0.5m depth), power and communications conduit (minimum 50mm diameter with pull strings), grounding system (less than 10 ohms resistance to earth). Sensor installation, alignment, and cabling: typically 2-3 weeks. Commissioning: 2 weeks of continuous operation verification, calibration checks against portable reference standards, data comparison against existing observation methods, and operator training.
5.4 Operational Phase (Month 9 onwards)
Go-live with parallel running period of 30 days (manual observations continue alongside automated data). After parallel running validation, transition to AWOS as primary meteorological data source. Establish routine calibration schedule (annual for pressure and temperature sensors, semi-annual for humidity, quarterly for ceilometer alignment verification). Implement METAR/SPECI auto-generation using the AWOS data stream, with human quality control override capability.
Haisen Global AWOS systems are purpose-built for the operational realities of emerging-market airports. Every component is selected for reliability in challenging environments: ultrasonic anemometers with no moving parts for dust resistance, IP66-rated enclosures for tropical humidity, 96-hour battery autonomy for power-unreliable sites, and integrated 4G/5G/satellite communications for sites without terrestrial network infrastructure.
Our AWOS deployments across over 200 airports in Africa, the Middle East, Central Asia, and Latin America have demonstrated Mean Time Between Failures exceeding 30,000 hours, system availability exceeding 99.5%, and compliance with ICAO accuracy standards verified by independent calibration laboratories. Each deployment includes comprehensive operator training—conducted on-site in the local language—and 24/7 remote technical support from our engineering team.
For airport operators evaluating an AWOS investment, we offer site survey support, technical specification assistance, and a detailed total-cost-of-ownership analysis specific to your airport's location, climate, traffic volume, and regulatory environment. Contact our aviation systems team at info@haisenglobal.com or visit www.haisenglobal.com to request a consultation and quotation.
FAQ Section — People Also Ask Optimization
What is the difference between AWOS I, II, III, and IV?
AWOS I measures wind, temperature, humidity, and pressure. AWOS II adds visibility measurement. AWOS III adds cloud height (ceilometer) and Runway Visual Range computation. AWOS IV adds present weather identification and precipitation accumulation. AWOS III is the minimum recommended for airports with instrument approach procedures.
How much does an AWOS system cost?
AWOS I systems range from $25,000-45,000. AWOS II adds $15,000-25,000. AWOS III adds $30,000-50,000. A complete AWOS IV system for a single runway typically costs $120,000-200,000 including all sensors, data processing, and display equipment. Installation, civil works, and commissioning add 20-30% to hardware costs.
What is the difference between AWOS and ASOS?
AWOS (Automated Weather Observing System) is the international ICAO term. ASOS (Automated Surface Observing System) is the U.S. NWS/FAA specific implementation. Functionally similar, ASOS adds freezing rain detection and thunderstorm reporting capabilities that standard AWOS may not include. Haisen AWOS IV systems provide equivalent capability to ASOS.
How is RVR calculated from AWOS data?
RVR = -ln(0.05) / extinction_coefficient x (runway_light_intensity / reference_intensity)^0.7. The AWOS computer uses the forward scatter sensor extinction coefficient, an ambient light sensor, and known runway lighting data to compute RVR automatically. Separate RVR values are computed for touchdown, midpoint, and rollout zones.
Can AWOS generate METAR reports automatically?
Yes. AWOS III and IV systems auto-generate METAR and SPECI reports in WMO FM-15 code format. The system computes prevailing visibility, identifies significant cloud layers, selects the appropriate present weather codes, and formats the complete METAR string for transmission via AFTN or direct upload to national meteorological service servers.
Conclusion
An Aviation Weather Observation System is not merely instrumentation—it is the foundation of safe, reliable, and economically viable airport operations. For airports in emerging markets, AWOS deployment represents one of the highest-return safety investments available: typical payback periods under six months through diversion reduction alone, with ongoing benefits in safety enhancement, regulatory compliance, insurance cost reduction, and route development competitiveness.
With over 200 airport deployments and a product line spanning AWOS I through AWOS IV, Haisen Global is the partner of choice for airport operators seeking ICAO-compliant, environmentally hardened, and cost-effective weather observation solutions. Our commitment to each deployment extends through the full equipment lifecycle, from site survey through installation, commissioning, training, and ongoing technical support.
