1. What Is a Transmissometer?

A transmissometer is an optical instrument that measures how much light survives a known path through the atmosphere. A transmitter projects a collimated beam across a fixed baseline — typically 75 metres for aviation-grade units — and a receiver at the far end measures the fraction of light that arrives. From that transmittance value, the instrument derives the atmospheric extinction coefficient and, ultimately, the runway visual range (RVR) that pilots see on approach.

An airport weather observation system transmissometer is a fixed-baseline optical sensor that measures atmospheric transmittance directly over a known path length to derive the extinction coefficient and meteorological optical range (MOR), which forms the primary input to runway visual range (RVR) calculation for low-visibility approach and landing operations.

Because the transmissometer measures transmittance directly, rather than inferring visibility from scattered light, it produces the most physically defensible measurement of how far a pilot can actually see through fog, haze, rain, or snow. That is why the instrument has remained the reference standard for RVR measurement for more than seven decades, and why it is the technology of choice wherever an airport must support Category II or Category III precision approaches.

2. Why Transmissometers Matter in the Airport Weather Observation System

Runway visual range — not general visibility — decides whether an aircraft may legally begin an approach. General meteorological visibility is measured at a single observation point and averaged over the surrounding area. RVR, by contrast, is measured at specific points along the runway and tells a pilot exactly how far they can see down the runway from the cockpit. The two numbers frequently diverge.

Consider a fog bank sitting over the touchdown zone while the rest of the airfield enjoys two kilometres of visibility. The routine weather report may state 'visibility 2,000 metres', yet the RVR at the critical threshold could read 350 metres — below the minimum for a Category I approach. This gap is precisely why the International Civil Aviation Organization requires instrumented RVR equipment at precision-approach runways, and why the transmissometer is embedded as a core sensor in the airport weather observation system.

The safety and economic consequences are direct. At a fog-prone hub, every metre of usable low-visibility capacity translates into flights that land instead of diverting, and into fewer costly diversions and delays. Accurate, continuous RVR is therefore both a safety system and a capacity-management tool, and the transmissometer is the instrument that supplies it.

3. How a Transmissometer Measures RVR: The Physics

The measurement chain has three stages: transmittance, extinction, and RVR.

3.1 From Transmittance to Extinction Coefficient

When light travels a distance L through the atmosphere, its intensity falls according to the Beer–Lambert law: T = exp(−σ·L), where T is the transmittance and σ is the extinction coefficient. Because the baseline L is known and T is measured, the transmissometer computes σ directly: σ = −ln(T) / L. The extinction coefficient is the fundamental physical quantity describing how strongly the atmosphere attenuates light.

3.2 From Extinction to Meteorological Optical Range

Meteorological optical range (MOR) is defined as the distance over which a collimated beam of light is attenuated to 5% of its original intensity. Since exp(−σ·MOR) = 0.05, it follows that MOR ≈ 3 / σ. This is the internationally standardized definition used across automated weather observing systems, and it is the value reported by the transmissometer.

A closely related quantity is meteorological visibility, based on the Koschmieder relationship and a 2% contrast threshold: V = 3.912 / σ. The distinction between the 5% (MOR, factor ≈ 3.0) and 2% (visibility, factor ≈ 3.912) thresholds is small numerically but important in practice, because aviation reporting and regulatory standards are written around specific definitions. A well-designed system keeps these definitions explicit and traceable.

3.3 From MOR to Runway Visual Range

RVR is not simply MOR converted to a distance. The ICAO RVR algorithm combines atmospheric transmittance with two additional inputs: the intensity of the runway lighting (edge, threshold, and centreline lights) and the ambient background luminance (day, twilight, or night). The result reflects the real visual acquisition range of runway markings and lights — what a pilot on the centreline would actually see — rather than an abstract visibility figure. That is why a transmissometer installation is typically paired with a background luminance sensor to complete the RVR computation.

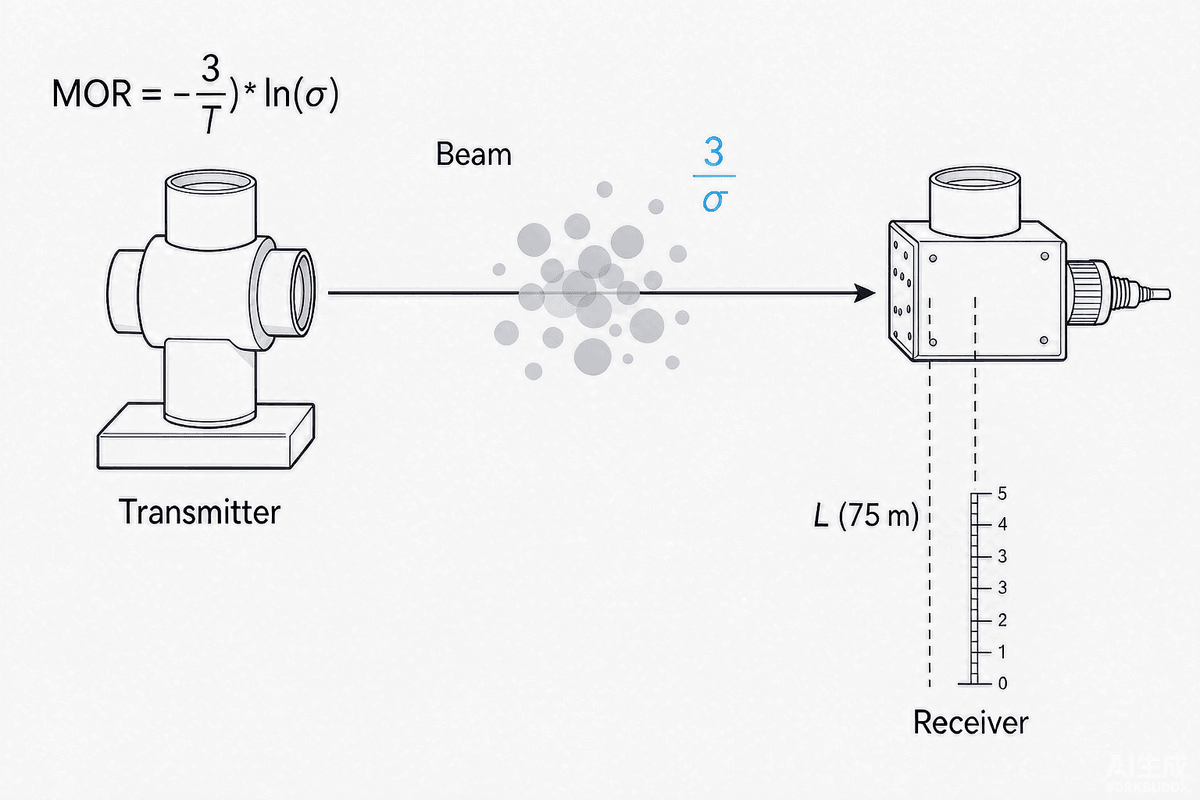

Figure 2 — Measurement principle: a collimated beam is attenuated along baseline L by fog and aerosol particles; transmittance T yields the extinction coefficient σ, and MOR ≈ 3/σ.

4. Transmissometer vs. Forward Scatter Meter

Airports me

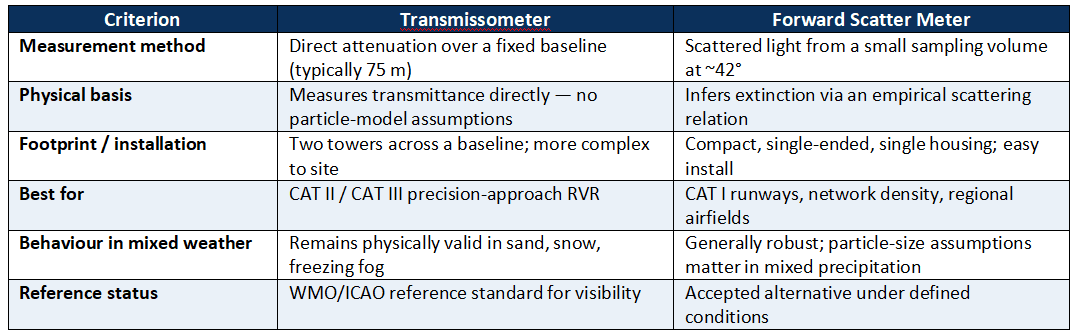

asure visibility with one of two optical technologies: the transmissometer (path-integrated attenuation) or the forward scatter meter (small-volume scattering). Both derive MOR, but they differ in physics, footprint, and the operational category they best serve.

The practical guidance is straightforward: for Category II and III operations — or airports planning to upgrade to them — the transmissometer is the reference-grade choice. Forward scatter meters remain cost-effective for Category I runways and for increasing sensor network density. Many airports deploy both, using transmissometers at the precision runway and forward scatter meters elsewhere in the network.

5. Key Technical Specifications

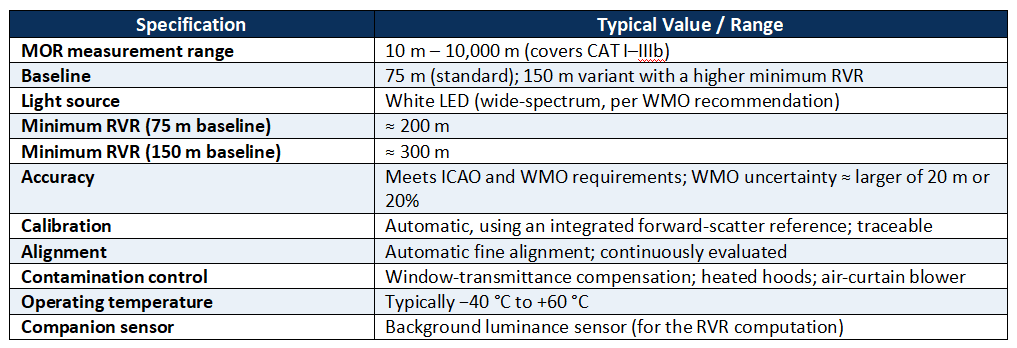

Modern aviation transmissometers share a common performance envelope. The following specifications are representative of reference-grade systems:

Representative reference product: Vaisala LT31 transmissometer — a single-baseline system covering the full CAT I–IIIb range.

6. ICAO and WMO Standards: Accuracy and Reporting Requirements

Transmissometer performance and RVR reporting are governed b

y an international framework:

• ICAO — Annex 3, Meteorological Service for International Air Navigation, requires instrumented RVR at precision-approach runways and defines how RVR is reported and used in approach minima.

• ICAO Doc 9328 — Manual of Runway Visual Range Observing and Reporting Practices, specifies calibration and siting practice for RVR systems.

• WMO — Guide to Instruments and Methods of Observation (CIMO Guide, WMO-No. 8), lists the transmissometer as the reference standard for visibility measurement, with a measurement uncertainty of the larger of 20 m or 20%.

RVR is reported in defined steps: 25 metres when the value is below 400 m, 50 metres between 400 m and 800 m, and 100 metres above 800 m. Values that do not fit the reporting scale are rounded down to the nearest step. This standardization ensures that a reported RVR means the same thing at every airport, in every country.

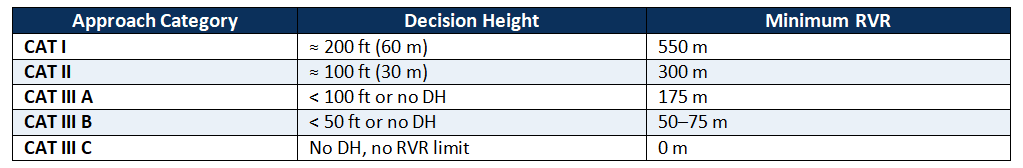

6.1 RVR Minima by Approach Category

The lower the minima, the more accurate and reliable the RVR measurement must be. This is why Category III operations demand transmissometer-grade performance, redundant critical functions, and rigorous calibration traceability.

7. RVR Measurement Positions: Touchdown, Mid-point, and Stop-end

A single visibility reading cannot represent an entire runway, especially when fog is patchy. ICAO practice therefore places RVR sensors at up to three positions along the runway:

· Touchdown zone (TDZ) — near the approach threshold; the value most directly relevant to the landing decision, and the one reported in METAR/SPECI.

· Mid-point (MID) — midfield; captures conditions where an aircraft may need to arrest a rollout.

· Stop-end (END) — near the rollout end; supports rejected-take-off and landing-rollout decisions.

Each position has its own transmissometer baseline and background luminance sensor, and each computes its own RVR. Controllers use all three to build a complete picture of runway visibility, while the routine weather report publishes the touchdown-zone value.

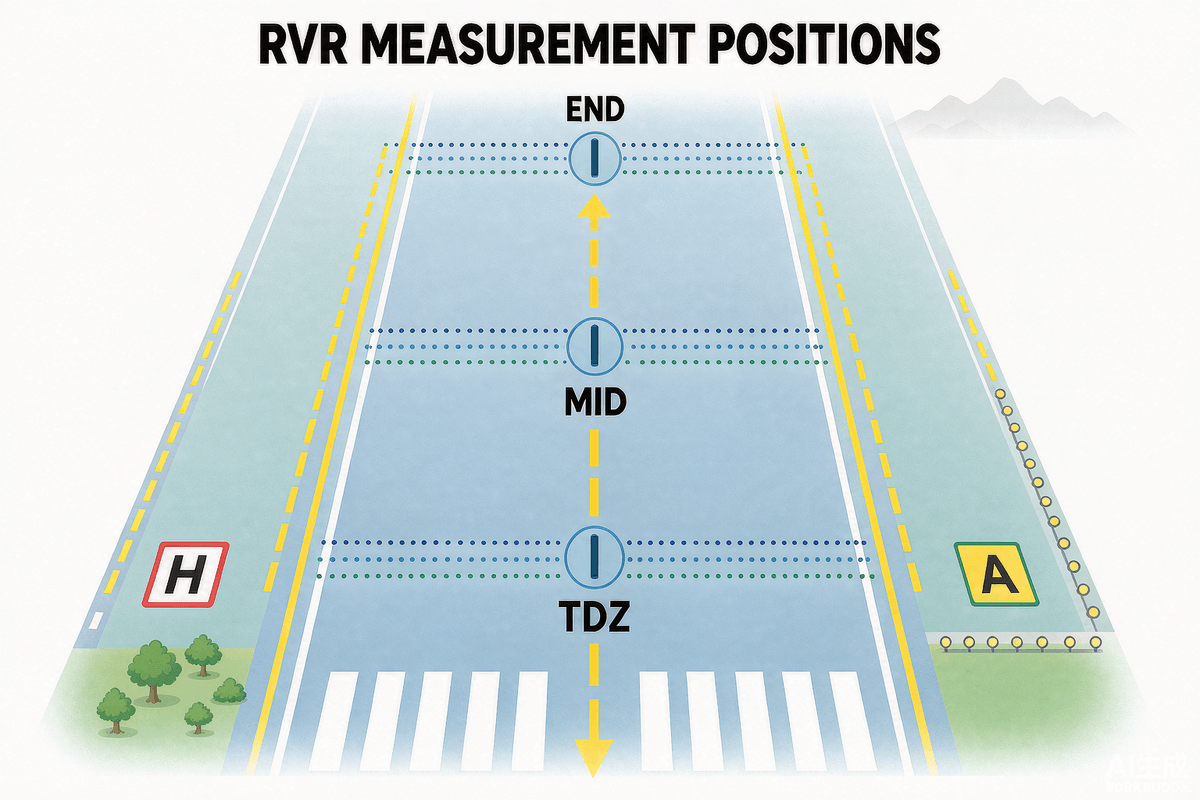

Figure 3 — RVR measurement positions along a runway: touchdown zone (TDZ), mid-point (MID), and stop-end (END), each with its own transmissometer baseline.

8. Deployment, Siting, and Maintenance Best Practices

A transmissometer is only as reliable as its installation and upkeep. The most common error sources are alignment drift, window contamination, and inadequate calibration — all of which modern systems address through automation.

· Baseline and siting — install the beam at a height and orientation representative of the pilot's view, clear of jet blast and standing water, with the baseline perpendicular to the prevailing wind where practical.

· Alignment — use automatic fine alignment with continuous evaluation; a double-mast construction shields the optics from thermal and wind stress.

· Window contamination — rely on direct window-transmittance compensation and heated hoods; add an air-curtain blower where wind-driven dust or snow is common.

· Calibration — prefer automatic calibration against an integrated forward-scatter reference, which does not require perfect visibility or a human observer.

· Redundancy — duplicate critical functions and provide backup power so RVR data continues through short outages.

These measures matter because a drifting or contaminated transmissometer can bias RVR by tens of metres — enough to change whether an approach is legal.

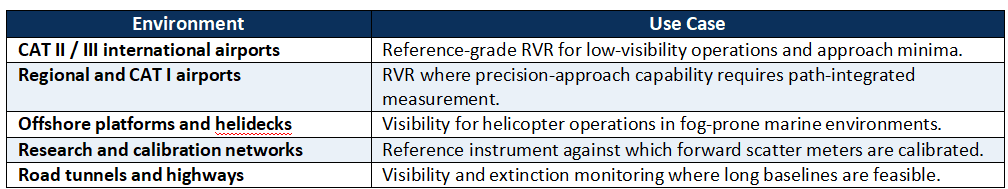

9. Applications Across Aviation and Beyond

10. Market and Technology Trends

Demand for visibility and RVR instrumentation is growing in step with global air-traffic volumes and airport modernisation. Several technology trends are shaping the sector:

· Automation of calibration and alignment — reducing human workload and improving traceability.

· Integrated present-weather sensing — combining RVR with precipitation type and intensity at the same site.

· Digital, IP-connected sensors — feeding RVR data directly into air-traffic-management and runway-management systems.

· Hybrid and dual-technology sites — transmissometers for reference RVR, forward scatter meters for network density.

· Emphasis on lifecycle cost — self-diagnostics and low-maintenance optics reduce total cost of ownership.

For airports, the implication is clear: choose a transmissometer platform that is standards-compliant, self-diagnosing, and designed for a long service life, so that RVR capability does not become a bottleneck as operations grow.

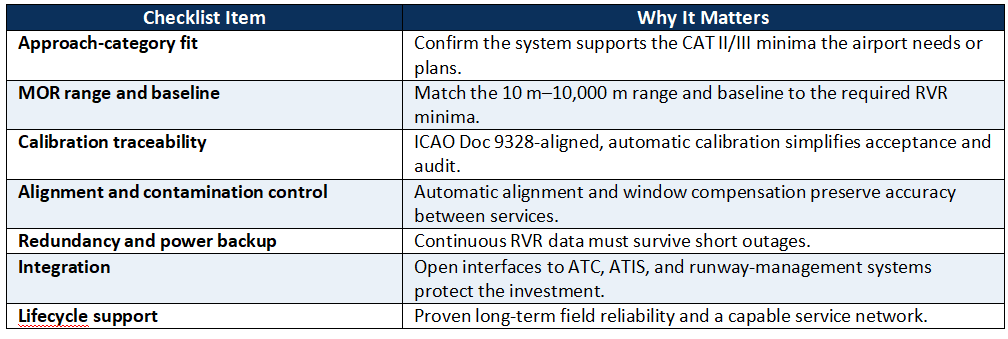

11. Selecting a Transmissometer: Buyer's Checklist

A transmissometer rarely operates in isolation. In a modern airport weather observation system, it is one node in an integrated chain that runs from the optical sensor to the controller's display and the pilot's headset. Understanding that chain is essential to getting value from the instrument.

The signal path begins at the receiver, where transmittance is converted into an RVR value by a signal data converter that also ingests runway light-step settings and background luminance. The resulting RVR is displayed in the air traffic control facility, updated roughly once per minute, and transmitted to pilots through ATIS, VOLMET, or controller voice. In parallel, the system composes the routine METAR/SPECI groups that are published internationally.

Integration also shapes redundancy. Critical functions — the data converter, power supply, and communications — are typically duplicated so that RVR data survives a single failure. The transmissometer may be paired with a present-weather sensor and a forward scatter meter at the same site, giving forecasters and controllers a complete, cross-checked picture of conditions rather than a single number. When the airport's runway-management software ingests these feeds, friction, visibility, and weather data combine into one operational view — which is precisely what a smart-airport weather system is designed to deliver.

13. Calibration, Traceability, and Failure Prevention

Accuracy claims mean little without traceability. A transmissometer used for official reporting must be calibrated against a reference that ultimately traces to national metrology standards, following the practice set out in ICAO Doc 9328. This is what allows an RVR value measured at one airport to be trusted at another.

Modern systems have transformed calibration from a skilled manual ritual into an automated process. Rather than waiting for perfect visibility and a trained observer, an integrated forward-scatter reference continuously detects drift and adjusts the transmissometer's settings, recognising suitable conditions on its own. Automatic fine alignment performs the same service for optical alignment, which is one of the largest error sources in transmittance measurement. Together, these functions keep the instrument honest between formal service intervals.

Failure prevention then becomes a matter of managing the handful of things that actually go wrong. Window contamination from precipitation and dust is the most common; it is countered by direct window-transmittance compensation, heated hoods, and an air-curtain blower for wind-driven weather. Alignment drift is handled by continuous evaluation and automatic correction. Power and communications interruptions are covered by backup batteries and duplicated paths. Sophisticated self-diagnostics log warnings and alarms so that a degrading sensor is serviced before it affects published RVR.

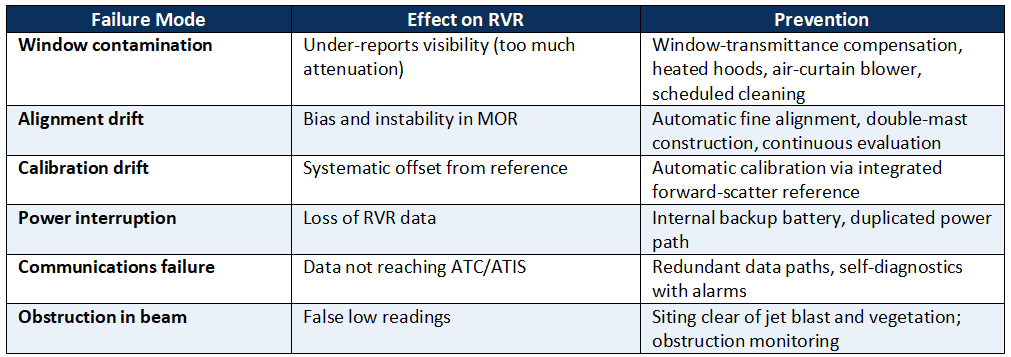

14. Common Failure Modes and How to Prevent Them

15. Frequently Asked Questions (FAQ)

What is a transmissometer and how does it measure visibility?

A transmissometer measures the fraction of light that survives a known path through the atmosphere. A transmitter projects a collimated beam across a fixed baseline (typically 75 m) to a receiver, which measures transmittance; the system then derives the extinction coefficient and the meteorological optical range (MOR ≈ 3/σ).

What is the difference between MOR and RVR?

MOR is a sensor-derived atmospheric property describing extinction, independent of lighting. RVR is an operational value computed from MOR together with runway light intensity and background luminance, estimating what a pilot on the runway centreline can actually see.

Why is a transmissometer preferred for CAT II and III operations?

Because it measures transmittance directly rather than inferring it from scattered light, it remains physically valid in mixed and extreme weather (sand, snow, freezing fog), making it the WMO/ICAO reference standard for precision-approach RVR.

What baseline does an aviation transmissometer use?

A standard 75 m baseline supports RVR down to about 200 m; a 150 m baseline variant has a higher minimum RVR (about 300 m). The baseline is chosen to match the airport's required minima.

How often must a transmissometer be calibrated?

ICAO Doc 9328 governs calibration practice, and modern systems perform automatic calibration against an integrated forward-scatter reference, continuously monitoring drift. Periodic verification against reference standards remains required.

Where are RVR sensors installed on a runway?

At up to three positions: touchdown zone (TDZ), mid-point (MID), and stop-end (END). Each has its own baseline and luminance sensor; the touchdown-zone value is the one published in METAR/SPECI.

How does a transmissometer integrate with an airport weather observation system?

Its transmittance reading is converted to RVR by a signal data converter that adds runway light-step and background-luminance inputs. The RVR is displayed in the ATC facility, broadcast via ATIS/VOLMET, and composed into METAR/SPECI reports, with critical functions duplicated for redundancy.

What does a transmissometer need to be paired with to produce RVR?

A background luminance sensor (to measure ambient light level) and knowledge of the runway light intensity step. The transmissometer supplies transmittance/MOR; the luminance sensor supplies the visual background, and together they drive the ICAO RVR algorithm.

Why is the transmissometer preferred for CAT II and CAT III operations?

Because it measures transmittance across the actual light path the pilot's eye would use, rather than inferring extinction from a small sample. That path-integrated accuracy is what the lowest RVR minima (down to 75 m for CAT IIIB) depend on.

How often does a transmissometer require calibration?

Modern instruments perform automatic calibration on a continuous or scheduled basis using internal reference attenuators, which removes routine manual calibration. Full verification against traceable standards and alignment checks are performed at regulator-defined intervals, typically annually.

What maintenance issues affect transmissometer accuracy most?

Optical-window contamination (dust, salt, ice, insects), misalignment from mast movement or ground settlement, and window-heating faults. All three are mitigated by automatic compensation, periodic alignment verification, and prompt response to contamination flags.

Can a transmissometer be used outside aviation?

Yes. The same extinction-measurement principle supports road-tunnel visibility monitoring, marine and port operations, industrial stack-plume opacity measurement, and research into atmospheric aerosol loading.

Key Takeaways

· A transmissometer measures atmospheric transmittance over a fixed baseline to derive extinction and MOR (≈ 3/σ).

· RVR combines MOR with runway light intensity and background luminance — it is an operational, not a sensor-only, value.

· The transmissometer is the WMO/ICAO reference standard and the preferred sensor for CAT II/III precision approaches.

· Standards: ICAO Annex 3, ICAO Doc 9328, and WMO CIMO Guide (uncertainty ≈ larger of 20 m or 20%).

· Automatic calibration, fine alignment, and window compensation are essential to sustained accuracy.

16. Conclusion

The transmissometer is one of the unsung pillars of low-visibility aviation. By measuring transmittance directly across a known path, it produces an RVR value that is physically grounded, standards-compliant, and reliable in the very conditions — fog, snow, sand, freezing drizzle — where accurate visibility matters most.

For any airport operating, or planning, Category II or III approaches, a reference-grade transmissometer is not a luxury but a prerequisite. Paired with automatic calibration, continuous alignment monitoring, and a modern airport weather observation system, it delivers the visibility data on which safe all-weather operations depend.
