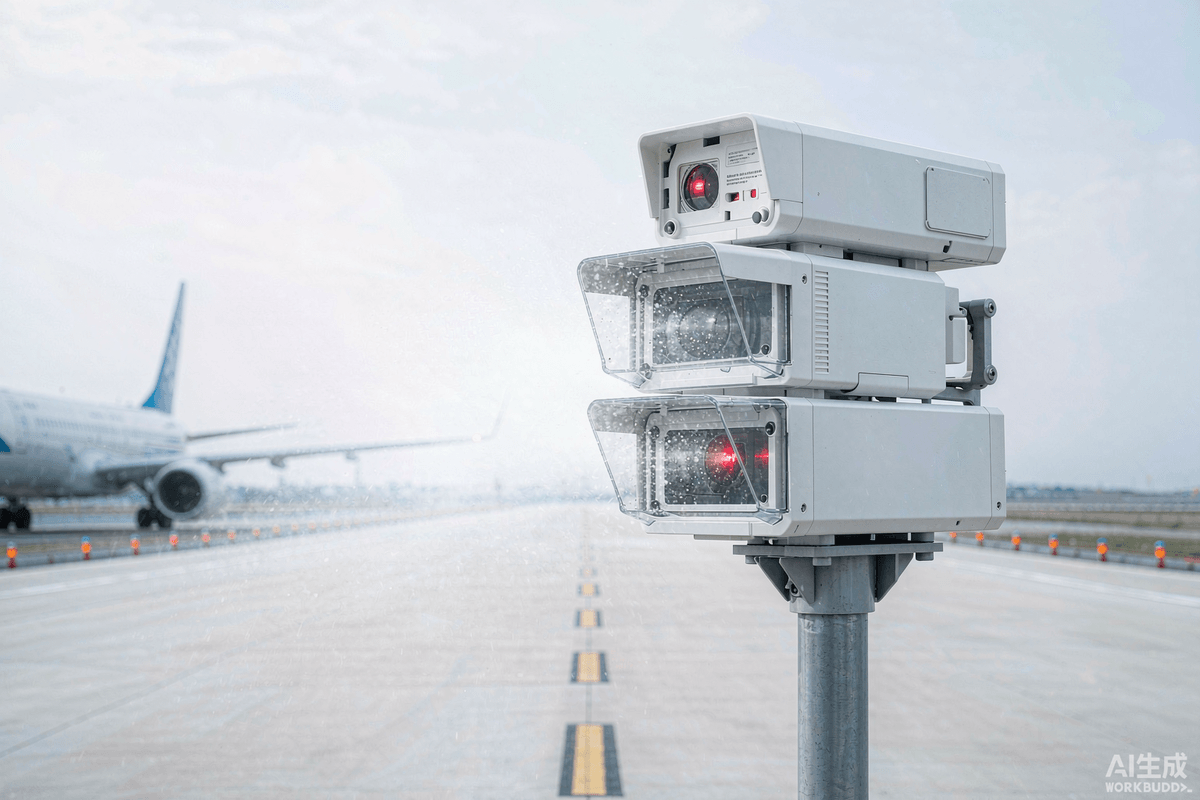

Figure 1 — A compact forward-scatter visibility sensor mounted beside a runway, measuring the light scattered by fog and aerosol in a small sampling volume.
1. What Is a Forward Scatter Meter?
A forward scatter meter is an optical instrument that estimates atmospheric visibility from the light scattered by particles in a small volume of air. An infrared or near-infrared source emits a modulated beam into a sampling volume; particles — fog droplets, mist, haze, dust, rain, or snow — scatter some of that light, and a receiver positioned at a forward angle detects the scattered intensity. From that signal, the sensor derives the extinction coefficient and the meteorological optical range (MOR).
An airport weather observation system forward scatter meter is a compact, single-ended visibility sensor that measures the light scattered from a defined sampling volume at a forward angle of about 42 degrees, derives the atmospheric extinction coefficient, and reports meteorological optical range (MOR) as the visibility input to routine weather reports and, with a background luminance sensor, to runway visual range (RVR).
Because the transmitter and receiver share a single housing with no long baseline between them, the forward scatter meter is dramatically easier to install and maintain than a transmissometer. That footprint advantage has made it the most widely deployed visibility-sensor technology in the world, forming the backbone of automated weather networks at airports, along highways, and at remote observing sites.
2. Why Visibility Measurement Matters
Visibility is one of the most operationally consequential weather parameters in aviation. It determines whether an approach may be commenced, whether a landing is legal, and how an airport sequences traffic in poor conditions. Unlike wind or temperature, visibility can change rapidly over short distances, which is why it must be measured at multiple points and reported objectively.
For an airport weather observation system, visibility data feeds three distinct processes: the routine METAR and SPECI reports published to pilots and forecasters; the special reports triggered when conditions cross defined thresholds; and the runway visual range computation that supports low-visibility operations. Each of these depends on a sensor that is accurate, stable, and continuously available.
The economic stakes are equally real. At a fog-prone airport, a visibility sensor that under-reports visibility causes unnecessary diversions and closures; one that over-reports creates a safety risk. Accurate visibility measurement is therefore both a safety requirement and a capacity-management tool — and the forward scatter meter is the instrument that delivers it at the scale modern networks demand.
3. How Forward Scatter Measurement Works
The measurement approach rests on a simple physical insight: the more particles there are in the air, the more light is scattered. By illuminating a small sampling volume and measuring how much light is scattered into a known angular cone, the sensor can estimate the extinction coefficient — the same quantity a transmissometer measures directly across a long path.
3.1 Optical Geometry
A forward scatter meter houses a light source and a detector in the same unit. The source beam and the receiver's field of view intersect in a small sampling volume a short distance in front of the instrument. The receiver sits at a forward-scattering angle — typically centred at 45 degrees, within a 39–51 degree cone — where the scattered signal is strong and relatively insensitive to exact particle shape. This geometry delivers a strong signal-to-noise ratio in both daylight and darkness.
3.2 From Scatter to Visibility
The detected scatter signal is converted to an extinction coefficient σ using a factory calibration relationship. Visibility is then derived with the Koschmieder equation, V = 3.912 / σ, while meteorological optical range uses the 5% transmittance convention, MOR ≈ 3 / σ. Modern sensors report both MOR and the extinction coefficient (often labelled EXCO) directly, and many add present-weather codes describing fog, mist, haze, rain, or snow.
3.3 Modulation and Environmental Robustness
The light source is modulated rather than continuous, which lets the receiver reject ambient sunlight and electrical noise. Combined with hood heating, window heating, and lens-contamination monitoring, this modulation is what makes a compact sensor reliable across day-night cycles and harsh climates.

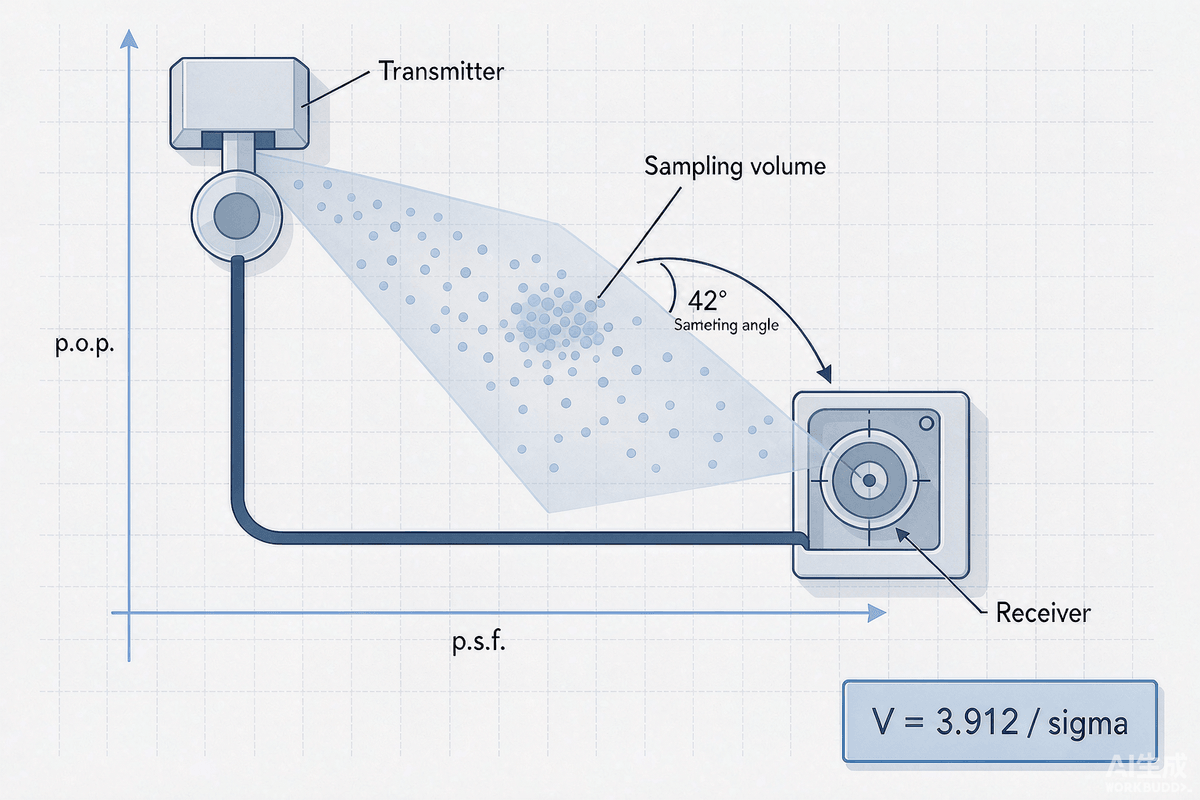

Figure 2 — Forward-scatter geometry: a modulated infrared source and a receiver share one housing; particles in the sampling volume scatter light into the receiver at ~42°, yielding the extinction coefficient and visibility.
4. Forward Scatter Meter vs. Transmissometer

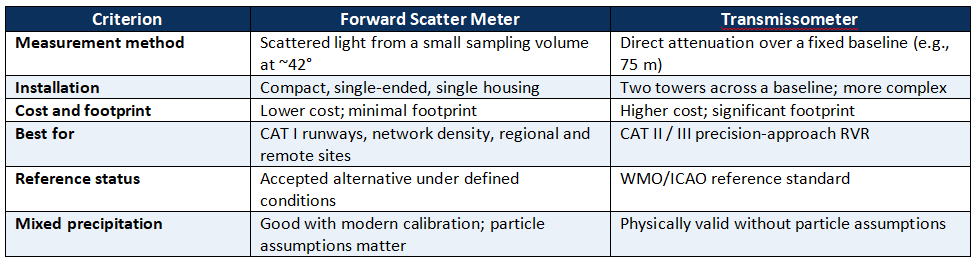

The two visibility technologies are complementary rather than competing. Choosing between them is a matter of operational category, footprint, and budget.
In practice, many airports use forward scatter meters to build a dense network of visibility observations across the airfield while reserving a transmissometer for the precision runway. This hybrid approach balances reference-grade accuracy where it is essential with cost-effective coverage everywhere else.

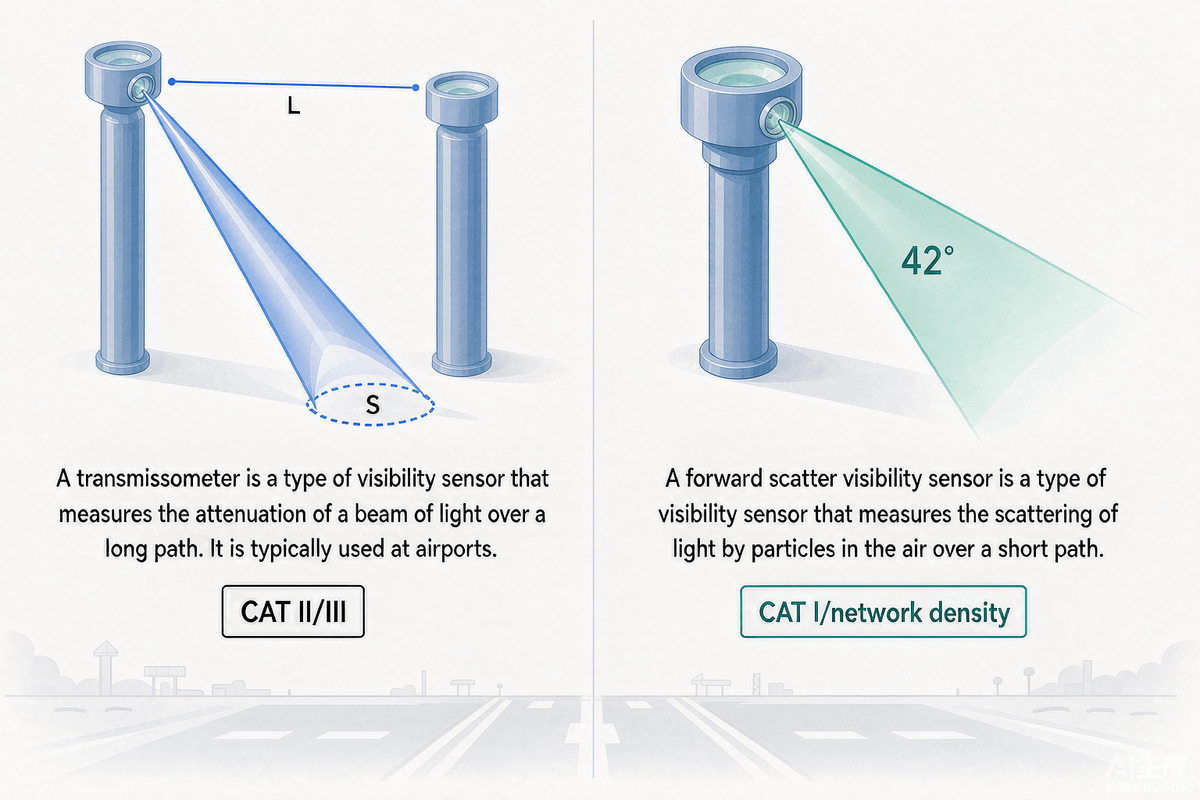

Figure 3 — Side-by-side comparison: the two-tower transmissometer (left) for CAT II/III reference RVR, and the compact forward-scatter sensor (right) for CAT I and network density.
5. Key Technical Specifications

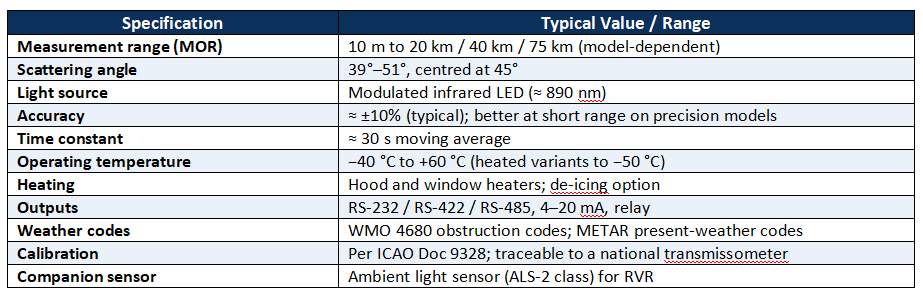

Forward scatter sensors vary in range and accuracy by model, but share a common performance envelope.The following specifications are representative of modern aviation-grade units:
Representative products: Biral VPF-710 forward-scatter sensor and Senseca SWS-050 visibility sensor.
Forward scatter meters used for aviation reporting must comply with an international standards framework:
• ICAO — Annex 3, Meteorological Service for International Air Navigation, defines the visibility and RVR reporting requirements the sensor must meet.
• ICAO Doc 9328 — Manual of Runway Visual Range Observing and Reporting Practices, sets the calibration and acceptance practice; forward scatter sensors are commonly calibrated to ICAO 9328 and made traceable to a national weather service transmissometer.
• WMO — Guide to Instruments and Methods of Observation (CIMO Guide, WMO-No. 8), chapter 12 covers visibility instrumentation, accepts forward-scatter meters as an alternative to the transmissometer reference, and specifies measurement uncertainty of the larger of 20 m or 20%.
The key compliance point is traceability. A forward scatter meter does not measure visibility directly — it infers it from scatter. To be acceptable for official reporting, its calibration must be traceable to a reference standard, typically a transmissometer operated by a national meteorological service. This is what allows a compact sensor to deliver reporting-grade data.
7. Accuracy, Limitations, and When Forward Scatter Excels
Forward scatter meters are highly capable, but understanding their limitations is part of using them well.
7.1 Strengths
· Compact, single-ended footprint — no long baseline to survey or obstruct.
· Strong signal-to-noise ratio — the 42° forward geometry keeps the signal robust in low and high light.
· Rich present-weather output — many units report WMO 4680 codes and precipitation type alongside visibility.
· Cost-effective at scale — ideal for dense networks and remote or regional sites.
7.2 Limitations
Because the sensor infers extinction from a small sampling volume, its accuracy depends on an assumed particle-size distribution. In mixed precipitation — rain with snow, blowing dust, or layered haze — the scattering relationships can diverge from the calibration assumption, and readings may differ from a path-integrated reference. The sampling volume is also a point measurement, so it cannot represent visibility variations across a long runway the way a full-baseline transmissometer can.
7.3 Where Forward Scatter Excels
For Category I runways, regional and remote airfields, heliports, and network-density deployments, these limitations are well within acceptable bounds, and the forward scatter meter delivers reporting-grade visibility at a fraction of the transmissometer's cost and complexity. Modern calibration and contamination-monitoring have narrowed the gap further, making forward scatter the default choice for most of the world's automated visibility networks.
8. Deployment and Sensor Networks
A forward scatter meter is only as good as its siting and maintenance. Because it measures a small sampling volume, placement is critical.
· Representative siting — install where the sampled air represents the runway or observation area, clear of buildings, jet blast, and local heat sources.
· Height and orientation — align with the operational need; for RVR, site near the touchdown zone with an ambient light sensor.
· Heating and contamination control — enable hood and window heating in snow and ice; use lens-contamination monitoring to schedule cleaning.
· Calibration and verification — calibrate per ICAO Doc 9328 and verify periodically against a reference transmissometer.
· Network design — deploy multiple sensors to capture spatial variability; a single point sensor cannot represent an entire airfield.
In a well-designed network, forward scatter meters are spaced to capture the minimum visibility across the monitored area, with a transmissometer providing the reference anchor where precision approaches demand it.

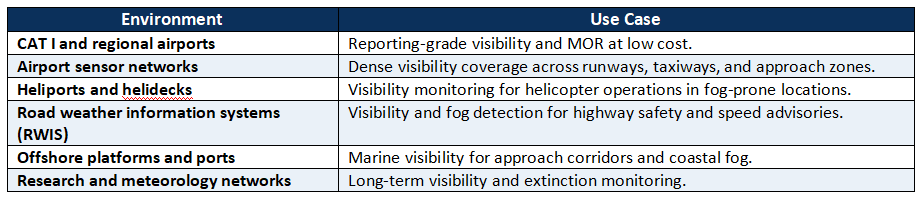

9. Applications: Airports, Road Weather, Heliports, and Offshore
10. Market and Technology Trends
The visibility-sensor market is expanding as automated weather networks grow and airports upgrade to digital, data-driven operations. Key trends include:
· IoT and digital integration — IP-connected sensors feeding cloud platforms and air-traffic-management systems.
· Multi-parameter sensing — combining visibility, present weather, and precipitation in one compact unit.
· Improved mixed-precipitation accuracy — advanced calibration and algorithms closing the gap with transmissometers.
· Low-maintenance optics — contamination monitoring and heated hoods reducing service visits.
· Network densification — more sensors per airfield to capture spatial variability in fog and haze.
For airports, the strategic implication is that visibility sensing is becoming a network problem rather than a single-instrument problem: the value lies in combining many compact sensors with a reference standard where precision approaches demand it.

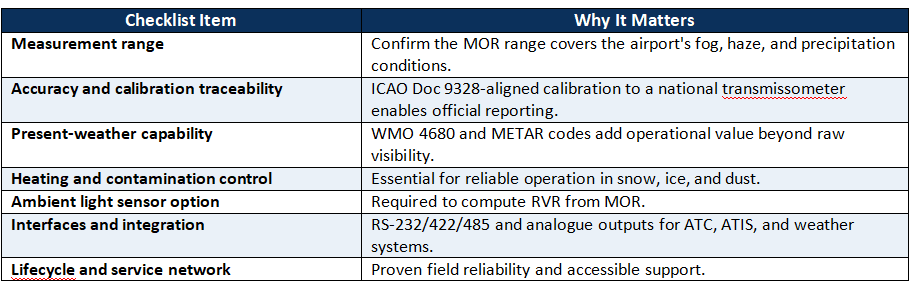

11. Selecting a Forward Scatter Meter: Buyer's Checklist
12. Integrating a Forward Scatter Meter into a Modern Airport Weather Observation System
In a modern airport weather observation system, a forward scatter meter functions as a distributed visibility node: it reports meteorological optical range and extinction, feeds the ambient light sensor data needed to compute runway visual range, and publishes present weather and MOR to the METAR/SPECI generation chain.

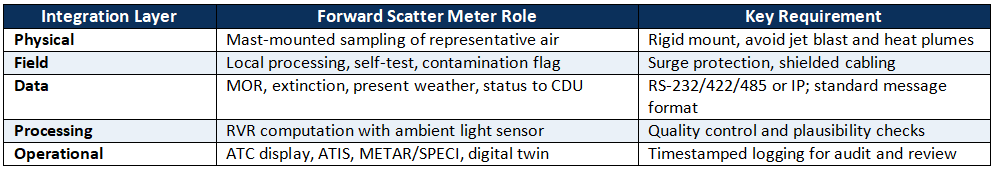

Integration begins at the physical layer. The sensor is mounted on a rigid, low-vibration mast at a height that places the sampling volume in representative air — clear of jet-blast turbulence, de-icing fluid spray, and heat plumes from apron equipment. Power and data run in shielded, surge-protected cabling to a field interface unit. Because the sensor head is single-ended, all electronics sit in one housing, which simplifies installation compared with a dual-tower transmissometer that requires alignment across the runway.
At the data layer, the sensor publishes MOR, extinction coefficient, present-weather codes, and status flags over serial interfaces (RS-232/422/485) or modern IP-based protocols. A central data-processing unit collects these messages, applies quality-control checks, and merges them with background luminance from the ambient light sensor to compute RVR for each runway measurement position.
At the operational layer, values flow to the air traffic control tower display, the automatic terminal information service (ATIS) broadcast, the aerodrome meteorological office, and — increasingly — digital twin and airport operations platforms. Every output is timestamped and logged so that low-visibility procedures and post-event review can be reconstructed precisely.
13. Calibration, Traceability, and Quality Assurance
A forward scatter meter becomes reporting-grade through calibration traceability: its scattered-light response is calibrated against a reference transmissometer under the procedures of ICAO Doc 9328, so that the MOR it reports is legally acceptable for aviation use.
Because the instrument infers extinction from scattered light rather than measuring it directly, its accuracy depends on the assumed relationship between scattering and extinction. That relationship varies with particle size distribution — fog droplets, drizzle, snow, and dust each scatter differently. Calibration therefore establishes the conversion factors for the conditions the site will actually see.
A practical quality-assurance programme has three tiers. First, factory calibration with traceable reference standards and documented uncertainty. Second, periodic on-site verification using a calibrated attenuation or scatter reference check that confirms the optical path has not drifted. Third, comparative validation against a reference transmissometer — or, where none exists, against a portable visibility standard — at intervals aligned with national aviation authority requirements.
Contamination monitoring deserves special attention. Salt spray, dust film, insects, and ice on the optical windows change the scattering baseline and produce slow, insidious drift that is easy to miss. Modern sensors perform continuous window-condition self-tests and raise a maintenance flag before accuracy is compromised. Operators should treat that flag as an operational alert, not a maintenance nicety.
· Factory calibration with documented traceability and stated measurement uncertainty.
· Periodic on-site verification against a reference attenuation or scatter standard.
· Comparative validation against a reference transmissometer at regulator-defined intervals.
· Continuous optical-window contamination self-test with automatic maintenance alerting.
· Full calibration and maintenance records retained for regulatory audit and incident review.
14. Common Failure Modes and How to Prevent Them

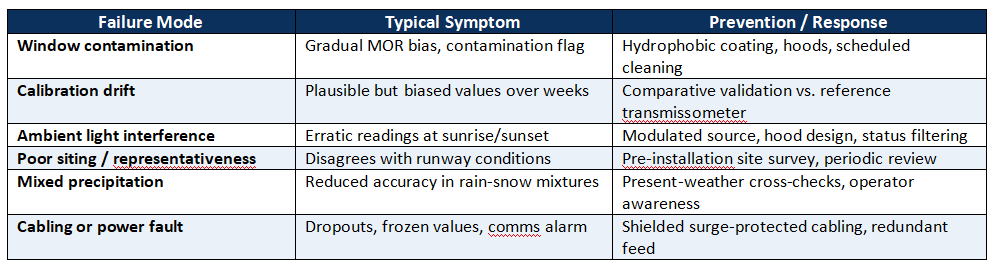

The dominant failure modes of a forward scatter meter are optical-window contamination, calibration drift, ambient-light interference, and representativeness errors caused by poor siting — all of which are detectable through status flags and comparative validation.
Contamination is the most common cause of degraded accuracy. A thin film of salt, dust, or drying water spots on the transmitter or receiver window adds a spurious scatter component that biases MOR low or high depending on geometry. Prevention is mechanical and procedural: hydrophobic window coatings, effective hoods that shield the sampling volume from direct precipitation and sun, scheduled cleaning, and reliance on the sensor's own contamination flag.
Calibration drift is slower and harder to spot because the sensor continues to report plausible values. It is caught only by comparative validation against a reference instrument or a portable check standard. Dense sensor networks have a natural advantage here: neighbouring sensors can be cross-compared, and an outlier is usually the drifting unit.
Siting errors produce values that are accurate for the sampling volume but unrepresentative of the runway. A sensor placed near a heat source, in a sheltered hollow where fog lingers, or in the jet-blast path will disagree with the runway environment. The remedy is careful site survey before installation and periodic review when apron layouts change.
15. Frequently Asked Questions (FAQ)
What is a forward scatter meter?
A forward scatter meter is a compact optical sensor that estimates visibility by measuring the light scattered at a forward angle (about 42°) from a small sampling volume of air. It derives the extinction coefficient and reports meteorological optical range (MOR).
How does a forward scatter meter differ from a transmissometer?
A transmissometer measures light attenuation directly across a long baseline (e.g., 75 m), while a forward scatter meter infers extinction from scattered light in a small volume. The transmissometer is the reference standard for CAT II/III RVR; the forward scatter meter is compact and cost-effective for CAT I and network-density deployments.
What is the Koschmieder equation?
The Koschmieder relationship, V = 3.912 / σ, converts the extinction coefficient σ into meteorological visibility V. Meteorological optical range uses a 5% transmittance convention, MOR ≈ 3 / σ.
What accuracy can a forward scatter meter achieve?
Typical accuracy is about ±10%, with better short-range performance on precision models. Calibration to ICAO Doc 9328 and traceability to a national transmissometer are what make the output acceptable for official aviation reporting.
Can a forward scatter meter measure RVR?
Yes, when paired with an ambient light sensor (ALS). The sensor provides MOR and extinction; the ambient light sensor supplies background luminance, and the system computes RVR from both.
What are the limitations of forward scatter measurement?
Because it samples a small volume and infers extinction from an assumed particle-size distribution, accuracy can diverge in mixed precipitation (rain with snow, blowing dust) and it cannot represent path-integrated visibility variations across a long runway.
How often should a forward scatter meter be calibrated?
Follow the national aviation authority's interval, typically annual verification at minimum, with comparative validation against a reference transmissometer. Many operators add quarterly contamination checks and semi-annual scatter-reference verification in harsh environments.
Can forward scatter meters be used for CAT II and CAT III operations?
They support CAT I operations widely and appear in low-visibility programmes, but the transmissometer remains the preferred reference sensor for the highest-precision CAT II/III RVR, where path-integrated measurement across the runway is required.
What is the difference between MOR and RVR?
MOR (meteorological optical range) is a property of the air — the distance at which a black object of suitable size can be seen. RVR (runway visual range) is the distance a pilot can see down the runway, and depends on both MOR and background luminance from the ambient light sensor.
How does the sensor handle snow and ice?
Heated optical windows, hydrophobic coatings, and hoods that shield the sampling volume keep the instrument operational in winter. The contamination self-test flags ice build-up before it degrades accuracy.
How many forward scatter sensors does an airport need?
At minimum one per runway measurement position (touchdown, mid-point, stop-end). Dense networks add sensors to capture local variation in fog-prone areas and to enable cross-comparison that detects drift.
What is present weather and why does it matter?
Present weather is the sensor's automated classification of the current phenomenon — fog, mist, rain, snow, drizzle — reported in WMO 4680 or METAR codes. It adds operational context that raw visibility numbers cannot convey.
Key Takeaways
· A forward scatter meter measures scattered light at ~42° from a small sampling volume to derive extinction and MOR.
· It is compact, single-ended, and cost-effective — the workhorse of automated visibility networks.
· Visibility uses the Koschmieder equation (V = 3.912/σ); MOR uses the 5% convention (≈ 3/σ).
· Calibration traceability to ICAO Doc 9328 and a national transmissometer is what makes its data reporting-grade.
· Best suited to CAT I runways, network density, regional sites, RWIS, heliports, and offshore use.
16. Conclusion
The forward scatter meter has done for visibility measurement what the digital sensor did for so many other parameters: it made accurate observation compact, affordable, and deployable at scale. From a single sensor at a regional airfield to a dense network across a major hub, it delivers the visibility data that automated weather observation systems depend on.
Its limitations are real but well understood, and modern calibration, contamination monitoring, and present-weather capability have narrowed them considerably. For most airports, the right architecture combines many forward scatter meters for coverage with a reference transmissometer where precision approaches demand the highest accuracy.
Haisen Global supplies forward-scatter visibility sensors, transmissometer-based RVR systems, and ambient light sensors for airport weather observation systems worldwide. For a technical datasheet, network design, or quotation, contact our team.
