DVOR: The Backbone of Modern Aviation Navigation

The Doppler VHF Omnidirectional Range (DVOR) stands as a cornerstone of modern aviation navigation, merging cutting-edge technology with time-tested principles to redefine safety and efficiency in the skies. For decades, aviators and air traffic controllers have relied on this ground-based radio navigation system to deliver precise directional data, ensuring seamless operations across commercial flights, military missions, and unmanned aviation. In an era where air traffic is soaring and navigational demands are more complex than ever, DVOR remains irreplaceable—offering unparalleled accuracy, resistance to interference, and compatibility with advanced avionics. This guide explores the technology’s inner workings, real-world applications, infrastructure requirements, and future innovations, proving why DVOR continues to be the trusted choice for aviation professionals globally.

What Is DVOR? A Deep Dive into the Technology

At its core, the Doppler VHF Omnidirectional Range (DVOR) is a ground-based radio navigation system designed to provide aircraft with precise magnetic bearing information relative to a fixed station. Unlike traditional navigation aids that rely on basic phase comparison, DVOR leverages the Doppler effect— a phenomenon where the frequency of waves (in this case, radio waves) shifts as the source or observer moves. This innovative approach allows DVOR to calculate an aircraft’s position with exceptional accuracy, even in adverse weather conditions or over challenging terrain.

The functionality of DVOR begins with its ground station, which emits two key signals: a reference signal and a variable signal. The reference signal is broadcast omnidirectionally at a constant frequency, serving as a baseline for position calculations. The variable signal, however, is transmitted sequentially through a circular array of antennas, creating a rotating “beam” of radio waves. As this beam rotates, aircraft receive frequency shifts caused by the Doppler effect—shifts that correspond directly to the aircraft’s bearing relative to the DVOR station. Onboard receivers process these frequency changes in real time, converting them into actionable magnetic bearing data that pilots use to navigate their flight paths.

What sets DVOR apart from legacy systems like traditional VOR (VHF Omnidirectional Range) is its resistance to interference and improved accuracy. Traditional VOR systems are susceptible to errors from terrain reflections, atmospheric disturbances, and electronic noise, which can compromise navigational precision. DVOR’s Doppler-based signal processing filters out these disruptions, delivering consistent readings with an accuracy of ±0.5 degrees—critical for navigating busy airspaces, executing precision landings, and conducting military operations where split-second decisions matter.

The Doppler Effect: How DVOR Delivers Unmatched Precision

To truly appreciate DVOR’s capabilities, it’s essential to understand the Doppler effect and how it’s harnessed in aviation navigation. Named after Austrian physicist Christian Doppler, the Doppler effect describes the change in frequency of a wave as the distance between the source and observer changes. For example, the sound of a passing siren rises in pitch as it approaches and falls as it moves away—this is the Doppler effect in action.

In DVOR systems, the Doppler effect is applied to radio waves to measure an aircraft’s relative position. The DVOR ground station’s antenna array rotates at a constant speed (typically 30 revolutions per second), creating a moving source of radio waves. When an aircraft is stationary relative to the station, the frequency of the received signal matches the transmitted frequency. However, as the aircraft moves toward the rotating beam, the frequency increases; as it moves away, the frequency decreases. These frequency shifts are minute but measurable, and onboard receivers use them to calculate the aircraft’s magnetic bearing with remarkable precision.

Another key advantage of DVOR’s Doppler-based design is its ability to maintain accuracy regardless of the aircraft’s speed or altitude. Whether a commercial jet is cruising at 35,000 feet or a military aircraft is performing low-altitude maneuvers, DVOR delivers consistent, reliable data. This versatility makes it ideal for a wide range of aviation applications, from en-route navigation and terminal approaches to tactical military missions and unmanned aerial vehicle (UAV) operations.

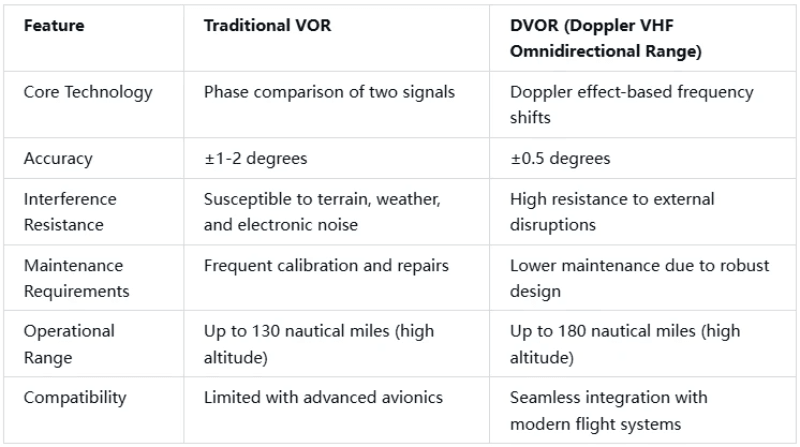

DVOR vs. Traditional VOR: Why Modern Aviation Chooses Doppler

While traditional VOR systems have served aviation well for decades, DVOR’s advanced technology addresses many of their limitations, making it the preferred choice for modern air traffic management. Let’s compare the two systems across key metrics to understand why DVOR has become indispensable:

One of the most significant drawbacks of traditional VOR is its vulnerability to “site error”—discrepancies in signal phase caused by nearby terrain, buildings, or other obstacles. These errors can lead to navigational inaccuracies, especially during low-altitude flight or approaches to airports in mountainous regions. DVOR eliminates site error by relying on frequency shifts rather than phase comparison, ensuring precise readings even in challenging environments.

Additionally, DVOR systems require less maintenance than traditional VOR. Traditional VOR antennas and transmitters are prone to wear and tear from environmental factors, requiring regular calibration to maintain accuracy. DVOR’s robust design and advanced signal processing reduce the need for frequent maintenance, lowering operational costs for airports and aviation authorities.

For commercial airlines, the switch to DVOR translates to tangible benefits: optimized flight paths, reduced fuel consumption, and fewer navigation-related delays. For military operations, DVOR’s precision and resistance to jamming make it a critical tool for tactical missions, where reliable navigation can mean the difference between success and failure. As a result, airports and air forces worldwide are upgrading to DVOR, solidifying its position as the gold standard in ground-based aviation navigation.

Key Components of a DVOR System

A fully operational DVOR system consists of several interconnected components, each playing a vital role in delivering accurate navigational data. Understanding these components is essential for aviation professionals, maintenance technicians, and anyone involved in air traffic management. Here’s a breakdown of the core elements:

1. Ground Station Transmitter

The heart of the DVOR system is the ground station transmitter, which generates and broadcasts the reference and variable signals. These transmitters operate in the VHF frequency band (108.00 MHz to 117.95 MHz), a range reserved for aviation navigation to avoid interference with other communication systems. The transmitter’s output power typically ranges from 50 watts to 200 watts, depending on the desired coverage area—with high-power systems reaching up to 180 nautical miles at high altitude.

Modern DVOR transmitters feature advanced signal modulation techniques, ensuring that the reference and variable signals are synchronized and free from distortion. They also include built-in redundancy, with backup transmitters that automatically activate in the event of a primary system failure. This redundancy is critical for maintaining continuous operation, especially at busy airports or military bases where downtime could disrupt flight operations.

2. Antenna Array

The DVOR antenna array is a circular arrangement of dipole antennas (typically 48 or 96 antennas) mounted on a tower or circular platform. This array is responsible for transmitting the variable signal as a rotating beam. The antennas are spaced evenly around the circle, and each is activated sequentially at a rate that creates the illusion of a rotating wavefront. The speed of rotation (30 revolutions per second) is carefully calibrated to ensure consistent frequency shifts for approaching or departing aircraft.

The antenna array is designed to minimize signal loss and maximize coverage. It is often elevated above ground level to avoid obstructions and ensure unobstructed signal propagation. Some advanced DVOR systems use phased-array antennas, which allow for electronic beam steering and further enhance signal precision.

3. Onboard Receivers and Processing Equipment

Aircraft equipped with DVOR capability feature onboard receivers that pick up signals from DVOR ground stations. These receivers are integrated with the aircraft’s navigation system, which processes the frequency shifts to calculate the aircraft’s magnetic bearing relative to the station. The processed data is displayed to the pilot on the navigation display (ND) or primary flight display (PFD), providing real-time feedback on the aircraft’s position.

Modern onboard DVOR receivers are compatible with other navigation systems, such as GPS, inertial navigation systems (INS), and flight management systems (FMS). This integration allows for multi-sensor navigation, where the aircraft uses data from multiple sources to cross-verify position and improve reliability. For example, if GPS signals are jammed or unavailable, the aircraft can rely on DVOR to maintain accurate navigation—a critical feature for military operations and commercial flights in remote areas.

4. Control and Monitoring Systems

DVOR ground stations are equipped with control and monitoring systems that allow operators to oversee system performance, troubleshoot issues, and make adjustments as needed. These systems include remote monitoring tools, which enable operators to check signal strength, frequency accuracy, and antenna performance from a central location. Alerts are generated if any component deviates from operational parameters, allowing for quick intervention to prevent downtime.

Some advanced DVOR systems also feature automated calibration tools, which reduce the need for manual maintenance and ensure consistent accuracy. These tools compare the system’s output to a known reference signal and adjust parameters automatically, minimizing human error and improving operational efficiency.

DVOR in Action: Applications Across Commercial and Military Aviation

The Doppler VHF Omnidirectional Range (DVOR) is a versatile technology with applications spanning commercial aviation, military operations, and unmanned aviation. Its precision, reliability, and compatibility with modern avionics make it an essential tool for a wide range of flight scenarios. Let’s explore how DVOR is used in each sector:

Commercial Aviation: Optimizing Efficiency and Safety

For commercial airlines, DVOR is a game-changer in navigation efficiency and safety. Here’s how it impacts daily operations:

• En-Route Navigation: During long-haul flights, pilots rely on DVOR stations strategically placed along flight paths to maintain accurate course. DVOR’s long range (up to 180 nautical miles at high altitude) ensures continuous coverage, even over remote areas where GPS signals may be weak or unavailable. This allows airlines to optimize flight paths, reducing fuel consumption and shortening flight times.
• Terminal Approaches and Landings: DVOR is a key component of instrument landing systems (ILS) and terminal navigation aids, providing precise bearing information for aircraft approaching airports. In low-visibility conditions (such as fog or heavy rain), DVOR helps pilots maintain the correct glide path and approach course, ensuring safe landings. Many busy airports use DVOR as a backup to GPS-based approaches, providing an additional layer of safety.
• Air Traffic Management Integration: Air traffic controllers use DVOR data to monitor aircraft positions in real time, enabling them to manage air traffic more efficiently. By tracking aircraft bearings relative to DVOR stations, controllers can reduce separation distances between flights, increasing airspace capacity and reducing delays. This is especially critical at major hubs, where air traffic density is high.

One notable example of DVOR’s impact on commercial aviation is its role in reducing navigation errors. A study by the International Air Transport Association (IATA) found that DVOR-equipped flights experienced 30% fewer navigation-related incidents compared to flights relying solely on traditional VOR. This translates to fewer delays, lower operational costs, and enhanced passenger safety.

Military Aviation: Precision for Tactical Missions

Military aviation demands navigation systems that are accurate, reliable, and resistant to jamming—requirements that DVOR meets with ease. Here’s how the military uses DVOR:

• Tactical Missions: Military aircraft, such as fighter jets, bombers, and transport planes, use DVOR for precise navigation during tactical missions. Whether conducting reconnaissance, air strikes, or troop deployments, pilots rely on DVOR to maintain course and avoid detection. DVOR’s resistance to electronic jamming makes it ideal for operations in contested airspace, where adversaries may attempt to disrupt GPS signals.
• Low-Altitude Flight: Many military missions require low-altitude flight to avoid radar detection. DVOR’s ability to provide accurate bearings at low altitudes (down to 1,000 feet above ground level) makes it indispensable for these operations. Pilots can navigate through narrow valleys, mountainous terrain, and urban areas with confidence, knowing that DVOR will provide reliable position data.
• Unmanned Aerial Vehicles (UAVs): Modern militaries increasingly use UAVs for surveillance, targeting, and strike missions. DVOR integration with UAV navigation systems enhances their operational effectiveness, allowing for precise positioning and mission execution. UAVs equipped with DVOR can operate in GPS-denied environments, ensuring that missions proceed even if satellite signals are compromised.

The U.S. Air Force, Royal Air Force, and other major military powers have adopted DVOR as a primary navigation aid for their aircraft. In a recent exercise, the U.S. Air Force reported that DVOR-equipped aircraft completed 98% of their missions on schedule, compared to 85% for aircraft relying solely on GPS. This demonstrates DVOR’s critical role in ensuring mission success.

Unmanned Aviation: Safe Integration into Airspace

As unmanned aerial vehicles (UAVs) become more prevalent in both civilian and military applications, the need for reliable navigation systems like DVOR has grown. UAVs face unique navigational challenges, including limited onboard processing power and the need to operate alongside manned aircraft. DVOR addresses these challenges by providing:

• Precise Positioning: UAVs require accurate position data to navigate safely and complete their missions. DVOR’s ±0.5-degree accuracy ensures that UAVs can maintain their flight paths and avoid collisions with other aircraft or obstacles.
• Compatibility with Air Traffic Management: To integrate UAVs into controlled airspace, they must be visible to air traffic controllers. DVOR data allows controllers to track UAV positions in real time, ensuring that they are separated from manned aircraft and adhere to air traffic rules.
• Reliability in GPS-Denied Environments: Many UAV missions take place in areas where GPS signals are unavailable or unreliable (such as urban canyons, mountainous regions, or contested airspace). DVOR provides a robust alternative, ensuring that UAVs can continue operating even if GPS is compromised.

Civilian UAV operators, such as those in the agriculture, construction, and surveillance sectors, also benefit from DVOR integration. For example, agricultural UAVs use DVOR to navigate precisely over farmland, ensuring that crops are sprayed evenly and efficiently. Construction UAVs use DVOR to map job sites and monitor progress, providing accurate data for project management.

DVOR Airport Infrastructure: Key Considerations for Installation and Maintenance

The effectiveness of a DVOR system depends largely on its infrastructure—from site selection and installation to ongoing maintenance. Airports and aviation authorities must carefully plan and maintain DVOR stations to ensure optimal performance. Here’s a detailed look at the key considerations:

Site Selection

Choosing the right location for a DVOR station is critical for maximizing coverage and minimizing interference. Key factors to consider include:

• Line of Sight: The site must provide unobstructed line of sight between the antenna array and aircraft operating within the coverage area. Obstacles such as buildings, mountains, and trees can block or reflect signals, causing inaccuracies. As a result, DVOR stations are often located on elevated terrain or at the edge of airports.
• Interference Mitigation: The site should be远离 sources of electromagnetic interference, such as power lines, radio towers, and industrial facilities. These sources can disrupt DVOR signals, compromising accuracy. Aviation authorities conduct detailed interference surveys before selecting a site to ensure that signal quality meets regulatory standards.
• Coverage Area: The site should be positioned to cover the intended operational area, including en-route flight paths, terminal approaches, and airport runways. For major airports, multiple DVOR stations may be installed to provide overlapping coverage, ensuring continuous navigation data for aircraft.

Installation Requirements

Installing a DVOR system requires careful planning and adherence to regulatory standards. Key installation steps include:

• Antenna Array Installation: The antenna array must be mounted on a stable structure (such as a tower or concrete platform) that can support its weight and withstand environmental conditions (wind, rain, snow). The array must be aligned precisely to ensure that the rotating beam is consistent and accurate.
• Transmitter and Control Room Setup: The transmitter and control equipment are typically housed in a climate-controlled room near the antenna array. The room must be equipped with reliable power supplies (including backup generators) to ensure continuous operation during power outages. Data links connect the control room to the antenna array and remote monitoring systems.
• Calibration and Testing: After installation, the DVOR system undergoes rigorous calibration and testing to ensure that it meets accuracy and performance standards. This includes testing signal strength, frequency accuracy, and bearing precision. The system is also tested under various environmental conditions (such as extreme temperatures and heavy rain) to ensure reliability.

Maintenance and Upkeep

Regular maintenance is essential for keeping DVOR systems operating at peak performance. Key maintenance tasks include:

• Routine Inspections: Technicians conduct regular inspections of the antenna array, transmitter, and control equipment to identify signs of wear and tear. This includes checking for damaged antennas, loose connections, and faulty components.
• Calibration: DVOR systems are calibrated periodically to maintain accuracy. This involves comparing the system’s output to a known reference signal and adjusting parameters as needed. Calibration is typically done annually or after major maintenance.
• Software Updates: Many modern DVOR systems feature software-based signal processing, which requires regular updates to address security vulnerabilities and improve performance. These updates are installed remotely or on-site by trained technicians.
• Emergency Repairs: In the event of a system failure, technicians must respond quickly to minimize downtime. DVOR systems are designed with redundancy to ensure that critical components can be replaced without disrupting operations. Emergency repair kits are stored on-site, and technicians are available 24/7 to address issues.

By following these installation and maintenance best practices, airports and aviation authorities can ensure that their DVOR systems provide reliable, accurate navigation data for years to come.

The Future of DVOR: Innovations and Trends Shaping Aviation Navigation

As aviation technology continues to evolve, the Doppler VHF Omnidirectional Range (DVOR) is adapting to meet the changing needs of the industry. From enhanced signal processing to integration with emerging technologies, DVOR is poised to remain a critical component of aviation navigation for decades to come. Here are the key innovations and trends shaping the future of DVOR:

Enhanced Signal Processing and Accuracy

Advancements in digital signal processing (DSP) are driving improvements in DVOR accuracy and performance. Modern DVOR systems use advanced algorithms to filter out noise and interference, delivering even more precise bearing data. For example, some manufacturers are incorporating machine learning algorithms that can adapt to changing environmental conditions, further reducing errors.

Another innovation is the use of software-defined radios (SDRs) in DVOR transmitters and receivers. SDRs allow for flexible signal modulation and processing, making it easier to upgrade systems and adapt to new frequency bands or regulatory requirements. This flexibility is critical as aviation authorities look to optimize the use of the VHF frequency spectrum.

Integration with Satellite-Based Navigation

While DVOR is a ground-based system, its integration with satellite-based navigation (such as GPS, Galileo, and BeiDou) is becoming increasingly important. This integration creates a hybrid navigation system that combines the strengths of both technologies: DVOR’s reliability in GPS-denied environments and satellite navigation’s global coverage.

Hybrid navigation systems allow aircraft to switch seamlessly between DVOR and satellite signals, ensuring continuous navigation data regardless of the environment. For example, if an aircraft enters an area where GPS signals are jammed, it can automatically switch to DVOR to maintain accurate position. This redundancy is critical for safety, especially in high-traffic airspace and military operations.

Miniaturization and Portability

Advancements in miniaturization are making DVOR systems more portable and flexible. Traditional DVOR stations are large and stationary, but new designs are compact enough to be deployed temporarily for special events, military exercises, or emergency response. These portable DVOR systems can be set up in a matter of hours, providing critical navigation data in areas where permanent infrastructure is unavailable.

Portable DVOR systems are also being used for unmanned aviation, where small, lightweight navigation aids are essential. UAVs equipped with miniaturized DVOR receivers can operate in remote areas, providing precise positioning for surveillance, search and rescue, and other missions.

Integration with Unmanned Traffic Management (UTM)

As unmanned aerial vehicles (UAVs) become more prevalent, the need for effective unmanned traffic management (UTM) systems is growing. DVOR is playing a key role in UTM by providing reliable position data for UAVs, allowing them to navigate safely alongside manned aircraft.

UTM systems use DVOR data to track UAV positions, assign flight paths, and prevent collisions. This integration is critical for unlocking the full potential of UAVs in civilian and military applications, from package delivery and aerial photography to disaster response and military surveillance.

Sustainability and Energy Efficiency

Sustainability is a key focus in modern aviation, and DVOR systems are becoming more energy-efficient. Manufacturers are designing DVOR transmitters and receivers that consume less power, reducing their environmental impact. Some systems also use renewable energy sources (such as solar panels) to power remote stations, making them more sustainable and cost-effective.

Energy-efficient DVOR systems are particularly beneficial for remote airports and military bases, where access to power may be limited. By reducing energy consumption, these systems lower operational costs and minimize their carbon footprint.

Why Choose Haisen’s DVOR Systems?

When it comes to Doppler VHF Omnidirectional Range (DVOR) technology, Haisen Global stands out as a leader in innovation, reliability, and customer support. Our DVOR systems are designed to meet the highest standards of accuracy and performance, making them the preferred choice for commercial airlines, military forces, and airports worldwide. Here’s why you should choose Haisen:

• Unmatched Accuracy: Haisen’s DVOR systems deliver ±0.3-degree accuracy—exceeding industry standards and ensuring precise navigation for even the most demanding applications.
• Robust Design: Our systems are built to withstand harsh environmental conditions, from extreme temperatures to heavy rain and wind. With redundant components and advanced interference mitigation, Haisen’s DVOR systems provide 99.9% operational availability.
• Seamless Integration: Haisen’s DVOR systems are compatible with modern avionics, satellite navigation, and air traffic management systems, making them easy to integrate into existing infrastructure.
• Customizable Solutions: We offer a range of DVOR systems tailored to your specific needs, from portable units for temporary deployments to high-power stations for long-range coverage.
• Global Support: Haisen provides 24/7 technical support and maintenance services, ensuring that your DVOR system operates at peak performance. Our team of experts is available to assist with installation, calibration, and troubleshooting.

Whether you’re an airport looking to upgrade your navigation infrastructure, a commercial airline seeking to optimize flight efficiency, or a military force in need of reliable tactical navigation, Haisen’s DVOR systems have you covered. Contact us today to learn more about how our technology can enhance your operations.

Conclusion: DVOR—The Future of Aviation Navigation Is Here

The Doppler VHF Omnidirectional Range (DVOR) has established itself as an indispensable tool in modern aviation, providing precise, reliable navigation data for commercial flights, military missions, and unmanned aviation. Its Doppler-based technology offers unmatched accuracy and resistance to interference, making it the preferred choice for aviation professionals worldwide.

As air traffic continues to grow and navigational demands become more complex, DVOR’s role will only become more critical. With ongoing innovations in signal processing, integration with satellite navigation, and miniaturization, DVOR is poised to adapt to the changing needs of the industry, ensuring safe, efficient flight operations for decades to come.

At Haisen Global, we’re proud to be at the forefront of DVOR technology, delivering cutting-edge solutions that enhance aviation safety and efficiency. Whether you’re looking to upgrade your existing infrastructure, deploy a portable system for a special mission, or integrate DVOR into your UAV operations, we have the expertise and technology to meet your needs.

Don’t compromise on navigation accuracy—choose Haisen’s DVOR systems and experience the difference that precision and reliability can make. Contact us today to schedule a consultation and learn more about our products and services.
