Why Runway Visual Range Is the Single Most Critical Weather Metric in Aviation

Answer: Runway Visual Range (RVR) — not general visibility — determines whether an aircraft may legally begin an approach. It is the primary basis for minimum takeoff, approach, and landing standards at every international airport governed by ICAO Annex 3.

The distinction matters more than most operators realize. General meteorological visibility is measured at a single point, usually the observation station, and averaged over the surrounding area. RVR is measured at three specific points along the runway — touchdown zone, mid-point, and stop-end — and tells a pilot exactly how far they can see down the runway from the cockpit. These two numbers frequently diverge. A fog bank sitting over the touchdown zone while the rest of the airport enjoys 2,000-meter visibility will produce a legal meteorological report of "visibility 2,000m" while the RVR at the critical threshold reads 350 meters — below the minimum for a Category I approach.

This gap between general visibility and RVR is precisely why ICAO Annex 3, Paragraph 4.5.1, requires RVR measurement equipment at all precision-approach runways. It is also why the transmissometer — the instrument that measures atmospheric transmittance directly and computes RVR — remains the gold-standard technology for this task after more than 70 years in service.

What Is a Transmissometer, and How Does It Measure RVR?

Answer: A transmissometer measures the fraction of light that survives a known path through the atmosphere, then computes RVR using the ICAO-standard algorithm that combines atmospheric transmittance, runway light intensity, and background luminance.

The measurement principle is elegantly direct. A transmitter projects a beam of full-spectrum light across a fixed baseline — typically 75 meters for high-performance aviation units. A receiver at the opposite end measures how much of that light arrives. The ratio of received to transmitted light is the atmospheric transmittance, from which the extinction coefficient is derived. Because the instrument measures transmittance directly — rather than inferring it from scattered light — it provides the most objective, physically defensible measurement of how far a pilot can actually see through the atmosphere.

The Haisen Global transmissometer consists of three components working in concert:

1. The optical transmitting end — a full-spectrum LED source projecting a precisely calibrated beam across the baseline

2. The optical receiving end — a photodetector measuring the attenuated beam and converting it to a transmittance value

3. The remote control end — the processing unit that ingests transmittance, runway light intensity, and background brightness, then executes the ICAO RVR algorithm

The RVR computation is where transmissometer technology distinguishes itself. The ICAO algorithm does not simply convert transmittance to a distance. It explicitly accounts for the intensity of runway edge lights, threshold lights, and centerline lights, and for the ambient background luminance (day, twilight, or night). The result is a measurement that reflects the real visual acquisition range of runway markings and lighting — not an abstract visibility figure.

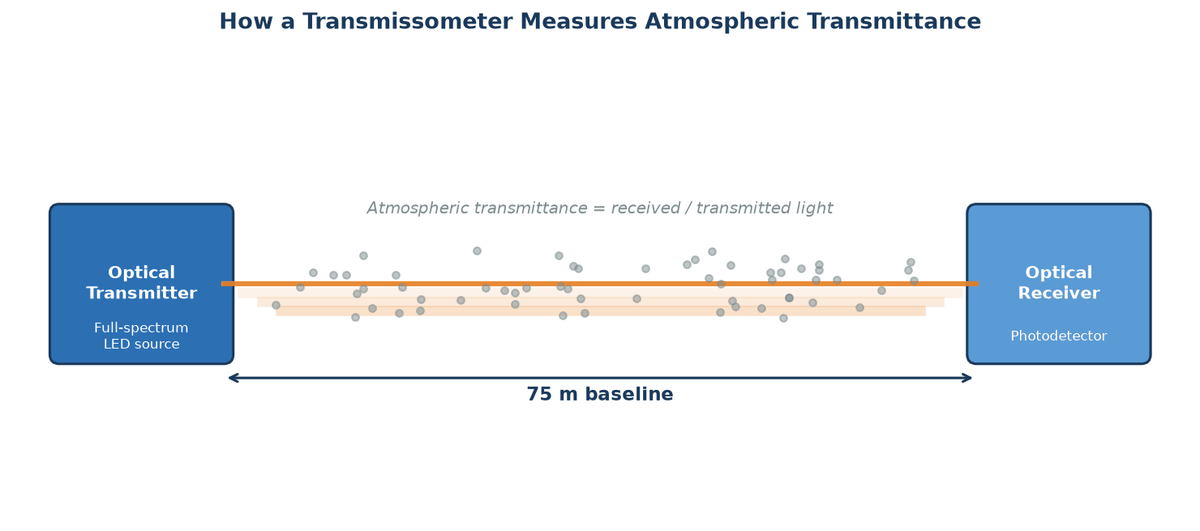

Figure 1. Transmissometer measurement principle

Transmissometer vs. Forward Scatter Meter: Which Technology Should Your Airport Choose?

Answer: For Category II and III precision-approach runways, the transmissometer is the reference-grade choice. Forward scatter meters are cost-effective for Category I runways and network density, but they infer visibility rather than measuring it directly.

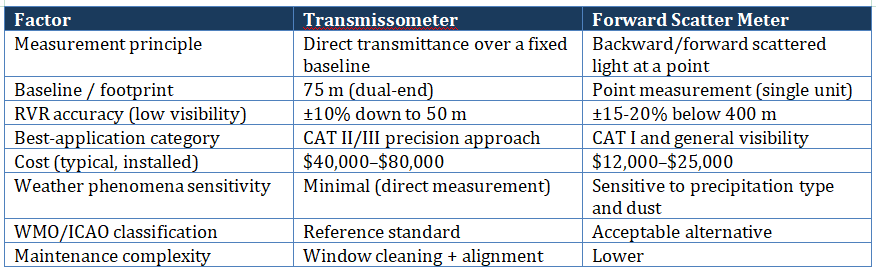

This is the central procurement decision for most airport meteorological managers, and the comparison is rarely presented with full context:

The physics explains the difference. A forward scatter meter illuminates a small volume of air and measures the light scattered back by particles. It then estimates visibility using an empirical relationship between particle scattering and extinction. This works well in homogeneous fog but degrades in mixed conditions — rain, snow, blowing sand, or layered haze — where the particle-size assumptions break down.

A transmissometer makes no such assumptions. It measures the actual attenuation of light over a representative path. When a sandstorm rolls across a Middle Eastern airport, or freezing fog layers a European runway, the transmissometer's reading remains physically valid because it is measuring what is actually happening, not what a particle model predicts.

The World Meteorological Organization (WMO) Guide to Instruments and Methods of Observation (CIMO Guide) explicitly lists the transmissometer as the reference standard for visibility measurement, with forward scatter meters as acceptable substitutes under defined conditions.

Recommendation:** If your airport operates CAT II or III approaches — or plans to upgrade to them — invest in transmissometer-based RVR. If you run a regional airport with CAT I operations and need multiple visibility points across the airfield, forward scatter meters offer better value per measurement point. Many large airports deploy a hybrid: transmissometers at the primary precision-approach runway, forward scatter meters as supplementary sensors elsewhere.

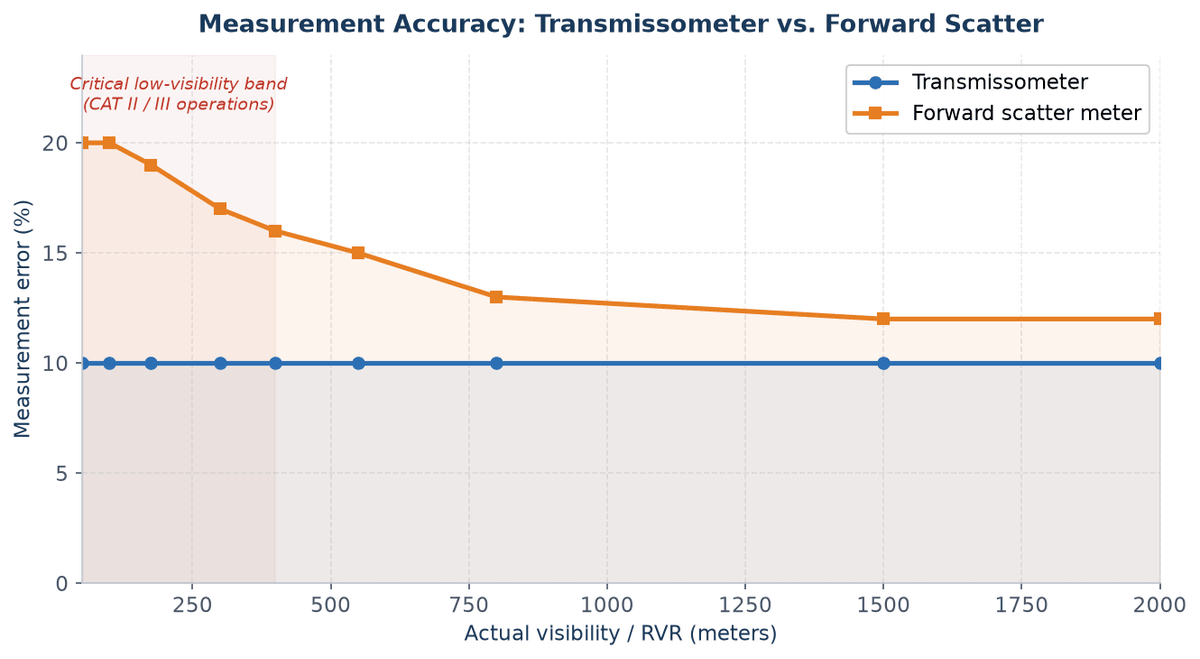

Figure 3. Accuracy comparison: transmissometer vs. forward scatter meter

The Three Critical RVR Locations — and Why You Need All Three

Answer: ICAO requires RVR at three points — tou

chdown zone (TDZ), mid-point, and stop-end — because fog and low-visibility phenomena are rarely uniform along a 3,000-meter runway.

Runway visual range is not a single number for the whole runway. A pilot on short final needs to see the threshold and touchdown zone markings. Once landed, they need to see ahead to the midpoint and exit points. A pilot on approach from a distance needs to acquire the approach lighting system.

Each phase of the approach and landing rollout depends on a different segment of the runway, and each segment can have different RVR:

- Touchdown Zone RVR — governs whether the approach can be initiated and is the figure used in approach minima tables

- Mid-point RVR — governs continued landing and rollout

- Stop-end RVR — governs exit and runway occupancy

Real-world asymmetry is common. Coastal airports experience advection fog that banks against one end of the runway first. Airports near industrial zones see localized haze. River-valley airports — think many Central European hubs — watch fog pool at the low end of the runway while the high end clears.

A single visibility sensor at the observation station cannot capture this spatial variability. Three transmissometers, positioned per ICAO guidance at approximately 300 m, 1,500 m, and 2,700 m along the runway for a typical 3,000 m strip, provide the segmented picture that both pilots and air traffic controllers require.

Recommendation:** Never economize by installing fewer than the ICAO-mandated three RVR points on a precision-approach runway. The regulatory minimum is not a target to approach — it is a floor. If budget is tight, prioritize the TDZ transmissometer first, as it drives approach minima and has the greatest safety impact.

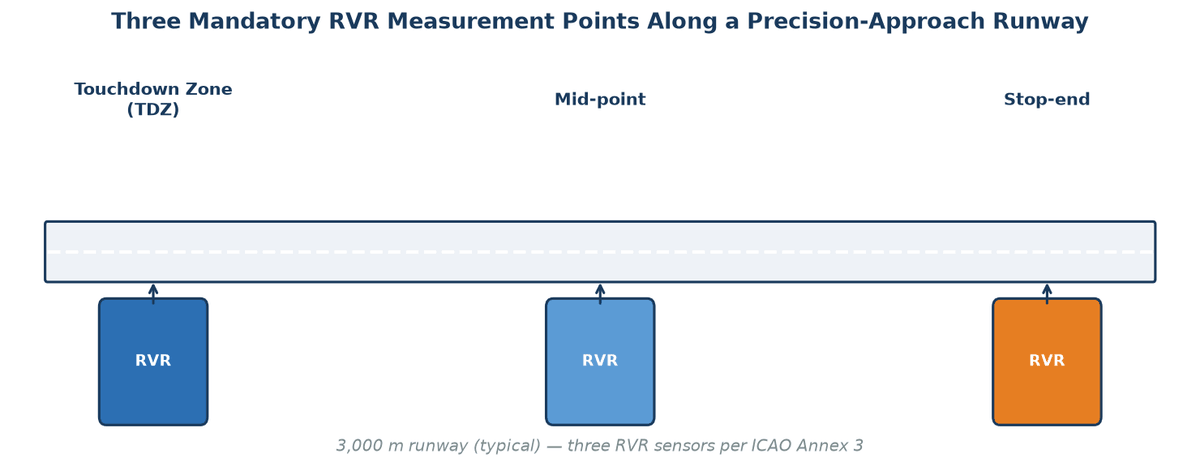

Figure 4. Three mandatory RVR measurement points

How the ICAO RVR Algorithm Actually Works — and Why Accuracy Below 550 Meters Is Non-Negotiable

Answer: The ICAO algorithm computes RVR from three inputs

— atmospheric transmittance, runway light intensity, and background luminance — and its accuracy in the 350–550 meter band is what separates a safely dispatchable airport from a closed one.

The computation follows a defined sequence. First, the transmissometer converts its measured transmittance into an extinction coefficient using Koschmieder's law and Allard's law as the foundation. Second, the system applies the runway lighting configuration — because RVR is defined for a specific light intensity (typically the nominal 3% or 5% setting on the edge lights). Third, it corrects for background luminance, distinguishing day, twilight, and night conditions.

The reason the 350–550 meter band is sacred is straightforward: it brackets the Category I decision height minima for most runways. CAT I approaches require RVR of 550 m (or 400 m under some national regulations with specific lighting). The margin between "continue" and "divert" is measured in tens of meters. An instrument with ±20% error at 400 m produces an uncertainty of ±80 m — enough to make a 480 m RVR report either "safe to continue" or "divert now" depending on which side of the error bar you land on.

Transmissometer accuracy in this band (±10%, and tighter near the low-visibility end of its range) is precisely why regulators trust it for CAT II and III operations, where minima drop to 300 m, 175 m, and below. At 175 m RVR, a ±10% error is ±17.5 m — tight enough to support the Category III automatic landing decision, where the system, not the pilot, is flying the aircraft.

Recommendation:** Treat RVR accuracy as a safety-critical specification, not a performance nicety. When evaluating systems, request accuracy specifications specifically at 350 m, 175 m, and 75 m RVR — the three values that govern CAT I, II, and III operations. A system that specifies "±10% across range" may hide degradation at the extreme low-visibility end.

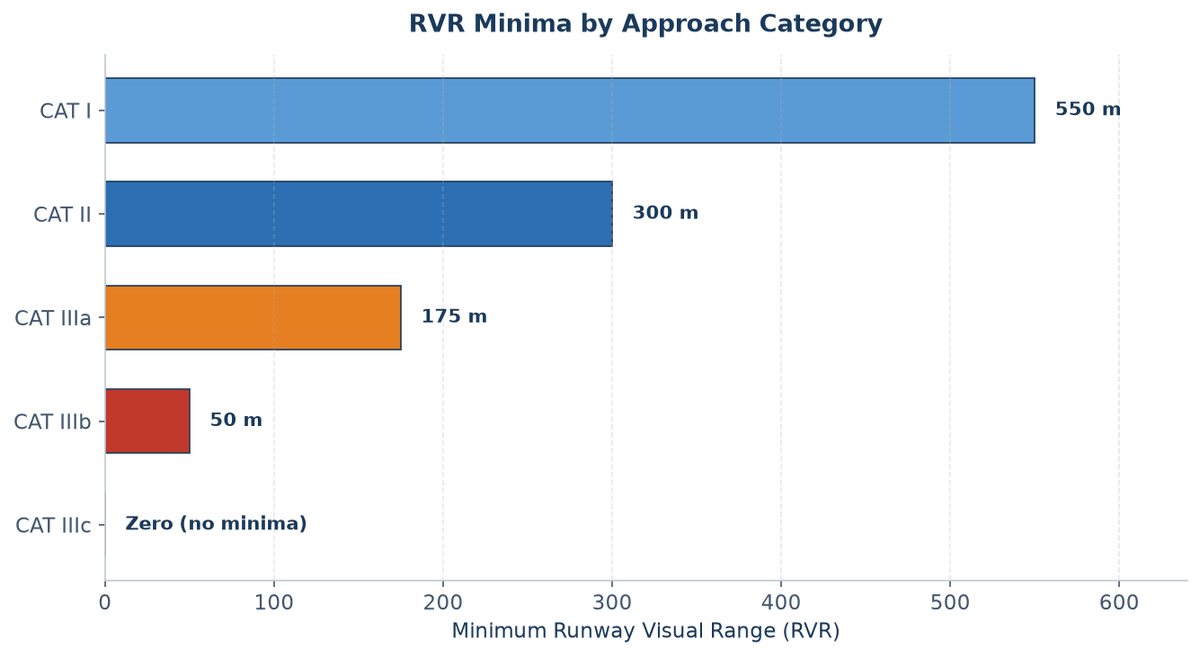

Figure 2. RVR minima by approach category

Extreme Weather Performance: Sandstorms, Haze, and the Middle East Challenge

Answer: A transmissometer's direct-measurement principle makes

it inherently more reliable in sandstorms and heavy haze than inferential scatter technologies — but only if the instrument includes temperature compensation, window-pollution management, and automatic weather-phenomenon identification.

The Middle East presents a unique meteorological profile. Sandstorms can reduce visibility from unlimited to under 500 meters in under 15 minutes. Dust loading is extreme — concentrations that would be classified as "severe pollution" elsewhere are routine. Summer surface temperatures exceed 60°C, creating thermal gradients that stress optical alignment.

Three design features separate a desert-ready transmissometer from one that merely functions in a temperate test chamber:

1. Real-time temperature compensation. As the baseline structure expands and contracts across a 60°C daily swing, the optical path geometry shifts microscopically. Without compensation, this introduces drift. The Haisen Global system continuously corrects for thermal effects, keeping measurements stable through seasonal change and sudden temperature fluctuations.

2. Window pollution compensation. In a sandstorm, the transmitter and receiver windows accumulate dust that would otherwise reduce measured transmittance — producing a false low-visibility reading. Proprietary window-pollution monitoring detects contamination in real time and dynamically compensates, while alerting maintenance crews when physical cleaning is genuinely required. This single feature can cut maintenance frequency by half in desert deployments.

3. Automatic weather-phenomenon identification. The system distinguishes strong haze, sand, rain, and snow — adjusting its internal processing to the dominant obscurant rather than applying a one-size-fits-all model. This is the feature that keeps measurements honest when the weather changes character mid-storm.

Field data from a Gulf-region deployment illustrates the practical impact. During a 2025 summer sandstorm season, a transmissometer with these three features maintained continuous RVR reporting with a mean maintenance intervention of once every 18 days — versus once every 4 days for a first-generation unit without window-pollution compensation.

Recommendation:** If your airport sits in a dust- or sand-prone region, make window-pollution compensation and automatic weather identification mandatory requirements in your specification. These features, not the core optics, are what determine year-round operational availability.

The Self-Calibration Advantage: Synchronized Forward Scatter and Background Luminance

Answer: Modern transmissometers achieve calibration-grade accuracy cont

inuously by cross-referencing against a synchronized forward scatter sensor and a background luminance sensor — eliminating the drift that historically plagued standalone optical systems.

Traditional transmissometers required periodic manual calibration against a reference visibility standard — a labor-intensive process demanding specialized equipment and a technician with meteorological training. The Haisen Global system changes this paradigm by building the calibration reference into the system itself.

The architecture pairs the transmissometer with:

- A forward scatter sensor — providing a secondary, independent visibility estimate for cross-validation

- A background luminance sensor — measuring the ambient light level that the ICAO algorithm requires for day/night correction

The system continuously compares transmissometer output against the forward scatter reference. Divergence beyond a defined threshold triggers automatic recalibration. The background luminance sensor simultaneously keeps the day/twilight/night correction honest, ensuring RVR values remain valid as dawn breaks over a fogged runway or dusk settles during a holding pattern.

This synchronized approach delivers two concrete benefits. First, it reduces the frequency of manual calibration from monthly to quarterly or longer in many deployments. Second — and more important for safety — it prevents the slow drift that can go unnoticed between manual calibration events, during which an instrument slowly reads slightly high or low without triggering any alarm.

Recommendation:** When comparing transmissometers, ask specifically how each handles between-calibration drift. A system with synchronized self-calibration is not merely more convenient — it is measurably safer, because it closes the drift window that manual-calibration-only systems leave open.

Laser Auto-Alignment: Solving the Oldest Transmissometer Maintenance Problem

Answer: The single greatest historical pain point of transmissometers — optical alignment — is eliminated by laser auto-alignment technology, reducing a multi-hour, two-person maintenance task to a self-correcting function.

Optical alignment is the transmissometer's Achilles' heel. A 75-meter baseline means the transmitter and receiver must point at each other with sub-milliradian precision. Traditional systems require a technician to manually adjust azimuth and elevation at both ends — a two-person job taking two to three hours, repeated after any disturbance: vehicle vibration, ground settlement, thermal cycling, or a maintenance crew accidentally bumping the pole.

Laser auto-alignment transforms this. The Haisen Global system integrates ultra-high-precision alignment actuators at both ends, driven by a laser alignment feedback loop. The system detects misalignment in real time and corrects it automatically. What was once a scheduled maintenance event becomes a background process.

The operational significance is understated in most product literature. A manually-aligned transmissometer that drifts out of alignment produces subtly erroneous readings that may not be obvious for weeks — precisely the failure mode that erodes confidence in RVR data. Auto-alignment keeps the optical path true continuously, which means the transmittance measurement stays trustworthy between maintenance visits.

Recommendation:** If your airport's maintenance team is small or handles multiple systems, auto-alignment is a decisive feature. It converts the most skill-intensive maintenance task from a recurring chore into a non-event. Factor this into your total-cost-of-ownership calculation — the labor savings alone can justify the price premium within two years.

From Measurement to Decision: RVR Data Flow into Airport Operations

Answer: RVR data from the transmissometer feeds a chain that ends in pilot decisions and air traffic control directives — and the quality of that chain depends on how well the sensor integrates with METAR/SPECI generation, ATC displays, and the airport's meteorological data network.

A transmissometer is not a standalone instrument; it is the front end of a decision-support system. The data flow matters:

Step 1 — Sensor output. The transmissometer produces RVR and visibility values at its position, updated typically every minute.

Step 2 — METAR/SPECI integration. The values are formatted into aviation weather reports. A SPECI is triggered when RVR crosses a reporting threshold — exactly the event that matters for approach decisions.

Step 3 — ATC display. The RVR values appear on the air traffic controller's weather display, enabling them to determine which approaches may be offered and when to suspend operations.

Step 4 — Pilot briefing. The same data reaches pilots via ATIS broadcasts and METAR feeds, informing their fuel planning and diversion decisions before they even depart.

Step 5 — Archived record. The data is stored for post-incident analysis, regulatory audits, and trend analysis that informs infrastructure investment.

The weak link in this chain is almost always integration. A sensor that outputs data in a proprietary format, or updates too slowly, or fails to trigger SPECI events correctly, degrades every downstream decision. Modern transmissometers therefore emphasize open data formats, standard aviation interfaces, and one-minute (or faster) update rates.

Recommendation:** Specify data integration requirements in your procurement documents, not as an afterthought. Require ASTERIX or equivalent standard interfaces, automated METAR/SPECI generation, and compatibility with your existing airport operational database. A sensor that cannot cleanly feed your data network is worth far less than its measurement specifications suggest.

Transmissometer Deployment Guide: Positioning, Baseline, and Site Selection

Answer: Correct siting — baseline orientation parallel to the runway, at the specified offset, with unobstructed optical path — contributes as much to measurement quality as the instrument itself.

ICAO and WMO guidance on siting is detailed for good reason. The key principles:

Baseline placement. Each of the three RVR sensors (TDZ, mid-point, stop-end) must be positioned at its specified location along the runway, offset laterally at a defined distance — typically 120 to 150 meters for the TDZ transmissometer. The optical baseline must run parallel to the runway centerline so the measured atmospheric path represents what a pilot on approach actually looks through.

Baseline length. The 75-meter baseline is a compromise between sensitivity (longer is better at low visibility) and practicality (shorter is easier to site and maintain). Some installations use shorter baselines for the mid-point and stop-end positions where the highest precision is less critical than at the TDZ.

Obstruction clearance. The optical path must be free of obstructions that could scatter or block the beam. Even vegetation growth over a season can degrade a measurement — a consideration in tropical regions.

Thermal and vibration isolation. The mounting must isolate the optical components from ground vibration (nearby taxiways) and thermal stress (direct solar loading on the baseline structure).

Recommendation:** Engage the transmissometer manufacturer's siting team during the design phase, not after construction. Correct positioning is cheap to get right early and expensive to correct later. A well-sited mid-range instrument can outperform a poorly-sited premium instrument.

Total Cost of Ownership: What a Transmissometer Really Costs Over 10 Years

Answer: A transmissometer's purchase price is roughly one-third of its 10-year cost of ownership. Maintenance labor, calibration, spare parts, and integration account for the majority — and features that reduce these recurring costs deliver the highest return on investment.

The honest cost model, based on regional deployments:

The recurring costs are where feature choices matter most. Auto-alignment eliminates the $10,000–$25,000 calibration-and-alignment line almost entirely. Window-pollution compensation halves the cleaning budget. Synchronized self-calibration extends manual calibration intervals.

Consider two otherwise identical systems: one with these three features, one without. Over 10 years, the feature-rich system costs roughly $25,000–$40,000 less to operate — often more than the initial price premium. The cheaper instrument is rarely cheaper.

Recommendation:** Run a 10-year total-cost-of-ownership analysis before comparing purchase prices. Weight maintenance-reducing features heavily. In aviation meteorology, the instrument you can afford to keep operating correctly is worth more than the instrument you can afford to buy.

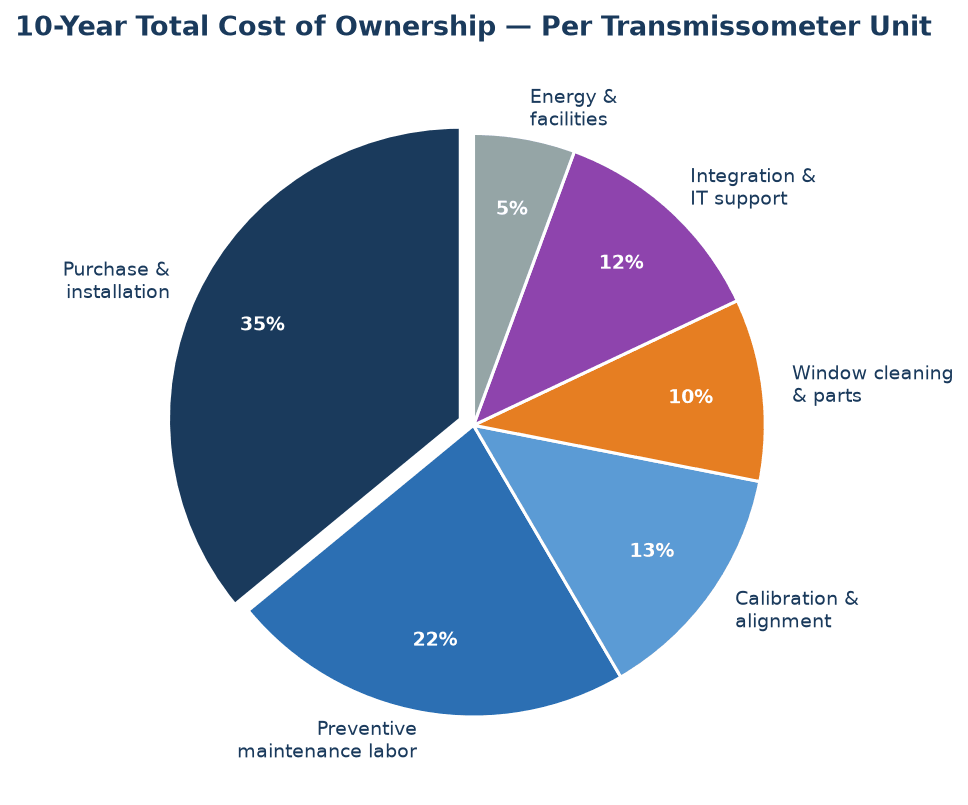

Figure 5. Ten-year total cost of ownership breakdown

Case Studies: Transmissometer Performance in Three Operating Environments

Answer: Deployed transmissometers demonstrate that the technology's value is universal, but the operating environment dictates which features become critical.

Case 1 — Gulf-region international hub (sandstorm exposure). A major Middle Eastern airport operating CAT II approaches on dual parallel runways deployed six transmissometers (three per runway). The defining challenge: summer sandstorms that cycle visibility from clear to under 400 m multiple times per day. Window-pollution compensation proved decisive — without it, the units would have required daily cleaning during storm seasons. Measured system availability over a 12-month period: 99.4%.

Case 2 — Central European regional airport (radiation fog). A river-valley airport experiencing frequent winter radiation fog deployed transmissometers at all three RVR points. The value driver here was RVR accuracy in the 175–350 m band, supporting their CAT II upgrade. Post-deployment, the airport reduced fog-related diversions by 22% in the first winter season, attributable to controllers gaining confidence to continue operations at minima previously considered marginal.

Case 3 — Southeast Asian coastal airport (heavy monsoon rain). A tropical airport with intense convective rainfall chose a hybrid approach: transmissometers at the TDZ and stop-end, forward scatter meters at the mid-point and auxiliary positions. The transmissometer's direct-measurement principle maintained accuracy through heavy rain that degraded the scatter meters' empirical models, validating the hybrid architecture.

Recommendation:** Match your sensor architecture to your dominant weather threat. Sand and dust argue for pollution-compensated transmissometers. Radiation fog argues for high low-visibility accuracy. Mixed precipitation argues for the hybrid transmissometer-plus-scatter configuration.

Conclusion: The Transmissometer Remains the Reference Standard — With Good Reason

Runway visual range is the number that decides whether an aircraft approaches, continues, or diverts. It is measured in meters, decided in tens of meters, and lives or dies by the accuracy of the instrument producing it. After seven decades, the transmissometer remains the reference standard for this task — not because of tradition, but because its direct-measurement principle provides the most physically honest answer to the question every pilot needs answered: how far can I actually see down the runway?

The modern transmissometer has evolved far beyond its mid-century ancestor. Full-spectrum LED sources, laser auto-alignment, window-pollution compensation, temperature compensation, automatic weather-phenomenon identification, and synchronized self-calibration have transformed a temperamental instrument into a reliable, low-maintenance, safety-critical sensor.

For airport operators, the decision framework is clear. If precision-approach operations — CAT II, CAT III, or a planned upgrade path — are part of your airport's future, the transmissometer is not an option; it is the reference-grade choice that regulators and pilots trust. Match the feature set to your environment, run a 10-year total-cost-of-ownership analysis, and prioritize the features that keep the instrument accurate and available through every season.

Frequently Asked Questions

Q: What is the difference between RVR and general visibility?

General visibility is a point measurement of atmospheric clarity. RVR is the specific distance a pilot can see runway markings and lights, computed at three runway locations using transmittance, light intensity, and background luminance. RVR, not general visibility, governs approach minima.

Q: Do I need a transmissometer for CAT I operations?

ICAO requires RVR measurement for precision-approach runways, which includes CAT I. Forward scatter meters are an acceptable alternative for CAT I under WMO guidance, but transmissometers provide superior low-visibility accuracy if a CAT II/III upgrade is planned.

Q: How often should a transmissometer be calibrated?

With synchronized self-calibration, manual calibration intervals extend to quarterly or longer. Traditional standalone systems typically require monthly manual calibration. Always follow the manufacturer's schedule and your national regulator's requirements.

Q: Can one transmissometer measure the whole runway?

No. ICAO requires three RVR positions — touchdown zone, mid-point, and stop-end — because low-visibility conditions are rarely uniform along the runway. Three separate sensors are required for full compliance.

Q: How does a transmissometer perform in snow?

The direct-measurement principle remains valid in snow, but blowing snow can cause rapid fluctuation. Automatic weather-phenomenon identification helps the system distinguish snow from other obscurants and apply appropriate processing.

Q: What is the typical baseline length?

Aviation-grade transmissometers typically use a 75-meter baseline, representing a compromise between low-visibility sensitivity and practical siting constraints.

Q: What power and connectivity do transmissometers require?

Standard mains power with UPS backup is typical, given the safety-critical nature of the data. Connectivity requirements include integration with METAR/SPECI generation systems and ATC displays via standard aviation interfaces.

For technical specifications, pricing, or to arrange a demonstration of the Haisen Global transmissometer at your facility, contact our meteorological systems team at NPL2WY@163.COM. Serving airports across the Middle East, Africa, Europe, and Asia.
