1. What Is Light Intensity Measurement?

Light intensity measurement is the quantitative process of determining the brightness or luminous flux of a light source as perceived by the human eye. It sits at the intersection of physics, engineering, and human perception, drawing on photometry — the science of measuring visible light in units that account for the eye's spectral sensitivity. Unlike radiometry, which measures all electromagnetic radiation regardless of human visibility, photometric measurement focuses specifically on the wavelength range of 380 to 780 nanometers, the band the human eye can detect.

In practical terms, light intensity measurement answers a deceptively simple question: How bright is the light? But the answer depends on what exactly you are measuring — the total light emitted by a source, the light falling on a surface, the brightness of a surface as seen by an observer, or the light intensity in a specific direction. Each of these requires different instruments, different units, and different methodologies.

The importance of accurate light intensity measurement spans virtually every industry. In aviation, it ensures runway lighting meets visibility standards for safe landings. In workplace design, it guarantees that employees have sufficient illumination to work safely and comfortably. In agriculture, it optimizes greenhouse lighting for maximum crop yield. In museums and archives, it protects irreplaceable artifacts from light-induced degradation. In manufacturing, it supports quality control for displays, LEDs, and automotive lighting. The global light measurement market is projected to exceed USD 2.5 billion by 2030, driven by the rapid adoption of LED technology, smart lighting systems, and stringent workplace safety regulations.

This guide provides a comprehensive overview of light intensity measurement — from the fundamental physics and key terminology to instrument selection, international standards, industry applications, and emerging technologies. Whether you are an engineer specifying lighting for a new facility, a quality-control manager testing LED products, or a researcher developing next-generation photonic sensors, this resource will equip you with the knowledge to make informed decisions.

2. The Science Behind Light Intensity Measurement

To un

derstand light intensity measurement, one must first understand how light is quantified. Visible light is a narrow band of the electromagnetic spectrum, and the human eye does not respond equally to all wavelengths within this band. The eye's peak sensitivity occurs at approximately 555 nanometers (green-yellow light) under photopic (daylight) conditions, and shifts to around 507 nanometers under scotopic (low-light) conditions. This spectral sensitivity curve is formalized as the V(λ) function by the International Commission on Illumination (CIE).

All photometric measurements are weighted by this V(λ) curve. This means that a radiometric measurement (which counts all photons equally) will differ from a photometric measurement (which weights photons by how the eye perceives them). For example, a 10-watt green LED will produce a much higher photometric value than a 10-watt red LED of the same radiant flux, because the eye is far more sensitive to green light than to red.

The fundamental photometric quantities form a hierarchy based on what is being measured:

· Luminous Flux: the total luminous flux emitted by a source in all directions, measured in lumens (lm).

· Luminous Intensity: the luminous flux per unit solid angle in a given direction, measured in candela (cd).

· Illuminance: the luminous flux incident on a surface per unit area, measured in lux (lx = lm/m²).

· Luminance: the luminous intensity emitted from a surface per unit area in a given direction, measured in cd/m² (also called nits).

These four quantities are related but distinct. Confusing them is one of the most common errors in light measurement. A simple analogy: luminous flux is like the total water output of a sprinkler; luminous intensity is how much water goes in one direction; illuminance is how much water lands on a specific patch of lawn; and luminance is how wet that patch appears from a particular viewpoint.

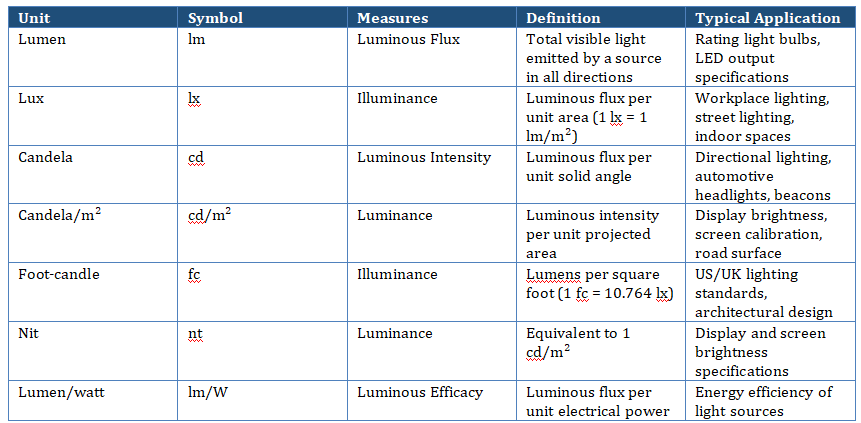

3. Key Units and Terminology

A critical point for international work: the lux is the SI unit used worldwide, while the foot-candle remains common in the United States and the United Kingdom. The conversion factor is straightforward: 1 foot-candle = 10.764 lux. When working across regulatory jurisdictions, always verify which unit system a standard specifies.

4. Types of Light Measurement Instruments

Different measurement objectives require different instruments. The four primary categories of light measurement devices each serve distinct purposes, and selecting the wrong instrument type is a frequent source of measurement error.

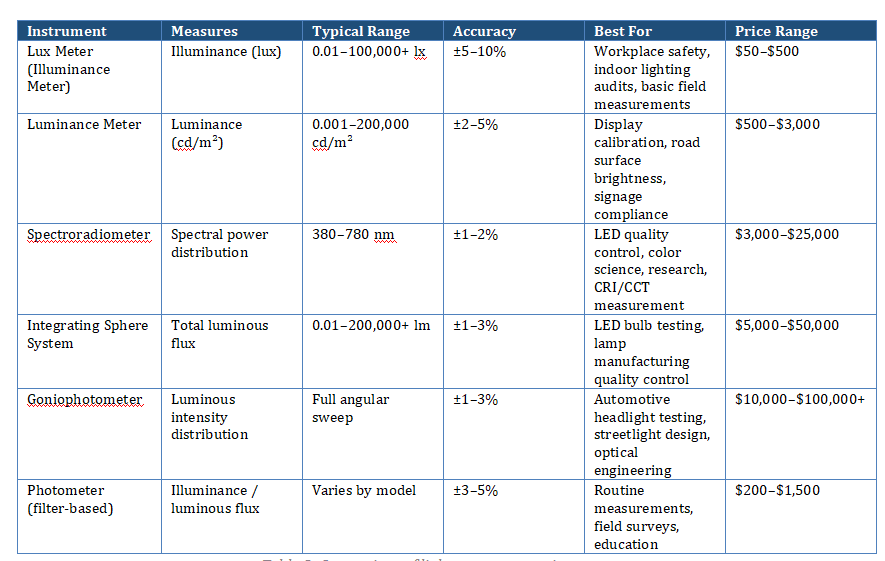

Below is a detailed comparison of the most commonly used light measurement instruments:

The lux meter is by far the most widely used instrument for general light intensity measurement. It uses a photodiode or photovoltaic cell coupled with a V(λ)-correcting filter to approximate the human eye's spectral response. Modern digital lux meters offer features such as data logging, Bluetooth connectivity, and compliance with Class A or Class B accuracy specifications defined in DIN 5032 and CIE standards.

For applications requiring spectral information — such as measuring the Color Rendering Index (CRI) or Correlated Color Temperature (CCT) of an LED — a spectroradiometer is essential. Unlike filter-based photometers that produce a single weighted value, spectroradiometers capture the complete spectral power distribution of the light source, enabling detailed color analysis and traceability to national measurement standards.

5. Applications Across Industries

5.1 Aviation and Airport Lighting

In aviation, light intensity measurement is a matter of life and death. Runway edge lights, approach lighting systems, and precision approach path indicators (PAPI) must meet strict photometric standards defined by ICAO Annex 14. Each light fixture must produce specific luminous intensity values in defined beam patterns to ensure pilots can see the runway environment under all weather conditions. Portable luminance meters and specialized goniophotometers are used to verify that runway lighting meets these requirements during routine inspections and after maintenance.

5.2 Workplace and Occupational Safety

Occupational health and safety regulations worldwide mandate minimum illuminance levels for different work environments. The European standard EN 12464-1 specifies minimum maintained illuminance values ranging from 50 lux for circulation areas to 5,000 lux for extremely demanding visual tasks. OSHA in the United States sets similar requirements. Employers must conduct periodic illuminance surveys using calibrated lux meters to demonstrate compliance and protect worker health.

5.3 Agriculture and Horticulture

Modern greenhouse and vertical farming operations rely on precise light measurement to optimize plant growth. Photosynthetically Active Radiation (PAR) sensors measure light in the 400–700 nm range relevant to plant photosynthesis, while quantum meters provide daily light integral (DLI) data. Light intensity measurement ensures that supplemental LED grow lights deliver the optimal photon flux for each crop species and growth stage, maximizing yield while minimizing energy costs.

5.4 Museum and Archival Conservation

Light is one of the most damaging agents for cultural heritage materials. Organic materials — textiles, paper, photographs, and paintings — are particularly vulnerable to photochemical degradation. Museum conservators use lux meters with UV sensors to monitor and control light exposure, typically limiting illuminance to 50 lux for sensitive materials and 200 lux for moderately sensitive objects. Cumulative light exposure (lux-hours) is tracked to ensure that annual dose limits are not exceeded.

5.5 Display and Electronics Manufacturing

Display manufacturers use luminance meters and spectroradiometers to calibrate screens during production. Consistent brightness, uniform color temperature, and proper white point are critical quality parameters for everything from smartphone displays to large-format digital signage. Automated measurement systems integrate with production lines to test every unit against tight tolerances.

6. International Standards and Regulations

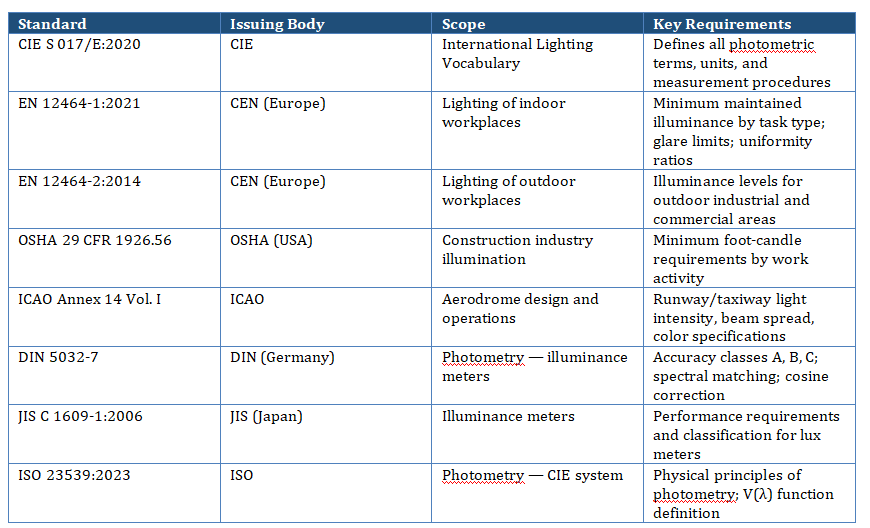

Light intensity measurement is governed by a framework of international, regional, and national standards. These standards define measurement methodologies, accuracy classes, calibration requirements, and acceptable illuminance levels for various applications. Compliance with the relevant standard is often a legal requirement, not merely a best practice.

Physical principles of photometry; V(λ) function definition

Organizations operating internationally must be aware that standards are not always harmonized. For example, EN 12464-1 requires minimum maintained illuminance values with specific maintenance factors, while OSHA standards specify minimum illuminance without explicit maintenance factor calculations. When designing lighting for multinational projects, engineers should design to the most stringent applicable standard.

7. How to Choose the Right Light Measurement Device

Selecting the appropriate light measurement instrument requires careful consideration of several factors. The wrong choice can lead to inaccurate measurements, regulatory non-compliance, or wasted investment. Below is a structured approach to making this decision.

7.1 Define Your Measurement Objective

First, determine exactly what you need to measure. Are you measuring the light falling on a surface (illuminance, lux), the brightness of a surface as perceived (luminance, cd/m²), the total light output of a source (luminous flux, lumens), or the spectral characteristics of a light source (spectroradiometry)? Each objective points to a different instrument category. Attempting to measure luminance with a lux meter, or vice versa, is a common and costly mistake.

7.2 Consider Accuracy and Standards Compliance

If your measurements need to comply with a specific standard (e.g., EN 12464, OSHA, ICAO), verify that the instrument meets the accuracy class required by that standard. DIN 5032-7 defines three accuracy classes for illuminance meters: Class A (±5% after calibration), Class B (±10%), and Class C (±20%). For regulatory compliance and quality-control applications, Class A instruments are typically required.

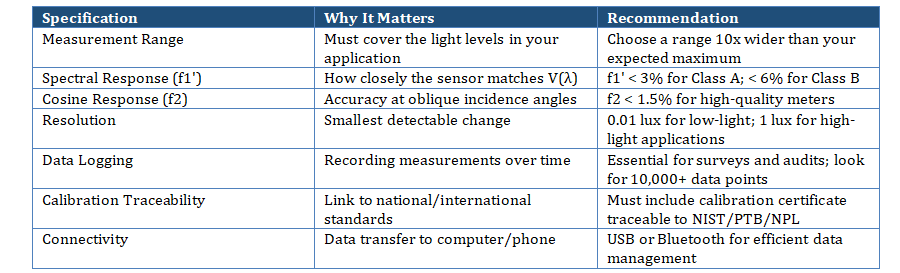

Table 4: Key specifications when selecting a light measurement device

7.4 Budget and Total Cost of Ownership

Beyond the initial purchase price, consider calibration costs (typically annual), accessory needs (carrying cases, tripods, software licenses), and training requirements. A seemingly inexpensive meter that requires frequent recalibration or lacks data-management software may cost more over its lifetime than a higher-quality instrument.

8. Best Practices for Accurate Light Intensity Measurement

Even with the best instrument, measurement accuracy depends on proper technique. The following best practices apply across most light intensity measurement scenarios:

· Calibration

Currency: Verify that your instrument has been calibrated within the last 12 months. Calibration drift is inevitable, and using an expired instrument invalidates results.

· Warm-Up Time: Allow the meter to stabilize in the measurement environment for at least 5–10 minutes. Temperature changes affect sensor sensitivity and electronics.

· Sensor Positioning: Place the sensor at the exact point of measurement, oriented correctly. For illuminance measurements, the sensor must be parallel to the work surface.

· Avoid Obstruction: Ensure the operator's body does not cast shadows on the sensor. Use a remote sensor head or extension cable when necessary.

· Multiple Readings: Take multiple readings (minimum 3) at each point and average them. Note any readings that deviate by more than 10% from the mean.

· Account for Mains Voltage: Stable AC mains voltage is important when measuring artificial lighting. Voltage fluctuations of 5% can cause illuminance changes of 10% or more.

· Document Environmental Conditions: When measuring outdoors, record sky conditions, time of day, and cloud cover. These factors dramatically affect daylight illuminance.

· Maintain Records: Keep a standardized measurement log with date, time, location, instrument serial number, calibration date, and all readings.

9. Emerging Technologies in Light Measurement

The field of light intensity measurement is evolving rapidly, driven by advances in sensor technology, connectivity, and artificial intelligence. Several emerging trends are reshaping how light is measured and managed.

9.1 Smartphone-Based Photometry

Modern smartphones contain ambient light sensors that, while not laboratory-grade, can provide approximate illuminance readings with the right software. Several research groups have developed calibration protocols that achieve ±15–20% accuracy using smartphone sensors, making them useful for quick field estimates and citizen-science projects. However, they should never replace calibrated instruments for regulatory compliance or quality control.

9.2 IoT-Enabled Light Monitoring Networks

The integration of light sensors into IoT networks enables continuous, real-time monitoring of illuminance across large facilities. Smart lighting systems use this data to adjust output dynamically, optimizing energy consumption while maintaining compliance with illuminance standards. In smart cities, networked luminance sensors monitor street lighting performance and detect failures automatically.

9.3 AI-Assisted Measurement and Analysis

Artificial intelligence is being applied to light measurement data in several ways. Machine learning algorithms can identify patterns in spectral data that indicate LED degradation before it becomes visible. Computer vision systems can estimate illuminance from camera images, enabling large-scale lighting surveys without point-by-point measurements. Predictive analytics can forecast maintenance needs based on accumulated light output data.

9.4 Miniaturized Spectroradiometers

Advances in micro-electromechanical systems (MEMS) and semiconductor technology have produced spectroradiometers small enough to fit in a pocket. These devices, costing a fraction of traditional benchtop spectroradiometers, bring spectral measurement capabilities to field applications that were previously impractical. While their accuracy does not yet match laboratory instruments, they are transforming how spectral data is collected in the field.

10. Common Mistakes and How to Avoid Them

Even experienced practitioners make errors in light intensity measurement. Awareness of these common pitfalls can help you avoid them:

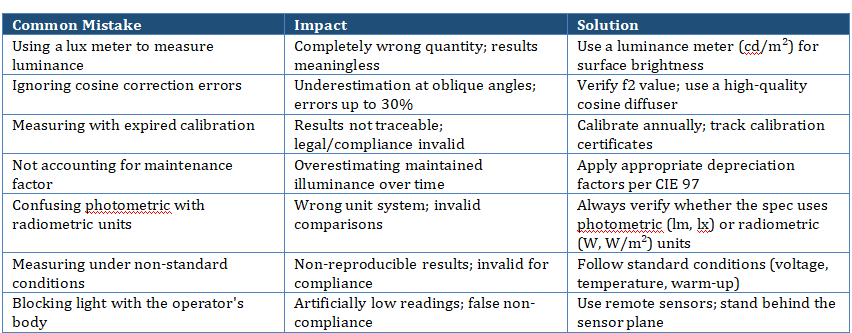

Table 5: Common light measurement mistakes and solutions

11. Frequently Asked Questions

This FAQ section addresses the most common questions about light intensity measurement, optimized for both traditional search and AI-generated search results.

Q: What is the difference between lux and lumens?

A: Lumens me

asure the total luminous flux emitted by a light source in all directions, while lux measures the illuminance — the luminous flux falling on a surface per unit area. One lux equals one lumen per square meter. A 1,000-lumen bulb produces different lux values depending on the distance and area it illuminates: at 1 meter distance, it produces approximately 80 lux over a 1-square-meter surface, but only about 20 lux at 2 meters.

Q: How often should a lux meter be calibrated?

A: Lux meters should be calibrated at least once every 12 months, as recommended by CIE and most national metrology institutes. High-usage instruments in industrial environments may require more frequent calibration (every 6 months). Always use a calibration laboratory that is accredited to ISO/IEC 17025 and provides traceability to national standards such as NIST (USA), PTB (Germany), or NPL (UK).

Q: What is the ideal illuminance level for an office workspace?

A: According to EN 12464-1:2021, the recommended maintained illuminance for typical office tasks (reading, writing, typing) is 500 lux on the task area. For demanding visual tasks such as technical drawing or CAD work, 750–1,000 lux is recommended. Circulation areas and corridors require 100–200 lux. These values assume appropriate glare control and uniformity ratios.

Q: Can I use a smartphone as a lux meter?

A: Smartphones can provide approximate illuminance readings using their built-in ambient light sensors, but accuracy is typically limited to ±15–20% at best. They are useful for quick estimates and relative comparisons but should not be used for regulatory compliance, quality control, or any application requiring traceable accuracy. For professional measurements, a calibrated lux meter meeting DIN 5032 Class A or B is required.

Q: What is the difference between illuminance and luminance?

A: Illuminance (lux) measures the light falling onto a surface, regardless of the surface's reflectance. Luminance (cd/m²) measures the light reflected or emitted from a surface as perceived by an observer. A white wall and a black wall in the same room receive the same illuminance, but the white wall has much higher luminance because it reflects more light. Luminance is what the human eye actually perceives as brightness.

Q: What instruments are needed to measure airport runway light intensity?

A: Airport runway lighting measurement requires specialized equipment including portable luminance meters for approach and runway surface brightness assessment, and goniophotometric systems for verifying the beam pattern and luminous intensity distribution of individual light fixtures. Measurements must comply with ICAO Annex 14 requirements, which specify minimum luminous intensity values for each light category (approach, threshold, edge, centerline, etc.) under different visibility conditions.

12. Conclusion

Light intensity measurement is a foundational discipline that underpins safety, quality, and efficiency across virtually every industry. From ensuring that an office worker can see their screen clearly, to verifying that a runway's approach lights guide a pilot safely to the ground, accurate photometric measurement is invisible in daily life but indispensable in its absence.

As this guide has demonstrated, effective light intensity measurement requires more than simply pointing a meter at a light source. It demands an understanding of the underlying photometric principles, the correct selection of instruments for the measurement objective, compliance with relevant international standards, and adherence to established best practices. The rapid evolution of LED technology, smart lighting systems, and IoT-connected sensors is creating new measurement challenges and opportunities, making ongoing education in this field more important than ever.

Whether you are conducting a workplace illuminance survey, calibrating a display production line, or specifying lighting for a new airport, the principles and practices outlined in this guide provide the foundation for accurate, compliant, and meaningful light intensity measurement. Invest in quality instruments, maintain rigorous calibration schedules, document your measurements thoroughly, and stay current with evolving standards. The light you measure today ensures the safety and quality of tomorrow.
