DME in Aviation: Key Tech for Safe Navigation

In the dynamic landscape of modern aviation, DME in Aviation Technology stands as a cornerstone of safe and efficient flight operations. As air traffic grows globally and weather-related challenges persist, this distance-measuring tool remains indispensable for pilots, air traffic controllers, and aviation operators alike. Without reliable DME systems, achieving the precision required for takeoffs, en-route navigation, and low-visibility landings would be significantly harder—putting both aircraft and passengers at risk. This blog dives deep into how DME works, its critical applications, system types, antenna design, testing protocols, and future innovations, equipping aviation professionals with the insights needed to optimize their navigation infrastructure.

1. What Is DME in Aviation Technology?

Before exploring its real-world impact, it’s essential to define DME in Aviation Technology and its core functionality. DME, short for Distance Measuring Equipment, is a radio-based navigation system that calculates the straight-line (slant) distance between an aircraft and a ground-based DME station. Unlike visual cues or basic radar, DME provides precise, real-time distance data—critical for operations where visibility or terrain might obscure other navigational aids.

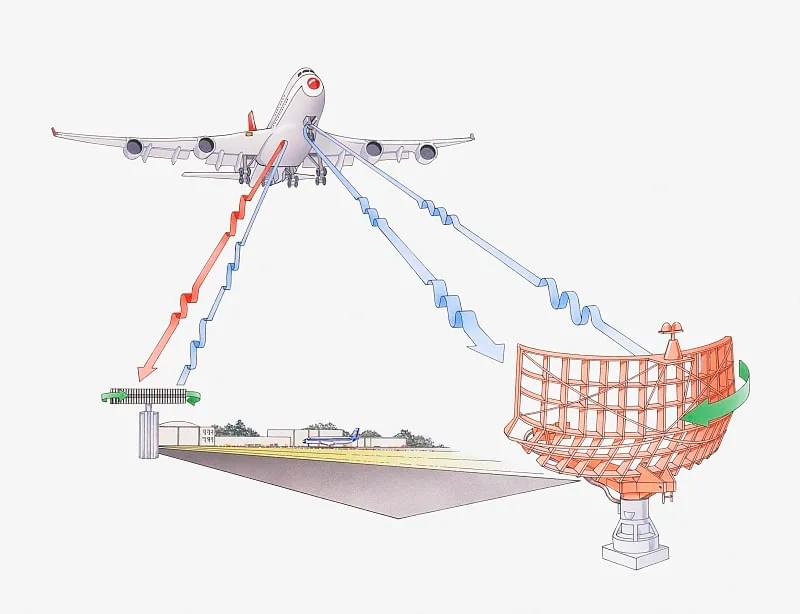

How DME Works: The Signal Exchange Process

DME operates on a simple yet highly reliable principle: time-of-flight signal transmission. Here’s a step-by-step breakdown of its functionality:

1. The aircraft’s airborne DME unit sends a coded radio signal to a ground-based DME station (typically co-located with other navigational aids like VOR or ILS).
2. The ground station receives the signal, processes it, and immediately transmits a reply signal back to the aircraft.
3. The airborne unit measures the time delay between sending the original signal and receiving the reply.
4. Using the speed of radio waves (approximately 300,000 km/s), the unit calculates distance:

• Distance (nautical miles) = (Time Delay × Speed of Radio Waves) / 2

(The division by 2 accounts for the signal traveling to the ground station and back to the aircraft.)

This process repeats continuously, updating distance data every 0.5 to 2 seconds—ensuring pilots always have the latest positional information.

Why DME Differs from Other Navigation Tools

While GPS and inertial navigation systems (INS) are widely used today, DME in Aviation Technology offers unique advantages that make it irreplaceable:

• Reliability in GPS-denied environments: Jamming, satellite outages, or remote terrain (e.g., mountainous regions) can disrupt GPS. DME, being ground-based, remains operational in these scenarios.
• Slant distance accuracy: Unlike GPS, which provides horizontal distance to a waypoint, DME calculates slant distance (aircraft to ground station)—critical for approach procedures where altitude and distance must be perfectly aligned.
• Integration with legacy systems: Most aircraft and air traffic control (ATC) infrastructure are designed to work with DME, making it a cost-effective complement to newer technologies.

2. Core Applications: What Is DME in Aviation Used For?

DME in Aviation Technology is not a single-purpose tool—it supports multiple critical phases of flight, from takeoff to landing. Its versatility makes it a non-negotiable component of modern aviation safety. Below are its most impactful uses:

2.1 Navigation and En-Route Precision

During en-route flight (the phase between takeoff and approach), pilots rely on DME to maintain their intended flight path and avoid airspace conflicts. For example:

• Waypoint tracking: DME stations are often paired with VOR (VHF Omnidirectional Range) stations to create “VOR-DME” waypoints. Pilots use these waypoints to confirm they are on course—e.g., “Cross VOR-DME Waypoint X at 10,000 feet.”
• Distance-based altitude adjustments: ATC may instruct pilots to “Descend to 5,000 feet when 20 NM (nautical miles) from DME Station Y.” This ensures aircraft maintain safe vertical separation from other flights.
• Terrain avoidance: In mountainous areas, DME helps pilots verify their distance from high terrain. For instance, if a DME station is located near a mountain range, a pilot can use distance data to ensure they are above the minimum safe altitude (MSA).

2.2 Enhancing Landing Safety (Especially in Low Visibility)

Landings are the most critical phase of flight, and DME in Aviation Technology plays a pivotal role in ensuring precision—even when visibility is poor (e.g., fog, rain, or night operations). Its integration with the Instrument Landing System (ILS) is particularly vital:

• ILS/DME approaches: ILS provides lateral (left/right) and vertical (up/down) guidance for landing, but DME adds distance data. For example, a pilot might be instructed to “Maintain glide path until 2 NM from DME Station Z, then flare for landing.”
• Decision height (DH) alignment: In low-visibility conditions, pilots must reach a specific DH (e.g., 200 feet) before deciding to land or go around. DME confirms the aircraft’s distance from the runway, ensuring the DH is reached at the correct position.
• Backup for GPS failures: If GPS malfunctions during approach, DME serves as a reliable backup—preventing missed approaches or unsafe landings.

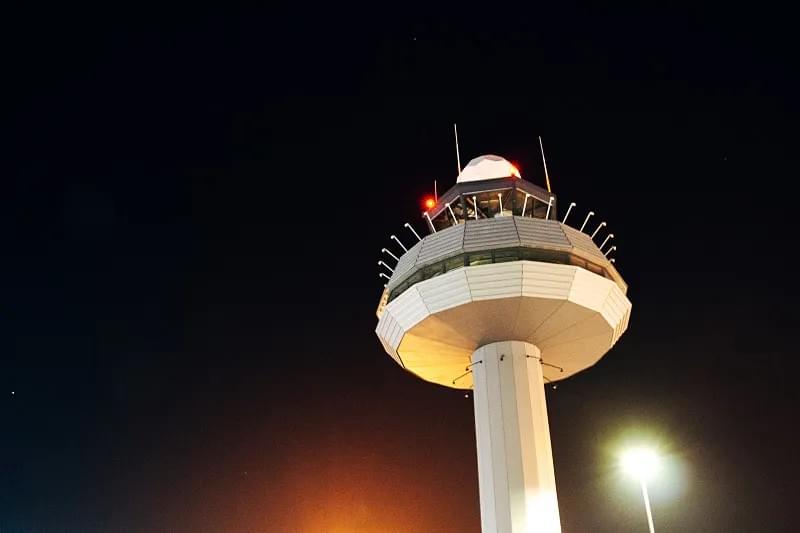

2.3 Supporting Air Traffic Management (ATM)

DME in Aviation Technology is not just for pilots; it’s a critical tool for ATC to manage air traffic efficiently:

• Safe separation: ATC uses DME data to ensure aircraft maintain minimum horizontal separation (e.g., 5 NM in en-route airspace). This reduces the risk of mid-air collisions, especially in congested airspace (e.g., near major airports).
• Traffic flow optimization: By tracking aircraft distance from DME stations, ATC can sequence flights for takeoff and landing more efficiently. For example, “Flight A is 15 NM from Station X—clear for approach after Flight B, which is 8 NM out.”
• Remote airspace coverage: In regions with limited radar coverage (e.g., oceanic or rural areas), DME provides ATC with essential positional data—ensuring flights remain on track and visible to controllers.

3. Types of DME in Aviation Technology

Not all DME systems are the same—they are categorized based on their location (ground or airborne) and technical capabilities. Understanding these types helps aviation operators choose the right equipment for their needs.

3.1 Ground-Based DME Systems

Ground-based DME stations are fixed installations located at airports, along flight routes, or near critical waypoints. They are classified into two main types:

• DME/N (Normal): The most common type, designed for general aviation use. It operates on UHF frequencies (962–1213 MHz) and provides distance accuracy within ±0.25 NM or 3% of the measured distance (whichever is larger). DME/N stations are often co-located with VOR or ILS to create integrated navigational aids.
• DME/P (Precision): Used for high-precision operations, such as military flights or commercial airliners during critical approaches. DME/P offers enhanced accuracy (±0.1 NM or 1% of the measured distance) and faster update rates (up to 1 Hz). It is also more resistant to signal interference.

Advantages of Ground-Based DME:

• Consistent performance in all weather conditions (rain, snow, fog).
• Low maintenance costs compared to satellite-based systems.
• Wide coverage: A single DME station can cover up to 200 NM of airspace (depending on altitude).

3.2 Airborne DME Equipment

Airborne DME units are installed on aircraft and work in tandem with ground-based stations. They are available in three main configurations:

• Panel-Mounted DME Receivers: Found in most commercial and private aircraft, these units display distance data on a dedicated screen or a multi-function display (MFD). They are lightweight (typically 1–2 kg) and easy to integrate with other avionics.
• Integrated DME Modules: Part of a larger avionics suite (e.g., Garmin G1000 or Honeywell Primus Epic), these modules combine DME with GPS, VOR, and ILS functionality. They provide seamless data sharing between systems, reducing pilot workload.
• Portable DME Units: Used in small aircraft or as a backup for primary systems. These battery-powered devices are compact (about the size of a tablet) and can be mounted on the dashboard.

Key Features of Airborne DME:

• Redundancy: Most commercial aircraft have two or more DME units to ensure failure tolerance.
• Signal filtering: Advanced units reduce noise and interference from other radio systems (e.g., transponders).
• Compatibility: Works with all ground-based DME stations (DME/N and DME/P).

3.3 Comparison of DME Technologies

To help you choose the right system, here’s a side-by-side comparison of ground-based and airborne DME, plus how they stack up against GPS:

4. The Role of DME Antennas in Aviation

A DME in Aviation Technology system is only as good as its antenna—without a well-designed, properly placed antenna, signal reception and transmission will suffer. DME antennas are critical for ensuring clear communication between airborne units and ground stations.

4.1 Structure and Design of DME Antennas

DME antennas are engineered to withstand the harsh conditions of flight (extreme temperatures, turbulence, and moisture) while maintaining signal integrity. Key design features include:

• Material: Most antennas are made of aluminum or composite materials (lightweight and corrosion-resistant).
• Shape: Two common designs:
• Blade antennas: Thin, aerodynamic blades mounted on the aircraft’s fuselage (reduces drag).
• Whip antennas: Short, flexible rods used in small aircraft (easy to install and maintain).
• Frequency Range: Tuned to UHF frequencies (962–1213 MHz) to match DME system requirements.

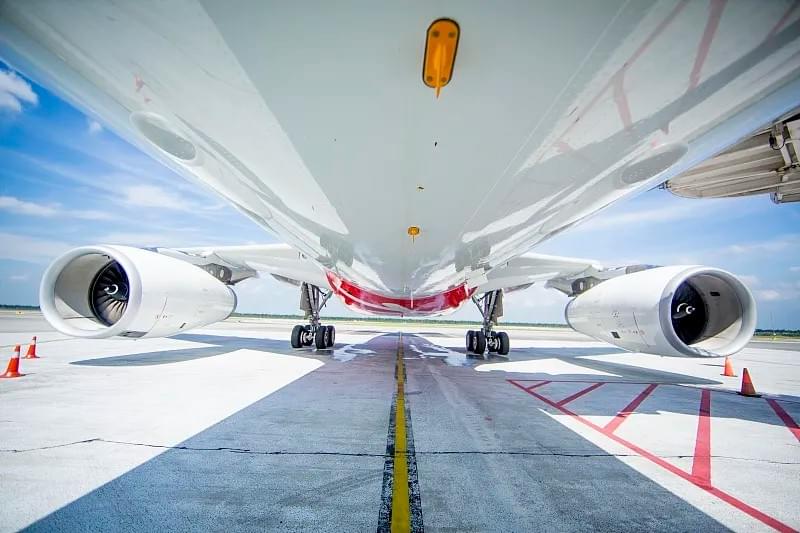

4.2 Placement on Aircraft

Antenna placement is critical for minimizing interference and maximizing signal strength. Aviation engineers follow strict guidelines:

• Fuselage vs. Wings: Blade antennas are typically mounted on the belly or tail of the fuselage (avoids interference from engine noise). Whip antennas may be placed on the wings for small aircraft.
• Clear Line of Sight: Antennas must have an unobstructed view of the ground—avoiding placement near landing gear, fuel tanks, or other metal components (which can block signals).
• Redundancy: Commercial aircraft often have two DME antennas (one on the front, one on the rear) to ensure coverage if one fails.

4.3 How Antennas Improve DME Performance

A well-designed DME antenna enhances system performance in three key ways:

• Reduced Signal Loss: Low-loss materials and optimal placement minimize signal attenuation (weakening) during transmission.
• Interference Rejection: Shielding around the antenna blocks noise from other onboard systems (e.g., radios, transponders).
• Consistent Coverage: 360-degree signal reception ensures the aircraft can communicate with ground stations from any direction.

5. DME Aviation Test Procedures: Ensuring Reliability

DME in Aviation Technology must meet strict safety standards—regular testing is non-negotiable to prevent malfunctions that could lead to accidents. Below are the key test procedures used by aviation technicians.

5.1 Why Testing Is Critical

A faulty DME system can provide inaccurate distance data, leading to:

• Missed approaches or unsafe landings.
• Airspace conflicts (e.g., aircraft flying too close to each other).
• Terrain collisions in remote areas.

Testing ensures DME systems meet the standards set by the International Civil Aviation Organization (ICAO) and national regulators (e.g., FAA in the U.S., EASA in Europe).

5.2 Common Testing Methods

Technicians use a range of methods to test ground-based and airborne DME systems:

5.3 Frequency of Testing

Testing schedules vary based on system type and usage:

• Ground-based DME stations: Monthly range checks, quarterly signal quality tests, and annual environmental tests.
• Airborne DME units: Tested during every aircraft maintenance check (typically every 100–500 flight hours).
• DME antennas: Inspected for damage (e.g., cracks, corrosion) during each maintenance check; performance tested annually.

6. The Future of DME in Aviation Technology

As aviation evolves, DME in Aviation Technology is not being replaced—it’s being enhanced. Below are the key innovations shaping the future of DME:

6.1 Digital DME Systems

Traditional DME uses analog signals, but digital DME is emerging as a game-changer. Key benefits include:

• Higher accuracy: Digital signals reduce noise, improving distance accuracy to ±0.05 NM.
• Faster update rates: Up to 5 Hz (vs. 1 Hz for analog), providing near-real-time data.
• Data integration: Digital DME can share data with other digital systems (e.g., ADS-B, NextGen) to create a more connected air traffic network.

6.2 AI-Powered DME Monitoring

Artificial intelligence (AI) is being integrated into DME systems to predict failures before they occur. AI algorithms analyze:

• Signal strength trends.
• Temperature and moisture data.
• Historical maintenance records.

This allows technicians to schedule repairs proactively—reducing downtime and improving safety.

6.3 Miniaturized DME Equipment

For small aircraft and drones, miniaturized DME units are being developed. These units are:

• Lightweight (≤500 grams).
• Low-power (runs on battery for up to 10 hours).
• Cost-effective (up to 50% cheaper than traditional units).

This expands the use of DME to new segments of aviation, such as urban air mobility (UAM) and drone delivery.

6.4 Integration with Next-Generation Navigation Systems

The FAA’s NextGen and EASA’s SESAR (Single European Sky ATM Research) programs are designed to modernize air traffic management. DME in Aviation Technology will play a key role in these programs by:

• Acting as a backup for GPS in NextGen’s Performance-Based Navigation (PBN) system.
• Providing distance data for SESAR’s “4D Trajectory Management” (which optimizes flight paths based on time, altitude, and distance).

7. Why Your Aviation Operation Needs Reliable DME Systems

If you’re an aviation operator—whether you run a commercial airline, private charter service, or air traffic control facility—investing in reliable DME in Aviation Technology is essential. Here’s why:

• Compliance: Regulators like the FAA and EASA require DME for most commercial flights (especially those operating in instrument meteorological conditions, or IMC).
• Safety: DME reduces the risk of accidents by providing precise distance data during critical flight phases.
• Efficiency: By optimizing flight paths and reducing missed approaches, DME lowers fuel costs and improves on-time performance.
• Reliability: Unlike GPS, DME works in all environments—ensuring your operations aren’t disrupted by satellite outages or jamming.

How We Can Help

At Haisen Global, we specialize in providing high-quality DME systems and services for aviation operators worldwide. Our offerings include:

• Ground-based DME stations: DME/N and DME/P units designed for maximum reliability and coverage.
• Airborne DME equipment: Panel-mounted, integrated, and portable units compatible with all aircraft types.
• DME antennas: Aerodynamic, corrosion-resistant antennas for commercial and small aircraft.
• Testing and maintenance: ICAO-compliant testing services to keep your DME systems in top condition.

With over 20 years of experience in aviation technology, we’ve helped 500+ operators improve their navigation safety and efficiency. Contact our team today to learn how we can tailor a DME solution to your needs.

Conclusion

DME in Aviation Technology is more than just a distance-measuring tool—it’s a lifeline for safe, efficient flight operations. From its role in low-visibility landings to its integration with next-generation navigation systems, DME remains a critical component of modern aviation. As air traffic grows and technology evolves, investing in reliable DME systems will only become more important.

Whether you’re upgrading your existing DME equipment, testing your systems for compliance, or exploring future innovations, Haisen Global is here to support you. Reach out to us today to discuss your DME needs—and take the first step toward safer, more efficient flights.
