Why the Approach Lighting System Is Non-Negotiable for Airports

An Approach Lighting System (ALS) is the backbone of airport safety, providing pilots with critical visual cues to align with runways, judge altitude, and navigate final landings—especially in low-visibility conditions like fog, rain, or darkness. Without a reliable ALS, airports face heightened risks of misaligned aircraft, missed approaches, costly delays, and even accidents.

Beyond safety, the ALS directly impacts operational efficiency and regulatory compliance. For commercial airports, a malfunctioning ALS can disrupt flight schedules, increase fuel and labor costs, and damage passenger trust. For all airports—small regional fields to large international hubs—meeting standards from bodies like the International Civil Aviation Organization (ICAO), Federal Aviation Administration (FAA), and European Union Aviation Safety Agency (EASA) is mandatory to retain operational certification.

The success of an ALS, however, hinges on two factors: choosing the right system for your airport’s needs and partnering with a trusted provider. This guide distills the essentials to help you make informed decisions that balance safety, cost, and long-term value.

Types of Approach Lighting Systems: Match to Your Airport’s Size & Needs

Not all ALSs are created equal—your airport’s traffic volume, aircraft types, and local weather dictate the best solution. Below are the four most common types, tailored to specific operational requirements:

Simple Approach Lighting System (SALS)

• Best for: Small airports/regional airfields (annual traffic < 50,000 operations) serving general aviation or small turboprops.
• Key Features: Single row of 20–40 LED lights (200–400 feet from runway threshold); designed for clear weather (visual meteorological conditions, VMC).
• Cost: $20,000–$50,000 (installation).
• Upgrade Option: Solar-powered SALS ($60,000–$80,000) for remote airports with unreliable grid power.

Medium Intensity Approach Lighting System (MALS)

• Best for: Medium-sized airports (50,000–500,000 annual operations) handling regional jets (e.g., Embraer E175) or small airliners (Boeing 737).
• Key Features: Central row + lateral lights (600–1,000 feet total); supports reduced visibility (dawn, dusk, light fog) and FAA Category I standards.
• Variations:
• MALSR (with Runway Alignment Indicator Lights): Enhances alignment for larger aircraft.
• MALSF (with Sequenced Flashing Lights): Boosts visibility in light fog.
• Cost: $100,000–$300,000 (installation).

High Intensity Approach Lighting System (HIALS)

• Best for: Large international airports (> 500,000 annual operations) serving wide-body airliners (e.g., Airbus A350) in fog/rain-prone regions.
• Key Features: Dense high-intensity LED array (1,000–3,000 feet); sequential flashing, redundant power, and integration with precision avionics (ILS/GPS). Meets Category II/III standards (visibility as low as 200 meters).
• Cost: $500,000–$2,000,000 (installation).

Tactical ALS (Military/Specialized)

• Best for: Military airports or temporary bases.
• Key Features: Shock-resistant LED units, infrared (IR) lighting for night-vision goggles (NVGs), and rapid-deployment structures.
• Cost: $300,000–$800,000 (installation, depending on tactical features).

Breaking Down the Key Components of an Effective Approach Lighting System

An Approach Lighting System is more than just a set of lights—it’s a integrated system of components working together to deliver consistent, reliable guidance. Understanding these components is essential for choosing the right Approach Lighting System and ensuring it meets your airport’s needs. Let’s explore each part in detail.

Light Units: The Heart of the Approach Lighting System

Light units are the most visible component of an Approach Lighting System, and their performance directly impacts pilot visibility. There are three main types of light units used in modern Approach Lighting Systems:

• Incandescent Lights: Traditional incandescent bulbs are rarely used in new Approach Lighting Systems due to their short lifespan (1,000–2,000 hours) and high energy consumption. However, some older systems may still rely on them, requiring frequent replacements.
• Halogen Lights: Halogen lights offer brighter output than incandescent bulbs but still consume more energy than LEDs and have a shorter lifespan (5,000–10,000 hours). They are sometimes used in medium-intensity Approach Lighting Systems (MALS) but are being phased out in favor of LEDs.
• LED Lights: LED technology has revolutionized Approach Lighting Systems. LEDs offer:
• Longer Lifespan: Up to 100,000 hours, reducing replacement costs and downtime.
• Energy Efficiency: Consume 70–80% less energy than incandescent bulbs, lowering monthly utility bills.
• Superior Visibility: Provide consistent brightness in extreme weather (freezing temperatures, heavy rain, fog) and can be dimmed or brightened instantly to adapt to ambient light.
• Durability: Resistant to shock and vibration, making them ideal for harsh airport environments.

For most airports, LED light units are the gold standard for Approach Lighting Systems—offering long-term value and reliable performance.

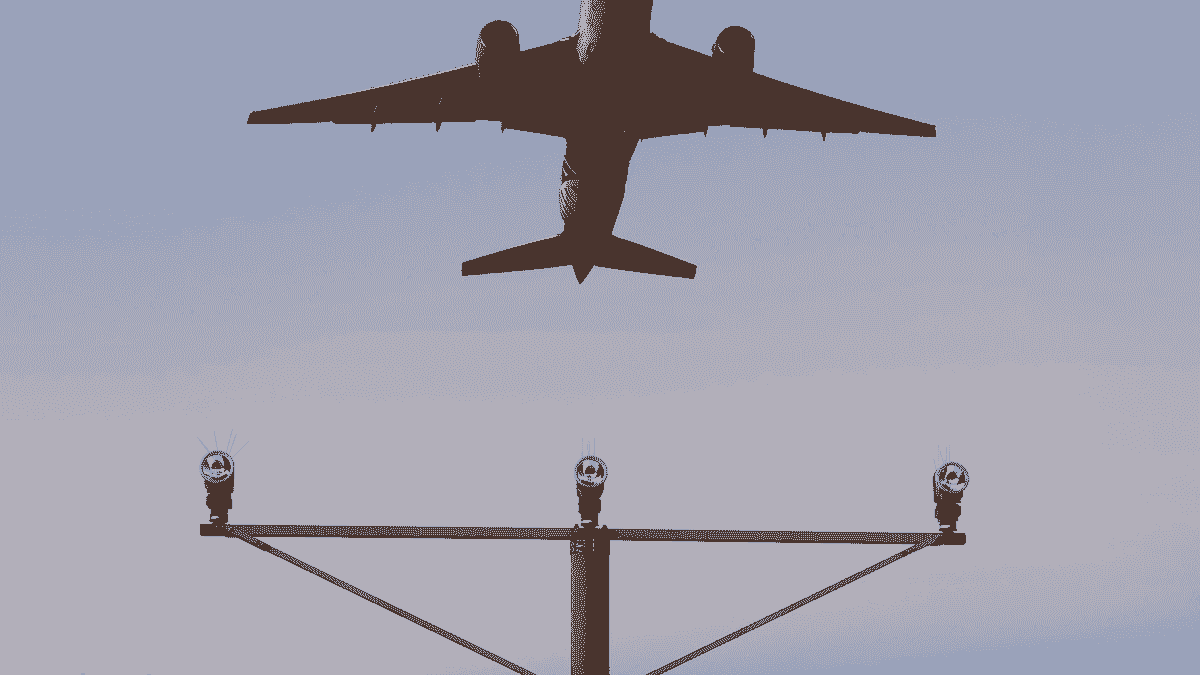

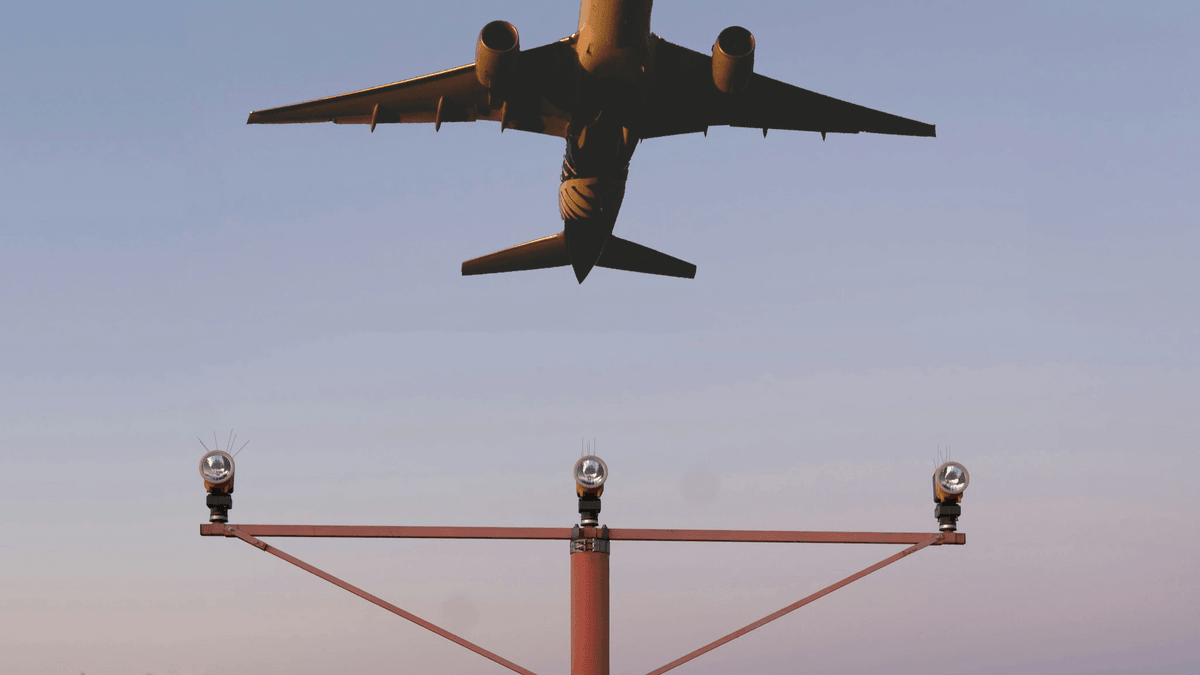

Support Structures: Ensuring Stability and Visibility

Support structures hold the light units in place and must be designed to withstand harsh environmental conditions (strong winds, heavy snow, corrosion) while ensuring the lights are visible from the correct angles. Common types of support structures for Approach Lighting Systems include:

• Poles: Simple, cost-effective poles are used in small Approach Lighting Systems (like SALS) and are typically made of aluminum or galvanized steel. They range in height from 2–5 feet, depending on the system’s configuration.
• Frameworks: More complex frameworks are used in high-intensity Approach Lighting Systems (HIALS) or systems with lateral lights. These frameworks are often made of stainless steel (for corrosion resistance) and are engineered to support multiple light units while maintaining alignment with the runway.

Key considerations for support structures:

• Sturdiness: Must withstand wind loads of up to 150 mph (in hurricane-prone areas) and snow loads of 50+ pounds per square foot (in cold climates).
• Alignment: Positioned to ensure the light units create a continuous visual path for approaching aircraft—with spacing and height calculated to match the runway’s centerline.
• Corrosion Resistance: In coastal airports, support structures should be made of corrosion-resistant materials (like stainless steel) or coated with anti-corrosion paint to prevent damage from saltwater.

Control Systems: Managing the Approach Lighting System’s Performance

The control system is the “brain” of the Approach Lighting System, regulating light intensity, flashing patterns, and operation. Modern control systems offer two key capabilities:

• Automation: Advanced control systems use sensors to monitor ambient light, visibility, and weather conditions, automatically adjusting the Approach Lighting System’s output. For example, if fog rolls in, the system can increase light intensity or activate sequential flashing to enhance visibility.
• Integration: The best control systems integrate with other airport systems, such as:
• Runway lighting: Ensures the Approach Lighting System and runway lights work in sync (e.g., dimming runway lights when the Approach Lighting System is at full intensity).
• Air traffic control (ATC): Allows ATC to adjust the Approach Lighting System remotely, reducing the need for on-site staff.
• Weather monitoring tools: Uses real-time weather data to optimize the Approach Lighting System’s performance (e.g., activating high-intensity mode during heavy rain).

Some control systems also offer remote monitoring, allowing airport staff to check the Approach Lighting System’s status, identify failures, and troubleshoot issues from a central dashboard—saving time and reducing maintenance costs.

Installation Process of an Approach Lighting System

The installation of an approach lighting system is a complex process that requires careful planning, coordination, and adherence to safety standards. The following steps outline the typical installation process for an approach lighting system:

Site Survey and Planning: Before installation begins, a detailed site survey is conducted to assess the terrain, existing infrastructure, and environmental conditions. This helps determine the optimal location and configuration for the approach lighting system. The planning phase also includes obtaining necessary permits and approvals from regulatory authorities, ensuring compliance with local and international standards.

Foundation Construction: The support structures for the approach lighting system require stable foundations to withstand environmental forces. This may involve excavating the ground, pouring concrete footings, or installing anchor bolts. The foundations must be designed to support the weight of the light units and withstand wind loads and other stresses.

Installation of Support Structures: Once the foundations are in place, the support structures (poles or frameworks) are installed. These structures are positioned according to the design specifications, ensuring proper alignment with the runway and correct spacing between lights. The installation team must ensure that the structures are level and secure to prevent movement or collapse.

Wiring and Cabling Installation: The wiring and cabling are installed to connect the light units to the control system and power supply. This involves laying cables underground or along the support structures, ensuring that they are protected from damage and environmental factors. Proper insulation and waterproofing are essential to prevent electrical failures.

Light Unit Installation: The light units are mounted on the support structures, positioned according to the design plan. Each light is tested to ensure it functions correctly, with adjustments made to angle and alignment as needed. The installation team must ensure that all lights are visible from the approach path and that their intensity is consistent across the system.

Control System and Power Supply Setup: The control system is installed and connected to the light units, allowing for centralized management of the approach lighting system. The power supply, including primary and backup systems, is also set up, with testing to ensure reliable operation. The control system may be programmed to adjust light intensity based on ambient conditions or operational requirements.

Testing and Commissioning: Once installation is complete, the entire approach lighting system undergoes rigorous testing to ensure it meets design specifications and regulatory standards. This includes testing each light unit, verifying the control system’s functionality, and simulating various operating conditions (such as low visibility) to assess performance. Any issues identified during testing are addressed before the system is commissioned for operational use.

Maintenance and Inspection of Approach Lighting Systems

Regular maintenance and inspection are essential to ensure the ongoing reliability and performance of an approach lighting system. Neglecting these tasks can lead to system failures, compromising aviation safety and causing operational disruptions. The following are key maintenance and inspection activities for approach lighting systems:

Daily Visual Inspections: Airport personnel conduct daily visual inspections of the approach lighting system to check for obvious issues such as broken lights, damaged support structures, or debris blocking the lights. These inspections are quick but critical, allowing for immediate identification and resolution of minor problems.

Monthly Detailed Inspections: Monthly inspections involve more thorough checks of the approach lighting system, including testing light intensity, verifying the functionality of the control system, and inspecting wiring and cabling for signs of damage. This may also include checking the alignment of light units to ensure they are providing accurate guidance to pilots.

Quarterly Electrical Testing: Quarterly electrical testing focuses on the power supply and control systems, ensuring that they are functioning within specified parameters. This includes testing backup generators, checking battery levels, and verifying the integrity of electrical connections. Any issues with the power supply can be addressed before they lead to system failures.

Annual Comprehensive Inspections: Annual inspections are comprehensive, involving a detailed assessment of all components of the approach lighting system. This includes checking for corrosion, wear and tear on support structures, and the condition of light units. It may also involve testing the system under various weather conditions to ensure performance in low visibility.

Preventive Maintenance: Preventive maintenance activities, such as cleaning light lenses, replacing worn components, and lubricating moving parts, are scheduled regularly to prevent failures. This proactive approach helps extend the lifespan of the approach lighting system and reduces the risk of unexpected breakdowns.

Repair and Replacement: When issues are identified during inspections or maintenance, prompt repair or replacement of components is essential. This may involve replacing faulty light units, repairing damaged wiring, or upgrading outdated control systems. Using high-quality replacement parts ensures that the approach lighting system continues to meet performance standards.

Common Issues and Troubleshooting in Approach Lighting Systems

Like any complex system, approach lighting systems can experience issues that affect their performance. Understanding common problems and their solutions is essential for maintaining the system’s reliability.

Light Failures: One of the most common issues in approach lighting systems is individual light failures, which can be caused by bulb burnout, electrical faults, or damage to the light unit. Troubleshooting involves identifying the failed light, checking the electrical connection, and replacing the bulb or light unit as needed. Regular replacement of bulbs (especially in non-LED systems) can prevent widespread failures.

Control System Malfunctions: Malfunctions in the control system can lead to incorrect light intensity, flashing patterns, or system shutdowns. These issues may be caused by software errors, sensor failures, or electrical problems. Troubleshooting involves checking the control system’s settings, testing sensors, and resetting or updating software. In some cases, replacing faulty components in the control system may be necessary.

Power Supply Problems: Power supply issues, such as outages or voltage fluctuations, can disrupt the operation of the approach lighting system. Backup systems should automatically activate during power outages, but failures in these systems can lead to prolonged downtime. Troubleshooting involves checking the primary and backup power sources, testing generators and batteries, and ensuring that electrical connections are secure.

Alignment Issues: Over time, support structures or light units may shift, leading to misalignment of the approach lighting system. This can cause the lights to be less visible or provide incorrect guidance to pilots. Troubleshooting involves re-aligning the light units and support structures, using precision tools to ensure they match the original design specifications.

Environmental Damage: Environmental factors such as storms, high winds, or corrosion can damage components of the approach lighting system. This may include bent support structures, damaged wiring, or corroded light units. Troubleshooting involves repairing or replacing damaged components and implementing preventive measures, such as corrosion-resistant coatings, to protect against future damage.

Interference from Other Systems: In some cases, the approach lighting system may experience interference from other electrical or radio systems at the airport, causing erratic behavior. Troubleshooting involves identifying the source of interference and implementing shielding or other measures to minimize its impact.

Regulatory Standards for Approach Lighting Systems

Approach lighting systems are subject to strict regulatory standards to ensure they meet safety and performance requirements. These standards are established by international and national aviation authorities, providing guidelines for design, installation, and operation.

International Civil Aviation Organization (ICAO) Standards: The ICAO sets global standards for aviation infrastructure, including approach lighting systems. These standards specify requirements for light intensity, configuration, visibility, and reliability, ensuring consistency across international airports. ICAO Annex 14, Aerodromes, provides detailed specifications for approach lighting systems, including different types and their applications.

Federal Aviation Administration (FAA) Regulations: In the United States, the FAA regulates approach lighting systems through its Advisory Circulars and Federal Aviation Regulations (FARs). These regulations are based on ICAO standards but may include additional requirements specific to U.S. airports. For example, FAA AC 150/5340-30 provides guidance on the design and installation of approach lighting systems for civil airports.

European Union Aviation Safety Agency (EASA) Standards: EASA sets standards for aviation safety in the European Union, including requirements for approach lighting systems. These standards align with ICAO guidelines but may include regional variations to address specific operational needs or environmental conditions.

Local Regulatory Requirements: In addition to international and regional standards, airports must comply with local regulations set by national aviation authorities. These may include specific requirements for light intensity, maintenance schedules, or environmental protection, depending on the country or region.

Compliance with these regulatory standards is essential for airports to obtain and maintain their operating licenses. Regular audits and inspections by regulatory authorities ensure that approach lighting systems continue to meet these standards, with non-compliance resulting in penalties or operational restrictions.

Technological Advancements in Approach Lighting Systems

Technological advancements have significantly improved the performance, efficiency, and reliability of approach lighting systems in recent years. These innovations are driven by the need to enhance aviation safety, reduce operational costs, and meet evolving regulatory requirements.

LED Technology: The adoption of light-emitting diode (LED) technology has revolutionized approach lighting systems. LEDs offer several advantages over traditional incandescent or halogen lights, including higher energy efficiency, longer lifespan (up to 100,000 hours), and better visibility in adverse weather conditions. They also produce less heat, reducing the risk of damage to surrounding components, and can be dimmed or brightened quickly, allowing for dynamic adjustment to ambient light conditions.

Smart Control Systems: Modern approach lighting systems feature smart control systems that use sensors and data analytics to optimize performance. These systems can automatically adjust light intensity based on real-time visibility conditions, such as fog or darkness, ensuring that the approach lighting system is always operating at the optimal level. Smart controls also enable remote monitoring and management, allowing airport personnel to troubleshoot issues or adjust settings from a central location.

Solar-Powered Systems: For remote or off-grid airports, solar-powered approach lighting systems offer a sustainable and cost-effective solution. These systems use solar panels to generate electricity, stored in batteries for use during nighttime or low-light conditions. Solar-powered approach lighting systems reduce reliance on the electrical grid and lower operating costs, making them ideal for small airports in rural or isolated areas.

Wireless Communication: Wireless technology is increasingly being integrated into approach lighting systems, eliminating the need for extensive wiring and reducing installation and maintenance costs. Wireless sensors and controllers allow for real-time data transmission between components, enabling faster response to changes in operating conditions and improving overall system reliability.

Enhanced Visibility Features: New lighting technologies, such as adaptive lighting and sequential flashing patterns, are being developed to enhance visibility in low-visibility conditions. Adaptive lighting adjusts the color temperature of the lights based on weather conditions, making them more visible in fog or rain. Sequential flashing patterns create a moving visual cue that draws pilots’ attention to the runway, improving alignment and accuracy.

Integration with Avionics: Advanced approach lighting systems are being designed to integrate with aircraft avionics, providing pilots with additional data and guidance. This includes compatibility with instrument landing systems (ILS) and global positioning systems (GPS), creating a seamless navigation experience that combines visual and electronic guidance, ensuring that pilots have multiple sources of information to guide their landing. This integration also allows for real-time adjustments to the approach lighting system based on the aircraft’s position and speed, further enhancing safety.

Critical Design Considerations for Your Approach Lighting System (Avoid These Mistakes!)

Designing an effective Approach Lighting System requires more than just choosing the right type—it requires careful consideration of your airport’s unique environment, operations, and goals. Below are the most critical design factors to ensure your Approach Lighting System delivers maximum safety and efficiency.

Visibility Requirements: Match the System to Your Weather Conditions

The primary goal of an Approach Lighting System is to be visible to pilots in all relevant conditions—so the first step in design is to assess your airport’s typical weather patterns.

• Fog-Prone Regions: Airports in areas with frequent fog (e.g., San Francisco, London Heathrow) need a high-intensity Approach Lighting System (HIALS) with sequential flashing lights. LED lights are ideal here, as they maintain brightness in fog better than incandescent or halogen bulbs.
• Rainy or Snowy Climates: In regions with heavy rain or snow (e.g., Seattle, Toronto), the Approach Lighting System should have waterproof components and high-intensity lights that cut through precipitation. Support structures should be designed to withstand snow loads.
• Sunny Climates: Airports in sunny areas (e.g., Phoenix, Dubai) may use MALS or SALS, but should still opt for LED lights to avoid glare (LEDs can be dimmed to match bright sunlight).

Mistake to Avoid: Installing a SALS in a fog-prone airport. This will lead to frequent delays and safety risks. Instead, invest in HIALS or MALSF to ensure visibility in low-visibility conditions.

Runway Alignment: Ensure Precise Guidance

The Approach Lighting System must be aligned exactly with the runway to provide accurate guidance. Even a small misalignment (1–2 degrees) can lead to pilot confusion and misaligned approaches.

Key alignment steps:

• Centerline Matching: The central axis of the Approach Lighting System must match the runway’s centerline. This requires precise surveying using GPS or laser tools.
• Angle Calculation: The light units should be positioned at angles that create a straight visual path for pilots. For example, lateral lights in MALS should be angled to form a “funnel” that guides aircraft to the runway.
• Height Adjustment: The height of the light units should be calculated to ensure visibility from all approach altitudes. For HIALS, outer lights may be taller to be visible from higher altitudes, while inner lights are shorter to avoid glare.

Mistake to Avoid: Rushing the alignment process. Poor alignment is a top cause of Approach Lighting System failures—invest in a provider with experience in precision surveying.

Light Spacing and Configuration: Balance Clarity and Cost

The spacing between light units in the Approach Lighting System determines how clear the visual path is for pilots.

• Too Far Apart: Lights spaced more than 100 feet apart may not create a continuous path, leading to pilot uncertainty.
• Too Close Together: Lights spaced less than 50 feet apart are redundant and increase installation and maintenance costs.

Configuration guidelines:

• SALS: 50–100 feet between lights in the central row.
• MALS: 50–75 feet between central row lights; 100 feet between lateral lights.
• HIALS: 25–50 feet between central row lights; 50–75 feet between lateral lights.

Mistake to Avoid: Overconfiguring the system (e.g., adding unnecessary lateral lights to a SALS). This increases costs without improving performance. Work with your provider to design a configuration that matches your airport’s traffic and aircraft types.

Environmental Factors: Design for Durability

Your Approach Lighting System must withstand the local environment—whether it’s saltwater, extreme temperatures, or high winds.

• Coastal Airports: Use corrosion-resistant materials (stainless steel support structures, tinned copper wiring) to prevent saltwater damage. LED lights are also more resistant to corrosion than incandescent bulbs.
• Cold Climates: The Approach Lighting System should be designed to operate in freezing temperatures (-40°F to 32°F). This includes heated light units (to prevent ice buildup) and battery backup systems with cold-weather performance.
• Hot Climates: Use heat-resistant materials and LED lights (which produce less heat than incandescent bulbs) to avoid overheating. The control system should be housed in a climate-controlled enclosure.
• High-Wind Areas: Support structures should be engineered to withstand wind loads of up to 150 mph (hurricane-prone regions) or 100 mph (tornado-prone regions).

Mistake to Avoid: Using standard steel support structures in coastal airports. Saltwater will corrode the steel within 2–3 years, leading to costly replacements. Instead, opt for stainless steel or aluminum.

Compatibility with Other Airport Systems

The Approach Lighting System doesn’t operate in a vacuum—it must work seamlessly with other airport systems to ensure safety and efficiency.

Key integrations:

• Runway Lighting: The Approach Lighting System and runway lights should sync (e.g., runway lights brighten when the Approach Lighting System is activated).
• Air Traffic Control (ATC): ATC should be able to control the Approach Lighting System remotely (e.g., adjust intensity or activate sequential flashing) to respond to changing conditions.
• Weather Monitoring Tools: The Approach Lighting System should automatically adjust based on real-time weather data (e.g., increase intensity when fog is detected).
• Aircraft Avionics: For large airports, the Approach Lighting System should be compatible with aircraft instrument landing systems (ILS) and GPS to provide redundant guidance.

Mistake to Avoid: Installing an Approach Lighting System that can’t integrate with your existing ATC system. This will require manual adjustments, increasing the risk of human error and delays.

5.6 Cost and Maintenance: Balance Performance and Affordability

While safety is the top priority, cost is a key consideration for most airports. The design of your Approach Lighting System should balance performance with long-term affordability.

• Initial Cost vs. Long-Term Savings: LED lights have a higher upfront cost ($50–$100 per bulb vs. $5–$10 for incandescent) but save money over time via lower energy and maintenance costs. For example, a 100-light Approach Lighting System with LEDs will save $5,000–$10,000 annually in energy costs compared to incandescent bulbs.
• Maintenance Requirements: Choose components with low maintenance needs (e.g., LED lights, stainless steel support structures) to reduce ongoing costs. For remote airports, solar-powered Approach Lighting Systems eliminate energy costs entirely.
• Scalability: Design the system to be upgradeable (e.g., adding lateral lights to a SALS to convert it to MALS) as your airport’s traffic grows. This avoids the need for a full replacement later.

Mistake to Avoid: Choosing the cheapest system upfront. A low-cost SALS may seem like a good deal, but it will cost more in delays and upgrades if your airport’s traffic increases. Instead, invest in a scalable system that can grow with your needs.

Approach Lighting Systems for Different Airport Sizes

Airports of different sizes have distinct needs when it comes to approach lighting systems, based on their traffic volume, aircraft types, and operational requirements.

Small Airports and Regional Airfields: Small airports with low traffic volumes, primarily serving general aviation or small commercial aircraft, often opt for Simple Approach Lighting Systems (SALS). These systems are cost-effective and provide sufficient guidance for visual approaches in good weather conditions. They may also integrate basic PAPI systems to assist with vertical alignment. Due to limited budgets, small airports prioritize affordability and simplicity, making SALS an ideal choice.

Medium-Sized Airports: Medium-sized airports that handle a mix of regional jets and smaller commercial airliners typically require more advanced systems like Medium Intensity Approach Lighting Systems (MALS). These systems offer better visibility in reduced light conditions, such as dawn or dusk, and can accommodate the needs of larger aircraft. They may include additional features like lateral lights to widen the visual path, ensuring that pilots can align with the runway more easily.

Large International Airports: Large airports with high traffic volumes, serving wide-body commercial airliners and operating in various weather conditions, rely on High Intensity Approach Lighting Systems (HIALS). These systems are designed to provide exceptional visibility in low-visibility scenarios, including heavy fog, rain, and darkness. They often integrate with advanced avionics and air traffic control systems to ensure seamless operations, even during peak hours. The high cost of HIALS is justified by the need for maximum safety and efficiency in a busy aviation environment.

Military Airports: Military airports have unique requirements, often involving larger aircraft, specialized operations, and the need for rapid deployment. Their approach lighting systems may be more robust, with higher intensity and greater durability to withstand harsh conditions. They may also include features like infrared lighting for night operations or compatibility with military avionics systems, ensuring that military aircraft can land safely in various mission-critical scenarios.

Case Studies: Successful Implementation of Approach Lighting Systems

Examining real-world case studies of approach lighting system implementations provides valuable insights into best practices, challenges, and outcomes. These examples highlight how different airports have benefited from choosing the right system and addressing specific operational needs.

Case Study 1: Regional Airport Upgrade to MALS

A regional airport in the Midwest, USA, was experiencing frequent delays during dawn and dusk due to poor visibility. The existing SALS was insufficient for the increasing number of regional jet flights. The airport decided to upgrade to a Medium Intensity Approach Lighting System (MALS) with LED lights. The installation took three months, and the new system provided a wider visual path and higher intensity, reducing delays by 40%. Pilots reported improved confidence during approach, and the airport saw an increase in on-time arrivals. The energy efficiency of the LED lights also reduced monthly electricity costs by 30%.

Case Study 2: International Airport HIALS Installation

A major international airport in Europe, located in a fog-prone area, faced significant operational challenges during winter months. The airport installed a High Intensity Approach Lighting System (HIALS) with sequential flashing lights and integrated PAPI. The system was designed to meet ICAO and EASA standards, ensuring visibility even in dense fog. Post-installation, the airport saw a 60% reduction in fog-related delays, and the number of missed approaches dropped by 75%. The investment in HIALS was recouped within five years due to increased operational efficiency and reduced passenger compensation costs.

Case Study 3: Remote Airport Solar-Powered SALS

A remote airport in a rural area of Africa, with limited access to the electrical grid, needed a reliable approach lighting system. A solar-powered Simple Approach Lighting System (SALS) was installed, consisting of LED lights, solar panels, and battery storage. The system operated independently of the grid, providing lighting during nighttime and low-light conditions. The installation cost was higher than a traditional SALS but was offset by zero energy costs and minimal maintenance. The airport now operates safely after dark, increasing its capacity and supporting local economic development.

Future Trends in Approach Lighting Systems

The future of approach lighting systems is shaped by ongoing technological advancements, evolving regulatory requirements, and the need for greater sustainability and efficiency. Several key trends are expected to influence the development and implementation of these systems in the coming years.

Increased Use of Renewable Energy: As airports strive to reduce their carbon footprint, the adoption of solar-powered and wind-powered approach lighting systems is likely to grow. These renewable energy sources can power small to medium-sized systems, especially in remote or off-grid locations, reducing reliance on fossil fuels and lowering operational costs. Advances in battery storage technology will also make renewable energy systems more reliable, ensuring consistent operation even during periods of low sunlight or wind.

Artificial Intelligence (AI) and Machine Learning: AI and machine learning will play an increasingly important role in optimizing approach lighting systems. Smart control systems powered by AI can analyze real-time data from weather sensors, aircraft positions, and ambient light conditions to automatically adjust the system’s intensity, flashing patterns, and alignment. This ensures that the approach lighting system is always operating at peak efficiency, enhancing safety and reducing energy waste. AI can also predict maintenance needs, identifying potential issues before they cause failures, and scheduling repairs proactively.

Enhanced Connectivity and IoT Integration: The Internet of Things (IoT) will enable greater connectivity between components of the approach lighting system and other airport systems. Sensors embedded in light units, support structures, and control systems will collect data on performance, environmental conditions, and energy usage, transmitting this information to a central dashboard. This allows for real-time monitoring and remote management, enabling airport personnel to address issues quickly and make data-driven decisions. Integration with air traffic control systems and aircraft avionics will create a fully connected aviation ecosystem, improving coordination and safety.

Human-Centered Design: Future approach lighting systems will focus more on human factors, ensuring that the visual cues provided are intuitive and easy for pilots to interpret. This may involve researching how pilots perceive different light patterns, colors, and intensities under various conditions and designing systems that align with these perceptions. For example, using color temperatures that are easier to distinguish in fog or reducing glare to prevent pilot fatigue.

Modular and Scalable Systems: Modular approach lighting systems will become more popular, allowing airports to start with a basic configuration and expand or upgrade as their needs grow. This reduces initial investment costs and provides flexibility to adapt to changing traffic volumes or regulatory requirements. Scalable systems can also be easily modified to incorporate new technologies, such as LED upgrades or smart controls, without requiring a complete overhaul.

Choosing the Right Approach Lighting System Provider

Selecting a reliable and experienced provider is crucial for the successful implementation and long-term performance of an approach lighting system. The right provider can offer expertise, quality products, and ongoing support, ensuring that the system meets the airport’s needs and regulatory standards.

Experience and Expertise: Look for providers with a proven track record in designing, installing, and maintaining approach lighting systems. Experience in working with airports of similar size and operational requirements is valuable, as it indicates an understanding of the unique challenges and needs of such facilities. Providers with certifications from recognized aviation authorities, such as ICAO or FAA, demonstrate a commitment to quality and compliance.

Product Quality and Innovation: The provider should offer high-quality, durable products that meet international standards. This includes light units with long lifespans, robust support structures, and advanced control systems. Innovation is also important—providers that invest in research and development to improve their products, such as developing more efficient LED lights or smart control systems, can offer better solutions.

Customization Capabilities: Every airport has unique needs, and the provider should be able to customize the approach lighting system to meet specific requirements. This may involve modifying the system’s configuration, integrating with existing airport systems, or adapting to local environmental conditions. A provider with strong customization capabilities can ensure that the system is tailored to the airport’s operations.

After-Sales Support: Comprehensive after-sales support is essential for maintaining the approach lighting system. This includes maintenance services, repairs, access to spare parts, and technical assistance. Providers with a network of service technicians and a responsive support team can minimize downtime and ensure that the system remains operational when needed. Look for providers that offer long-term maintenance contracts to provide ongoing peace of mind.

Cost and Value: While cost is an important factor, it should not be the sole consideration. Evaluate the total cost of ownership, including initial installation, energy consumption, and maintenance, rather than just the upfront price. A provider that offers high-quality products and reliable support may have a higher initial cost but can provide better value over the system’s lifespan.

References and Reviews: Check references from previous customers to learn about their experiences with the provider. Reviews and testimonials can provide insights into the provider’s reliability, quality of work, and customer service. Contacting other airports that have installed systems from the provider can help verify their claims and ensure that they are a good fit.

Conclusion: The Critical Role of Approach Lighting Systems in Aviation Safety

An approach lighting system is an indispensable component of airport infrastructure, playing a vital role in ensuring the safety and efficiency of air travel. From guiding pilots during low-visibility conditions to enabling airports to meet regulatory standards, these systems are essential for the smooth operation of aviation facilities of all sizes.

The choice of approach lighting system depends on various factors, including the airport’s size, traffic volume, weather conditions, and budget. Whether it’s a simple SALS for a small regional airport or a sophisticated HIALS for a large international hub, each system is designed to provide clear visual guidance to pilots, reducing the risk of accidents and delays.

Technological advancements, such as LED lighting, smart control systems, and renewable energy integration, are continuously improving the performance and sustainability of approach lighting systems. These innovations not only enhance safety but also reduce operational costs, making them a wise investment for airports looking to modernize their infrastructure.

Proper installation, maintenance, and compliance with regulatory standards are crucial for the long-term reliability of an approach lighting system. By working with experienced providers, conducting regular inspections, and addressing issues promptly, airports can ensure that their approach lighting system remains in optimal condition, supporting safe and efficient air travel for years to come.

In the dynamic world of aviation, where safety is paramount, the approach lighting system stands as a silent but essential guardian, guiding aircraft home safely with every landing.
