What Is DME in Aviation? 5 Key Factors to Know

In the fast-paced world of aviation, DME (Distance Measuring Equipment) stands as a cornerstone of safe and precise navigation—without it, pilots would lack critical real-time distance data needed to navigate busy airways and execute smooth landings. For both seasoned aviators and aviation professionals, understanding DME’s purpose, functionality, and integration into modern flight systems is non-negotiable, as it directly impacts operational efficiency and passenger safety. This blog breaks down everything you need to know about DME in aviation, from its core definition to advanced test procedures, ensuring you gain the expertise to leverage this technology effectively.

1. Defining DME: What It Is and Why It Matters in Aviation

At its core, DME (Distance Measuring Equipment) is a radio navigation system that calculates the straight-line (slant-range) distance between an aircraft and a fixed ground-based station. Unlike visual cues or basic altitude readings, DME provides quantifiable, real-time distance data—measured in nautical miles (NM)—that pilots rely on to confirm their position relative to key navigational points, such as airports, waypoints, or airways.

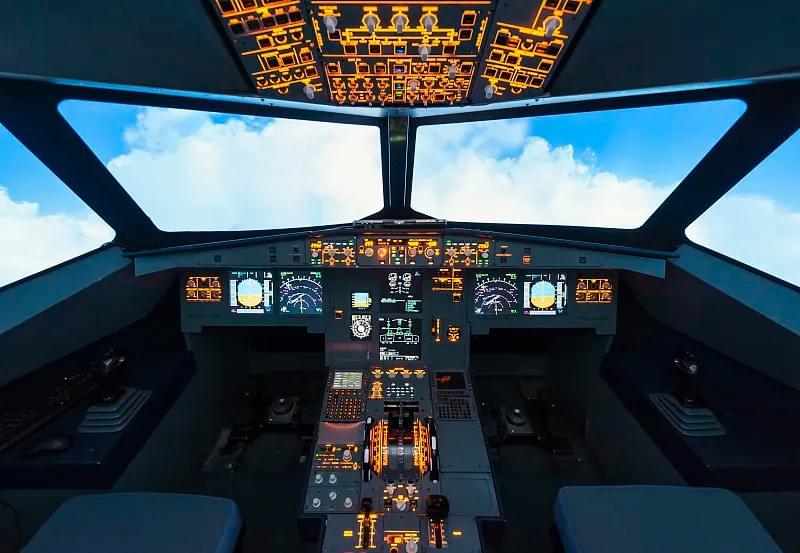

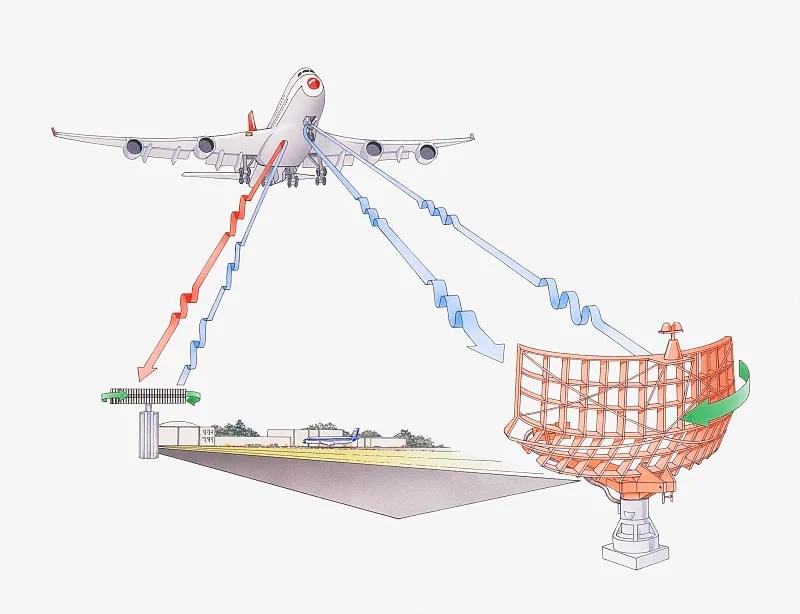

How DME Functions: The Signal Exchange Process

DME operates on a simple yet precise principle: signal transmission and reflection. Here’s a step-by-step breakdown of its functionality:

1.Signal Transmission: The aircraft’s onboard DME transceiver sends a high-frequency radio signal (typically in the 962–1213 MHz range) to a ground-based DME station.

2.Signal Reception & Reply: The ground station receives the aircraft’s signal, amplifies it, and immediately sends a coded reply signal back to the aircraft.

3.Time Calculation: The aircraft’s DME equipment measures the time elapsed between sending the original signal and receiving the reply. Since radio waves travel at the speed of light (186,000 miles per second), the system uses this time delay to calculate distance:

Distance = (Time Elapsed × Speed of Light) / 2 (the division by 2 accounts for the signal traveling to the ground station and back).

4.Data Display: The calculated distance is displayed on the aircraft’s cockpit instrument panel (often integrated with navigation displays like HSI or PFD), giving pilots instant access to critical position data.

Why DME Is Non-Negotiable for Aviation Safety

DME’s importance extends far beyond basic distance measurement. It is a lifeline for pilots in multiple flight scenarios:

• Low-Visibility Operations: In fog, rain, or low-cloud conditions, visual references are limited. DME provides reliable distance data to ensure pilots stay on course during approach and landing.
• Airway Navigation: Along busy airways, DME helps pilots maintain proper spacing from other aircraft and adhere to assigned routes by confirming their distance from waypoints.
• Precision Approaches: During instrument approaches (e.g., ILS or VOR/DME approaches), DME ensures pilots descend at the correct rate and altitude by referencing distance to the runway threshold.
• Situational Awareness: When combined with other navigation systems (like VOR or GPS), DME creates a layered safety net, reducing the risk of navigation errors caused by single-system failures.

2. What Is DME Aviation Used For? 3 Core Applications

DME is not a one-dimensional tool—it supports multiple critical functions throughout a flight, from takeoff to landing. Understanding its key applications helps aviation professionals appreciate its role in streamlining operations and enhancing safety.

Application 1: Supporting Precision Approaches & Landings

One of the most critical uses of DME in aviation is enabling precision approaches to runways. During instrument landing procedures (ILPs), pilots cannot always see the runway until the final moments, so DME provides a reliable reference for distance to the runway threshold. For example:

• In a VOR/DME Approach, the VOR (VHF Omnidirectional Range) system provides direction to the runway, while DME confirms the aircraft’s distance from the VOR station (which is often located near the airport). This allows pilots to descend at the correct altitude for each distance marker (e.g., 5 NM from the station = 3,000 feet altitude; 2 NM = 1,000 feet altitude).
• In busy airports, DME also helps prevent "misapproaches"—situations where a pilot aborts a landing due to incorrect positioning. By providing precise distance data, DME reduces the likelihood of such errors, saving time and minimizing safety risks.

Application 2: Providing Real-Time Distance to Waypoints & Ground Stations

During en route flight (the phase between takeoff and descent), DME is essential for tracking progress along assigned airways. Airways are defined by a series of waypoints—fixed points in the sky marked by ground-based navigational aids (like VOR or NDB stations). DME allows pilots to:

• Confirm their distance from each waypoint, ensuring they stay on the assigned route.
• Calculate "time to waypoint" (TTW) by dividing distance by ground speed, helping them meet air traffic control (ATC) scheduling requirements.
• Maintain safe separation from other aircraft. For example, ATC may instruct a pilot to "hold at 10 NM from the ABC VOR"—DME makes it easy to comply with this instruction.

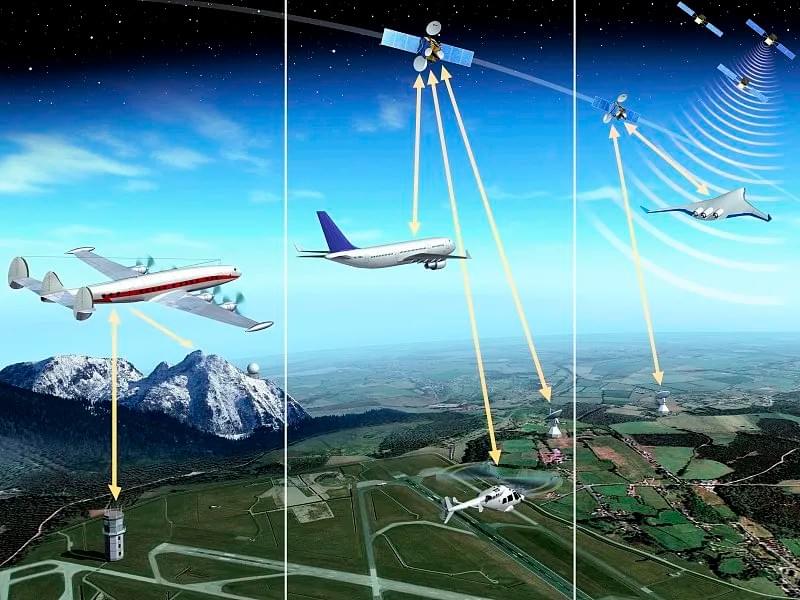

Application 3: Integrating with Other Navigation Systems

DME rarely operates in isolation; it is designed to work seamlessly with other aviation navigation systems to create a comprehensive position-tracking solution. Key integrations include:

• VOR/DME: The most common pairing. VOR provides direction (radial) from the ground station, while DME provides distance. Together, they allow pilots to determine their exact position using "radial + distance" coordinates (e.g., "180° radial, 8 NM from XYZ VOR").
• GPS/DME: While GPS (Global Positioning System) is widely used for navigation, DME serves as a backup. If GPS signals are lost (due to interference or satellite issues), DME can quickly fill the gap, ensuring pilots do not lose position data.
• RNAV/RNP: DME is a critical component of RNAV (Area Navigation) and RNP (Required Navigation Performance) systems. These advanced systems use DME data (along with GPS and inertial navigation) to enable more flexible routes, reduce fuel consumption, and improve access to airports with challenging terrain.

3. Types of DME in Aviation: Ground-Based vs. Airborne Systems

DME technology is split into two primary categories: ground-based systems (the "transmitters") and airborne equipment (the "receivers"). Each plays a unique role, and understanding their differences is key to optimizing DME performance.

Ground-Based DME Systems: The Fixed Navigational Aids

Ground-based DME stations are permanent installations located near airports, along airways, or at critical waypoints. They are owned and maintained by aviation authorities (e.g., FAA in the U.S., EASA in Europe) and operate 24/7 to support global flight operations. Key features of ground-based DME systems include:

• Frequency Pairing: Each ground DME station operates on a frequency paired with a VOR or ILS (Instrument Landing System) station. This ensures pilots can easily tune to both systems using a single frequency, simplifying cockpit operations.
• Coverage Range: Most ground DME stations have a coverage range of 100–200 NM, depending on terrain and antenna height. High-altitude stations (located on mountains) may have a longer range, while stations in flat areas may cover less distance.
• Classifications: Ground DME stations are classified by their power and range:
• Class A: High-power stations with a range of up to 200 NM, used for en route navigation.
• Class B: Medium-power stations with a range of up to 50 NM, used for terminal area navigation (near airports).
• Class C: Low-power stations with a range of up to 25 NM, used for precision approaches.

Airborne DME Equipment: The Onboard Receivers

Airborne DME equipment refers to the transceivers, antennas, and displays installed on aircraft. This equipment is responsible for sending signals to ground stations, receiving replies, and calculating distance for pilots. Key components of airborne DME systems include:

• DME Transceiver: The "brain" of the system. It generates the outgoing signal, processes the incoming reply, and calculates distance. Modern transceivers are compact and integrate with other avionics (e.g., flight management systems, FMS).

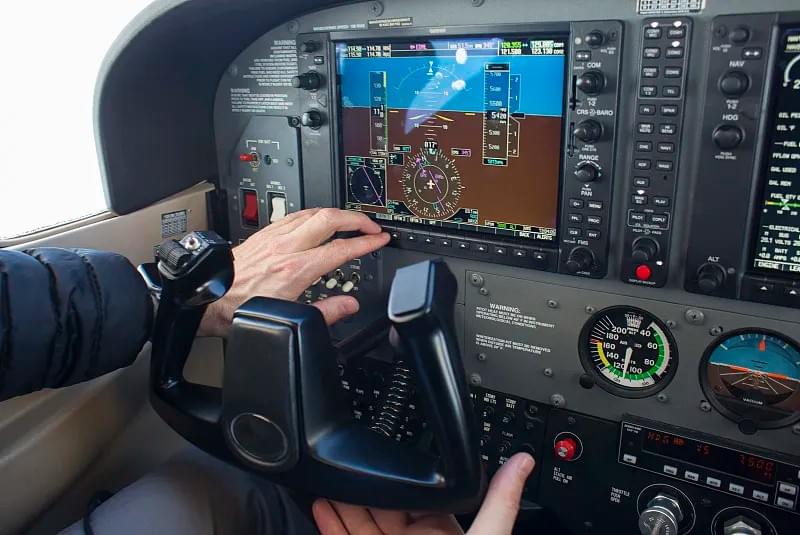

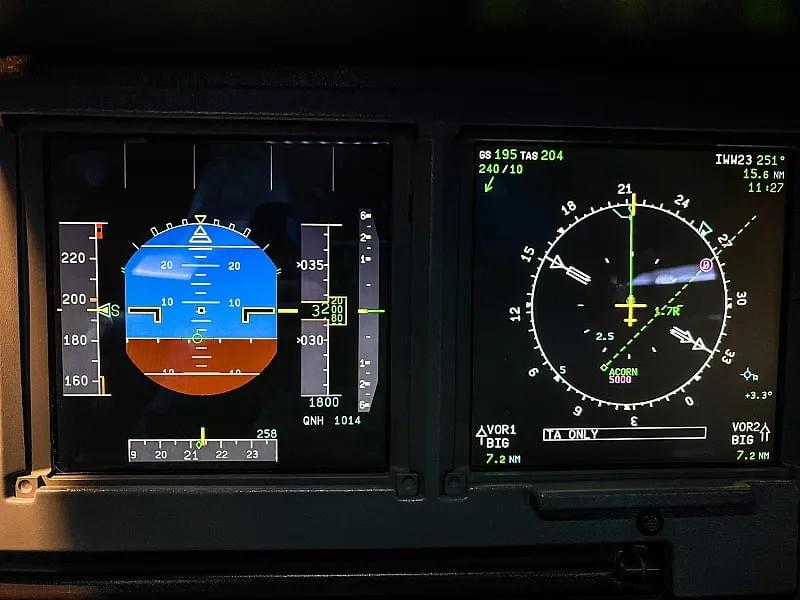

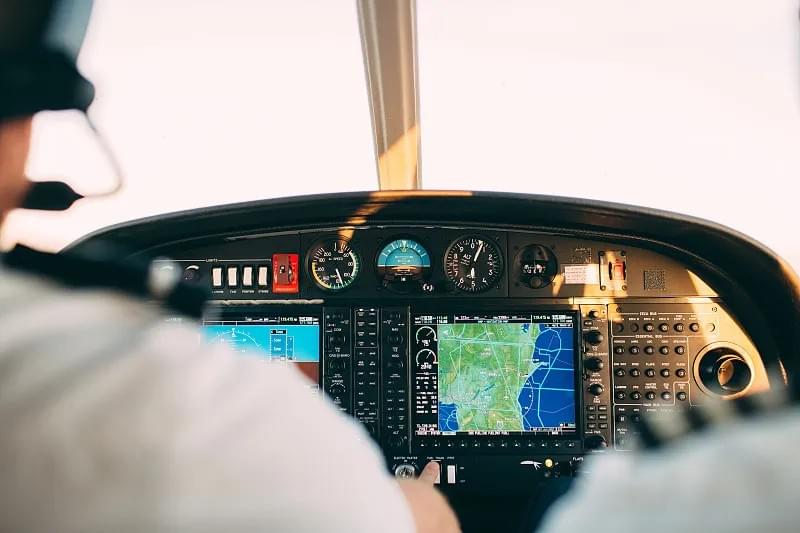

• DME Display: The interface where distance data is shown to pilots. It may be a standalone gauge or part of a multi-function display (MFD) or primary flight display (PFD). Displays typically show slant-range distance (in NM) and the ground station’s ID code.
• DME Antenna: A critical component that sends and receives radio signals. Antennas are designed to be lightweight, aerodynamic, and durable (to withstand extreme weather and vibrations).

Key Differences in DME Configurations

While all DME systems serve the same core purpose, configurations vary based on the aircraft’s type and mission:

• Commercial Airliners: Equipped with dual DME systems (for redundancy) that integrate with GPS, VOR, and FMS. This ensures reliable navigation even if one system fails.
• General Aviation (GA) Aircraft: Typically have a single DME transceiver, often paired with a VOR. GA DME systems are smaller and more cost-effective, designed for short to medium-range flights.
• Military Aircraft: Use specialized DME configurations with enhanced signal processing to resist jamming and operate in combat zones. Some military DME systems also support data link communications for real-time coordination.

4. The DME Antenna on Aircraft: Features, Placement, and Calibration

The DME antenna is a small but critical part of the airborne DME system—without it, the aircraft cannot send or receive signals, rendering DME useless. Understanding the antenna’s features, placement, and maintenance is essential for ensuring reliable DME performance.

Key Features of DME Antennas

DME antennas are engineered to meet strict aviation standards, with features that prioritize performance, durability, and safety:

• Frequency Compatibility: Designed to operate on the DME frequency range (962–1213 MHz), ensuring clear signal transmission and reception.
• Aerodynamic Design: Shaped to minimize drag (critical for fuel efficiency). Most DME antennas are low-profile, mounted flush against the aircraft’s fuselage or tail.
• Durability: Constructed from corrosion-resistant materials (e.g., aluminum or composite alloys) to withstand extreme temperatures (-60°C to 80°C), high winds, and precipitation (rain, snow, ice).
• Signal Gain: Optimized to maximize signal strength, even at high altitudes or in areas with weak ground station coverage. Some advanced antennas use directional designs to reduce interference from other onboard systems.

Strategic Antenna Placement

The placement of the DME antenna on an aircraft directly impacts its ability to receive signals. Aviation engineers follow strict guidelines to ensure optimal performance:

• Line of Sight: DME signals travel in straight lines, so the antenna must be placed where it has an unobstructed view of the ground. Common locations include:
• Fuselage: Mounted on the underside of the fuselage (for GA aircraft) to avoid obstruction from wings or tail.
• Tail: Mounted on the vertical stabilizer (for commercial airliners) to maximize coverage, especially during descent and landing.
• Interference Reduction: Antennas are placed away from other radio equipment (e.g., VHF comm antennas, transponder antennas) to minimize signal interference. For example, a DME antenna may be mounted on the left side of the fuselage, while a VHF antenna is on the right.
• Redundancy: Commercial airliners often have two DME antennas (one on the fuselage, one on the tail) to provide redundancy. If one antenna fails, the other can take over, ensuring continuous DME operation.

The Importance of DME Antenna Calibration

Calibration is the process of adjusting the antenna to ensure it sends and receives signals accurately. Regular calibration is required by aviation regulations (e.g., FAA Part 43, EASA Part M) and is critical for:

• Accuracy: A miscalibrated antenna may produce incorrect distance readings, leading to navigation errors. For example, a 1% calibration error could result in a 0.1 NM error at 10 NM—enough to cause a pilot to deviate from their assigned route.
• Compliance: Uncalibrated DME systems can lead to regulatory violations, fines, or grounded aircraft. Aviation authorities require annual calibration checks for all DME antennas.
• Longevity: Calibration helps identify wear and tear (e.g., loose connections, corrosion) early, preventing costly repairs or antenna failure during flight.

Calibration procedures typically involve:

1. Using specialized test equipment to measure the antenna’s signal strength and frequency response.
2. Adjusting the antenna’s position or internal components to correct any deviations from standard values.
3. Verifying performance by testing the antenna with a nearby ground DME station.

5. DME Aviation Test Procedures: Ensuring Operational Integrity

Like all aviation equipment, DME systems require regular testing and maintenance to ensure they function correctly. DME test procedures are designed to validate performance, identify issues early, and keep systems compliant with regulatory standards.

Routine Maintenance Standards for DME

Aviation authorities (e.g., FAA, EASA) have strict maintenance standards for DME systems. Key routine tasks include:

• Daily Checks (Pilot-Performed): Before each flight, pilots check the DME display to ensure it powers on, shows the correct ground station ID, and provides consistent distance readings. They also verify that DME integrates with other systems (e.g., VOR, GPS) correctly.
• Weekly Checks (Maintenance-Team Performed): Technicians inspect the DME transceiver for signs of damage (e.g., overheating, loose wires) and test the antenna’s connections for corrosion. They also run a "self-test" on the DME system to detect internal errors.
• Annual Inspections: Comprehensive testing that includes:
• Calibrating the DME transceiver and antenna (as discussed in Section 4).
• Testing the system’s performance at different distances (e.g., 5 NM, 20 NM, 100 NM) to ensure accuracy.
• Verifying compliance with frequency standards and signal strength requirements.
• Updating the DME’s software (if applicable) to address bugs or add new features.

Key DME Test Procedures Explained

DME tests are conducted using specialized equipment (e.g., DME test sets, signal generators) and follow standardized protocols. Here are the most critical tests:

1. Signal Strength Test: Measures the strength of the signal sent by the aircraft’s DME transceiver and received by the ground station. Weak signals may indicate antenna damage or transceiver issues.
2. Distance Accuracy Test: Compares the DME’s calculated distance to a known distance (e.g., the aircraft is parked 10 NM from a ground station). If the DME reading deviates by more than 0.25 NM, the system is recalibrated.
3. Response Time Test: Measures how quickly the DME system processes a signal (from transmission to display). Slow response times can delay critical navigation decisions, so systems must meet a maximum response time of 0.5 seconds.
4. Interference Test: Checks if the DME system is affected by signals from other onboard equipment (e.g., transponder, radar). If interference is detected, technicians adjust the antenna’s placement or add shielding to the transceiver.

Common DME Issues and Troubleshooting

Even with regular maintenance, DME systems can experience issues. Here are the most common problems and how to resolve them:

• Incorrect Distance Readings: Caused by a miscalibrated antenna, loose connections, or a faulty transceiver. Troubleshooting steps include recalibrating the antenna, checking wiring, and replacing the transceiver if necessary.
• No Signal Reception: Occurs when the antenna is damaged, the ground station is offline, or the transceiver is not tuned to the correct frequency. Pilots/technicians first check the frequency setting, then inspect the antenna for damage, and verify the ground station’s status via ATC.
• Display Malfunctions: If the DME display shows "NO DATA" or garbled information, the issue may be a faulty display unit or a software glitch. Troubleshooting involves resetting the system, updating software, or replacing the display.
• Intermittent Performance: Caused by loose antenna connections or environmental factors (e.g., heavy rain interfering with signals). Technicians tighten connections and test the system in different weather conditions to identify patterns.

Conclusion: The Future of DME in Aviation—And Why It Remains Essential

As aviation technology evolves (with advancements like GPS, ADS-B, and satellite-based navigation), some may question whether DME is still relevant. The answer is a resounding "yes"—DME remains a critical backup and complement to modern systems, and its future is bright.

Key Takeaways on DME Meaning and Value

• DME Defined: A radio navigation system that calculates an aircraft’s distance from a ground station, using signal transmission and reflection.
• Core Value: Enhances safety by providing real-time distance data for precision approaches, airway navigation, and situational awareness.
• Integration: Works seamlessly with VOR, GPS, RNAV, and RNP systems to create a reliable, layered navigation solution.
• Maintenance: Requires regular testing and calibration to ensure accuracy, compliance, and longevity.

The Future of DME Technology

While GPS and satellite systems will continue to dominate aviation navigation, DME will evolve to meet new challenges:

• Improved Integration: Future DME systems will integrate more tightly with GPS and ADS-B (Automatic Dependent Surveillance-Broadcast) to provide even more precise position data.
• Miniaturization: For GA aircraft, DME transceivers and antennas will become smaller and more energy-efficient, reducing weight and fuel consumption.
• Resilience: Military and commercial DME systems will adopt anti-jamming technology to resist signal interference, ensuring reliability in high-risk environments.

Enhancing Aviation Safety: Your Role in DME Maintenance

For pilots, ATC professionals, and maintenance technicians, prioritizing DME safety means:

• Conducting thorough pre-flight checks to ensure DME is operational.
• Adhering to routine maintenance schedules to keep systems calibrated and compliant.
• Staying updated on new DME technologies and regulatory changes.

By understanding DME’s purpose, functionality, and maintenance requirements, you can help ensure every flight is safe, efficient, and compliant. Whether you’re a pilot navigating a storm or a technician calibrating an antenna, DME is your partner in aviation safety.
