Runway Lighting Systems: A Complete Guide for Safe Airfield Ops

Runway Lighting Systems are the backbone of safe and efficient airfield operations, guiding pilots through takeoff, landing, and taxiing even in low-visibility conditions. These systems combine specialized lights, advanced testing tools, and strict regulatory compliance to minimize accidents and keep air traffic flowing smoothly—making them non-negotiable for modern airports and heliports. Whether you’re an airport operator, maintenance technician, or aviation safety professional, understanding how these systems work, how to maintain them, and where the technology is heading is critical to protecting passengers, crew, and aircraft.

1. Why Runway Lighting Systems Are Non-Negotiable for Aviation Safety

Airport operations don’t stop at sunset or when fog, rain, or snow reduces visibility—and neither should safety. Runway Lighting Systems address this by turning invisible airfield boundaries into clear, actionable visual cues for pilots. Here’s why they’re indispensable:

1.1 Core Safety Functions

• Visibility Optimization: High-intensity runway lights (HIRLs), approach lights, and taxiway lights cut through low-visibility conditions (e.g., fog, dusk, heavy rain) to show pilots exactly where runways start, end, and curve. Without this, even experienced pilots struggle to align with runways or avoid collisions.
• Boundary Definition: Edge lights, centerline lights, and threshold lights create a “visual fence” around runways and taxiways. This prevents “runway incursions”—a top aviation risk where aircraft, vehicles, or pedestrians enter active runways unexpectedly.
• Hazard Identification: Lighting systems highlight potential dangers like runway end obstacles, taxiway intersections, or malfunctioning equipment. For example, runway end identifier lights (REIL) make the runway’s approach end visible from miles away, even in poor weather.

1.2 Operational Efficiency

Beyond safety, Runway Lighting Systems keep flights on schedule. Delays caused by poor visibility cost airlines millions annually—but well-designed lighting reduces these delays by letting operations continue in conditions that would otherwise ground flights. For passengers, this means fewer missed connections and more reliable travel.

1.3 Regulatory Mandates

No airport can operate legally without complying with global aviation standards for Runway Lighting Systems. Organizations like the International Civil Aviation Organization (ICAO) (via Annex 14) and the U.S. Federal Aviation Administration (FAA) set strict requirements for light intensity, color, and placement. Non-compliance leads to fines, operational shutdowns, and lost trust from airlines and passengers.

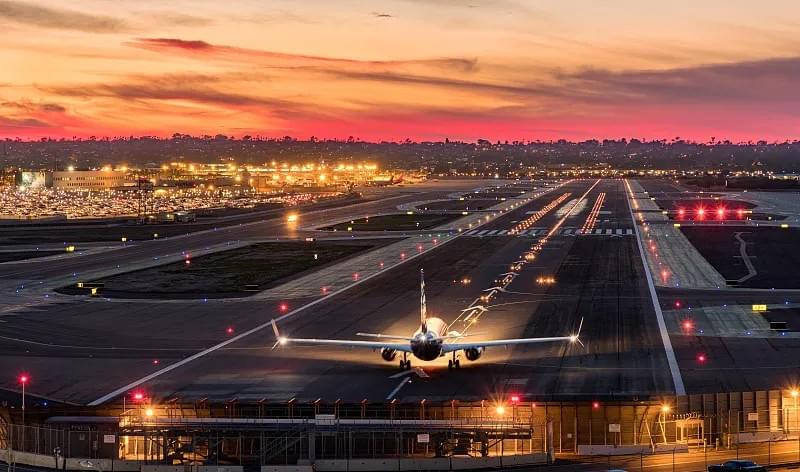

2. Key Components of a Modern Runway Lighting System

A reliable Runway Lighting System isn’t just a single set of lights—it’s a coordinated network of specialized components, each serving a unique purpose. Below are the must-have elements for any compliant, safe airfield:

2.1 Runway-Centric Lights

These lights focus on the runway itself, guiding pilots during takeoff and landing:

• Edge Lights: Installed along the runway’s sides, these lights are typically white (for the runway’s length) and red (for the last 2,000 feet or half the runway length, whichever is shorter) to signal the runway end. They’re visible from all angles and critical for maintaining alignment.
• Centerline Lights: Embedded in the runway’s center, these white lights (spaced 50 feet apart) help pilots stay on track during landing and taxiing. For runways longer than 3,000 feet, the last 1,000 feet use alternating red and white lights, and the final 500 feet use all red—warning pilots they’re approaching the end.
• Threshold Lights: Located at the runway’s starting point (the “threshold”), these bright white lights mark where landing aircraft should touch down. Some runways add “threshold wing bars”—short, angled light arrays—to emphasize the threshold in low visibility.
• Touchdown Zone Lights (TDZLs): Positioned in the first 3,000 feet of the runway, these white lights (arranged in two parallel rows) show pilots the optimal touchdown area. They’re especially useful for night landings or when visibility is reduced.
• Runway End Identifier Lights (REILs): A pair of high-intensity red or white lights at the runway’s approach end. They flash alternately to make the runway visible from a distance, even when other lights are hard to see.

2.2 Approach & Glide Path Lights

These lights guide pilots as they descend toward the runway, ensuring they stay on the correct “glide slope” (the ideal descent path):

• Precision Approach Path Indicators (PAPIs): Four lights mounted on the runway’s side (usually the left) that show pilots if they’re too high, too low, or on track. Pilots interpret PAPIs by color:
• 4 white lights = Too high
• 3 white + 1 red = Slightly high
• 2 white + 2 red = On glide slope (correct)
• 1 white + 3 red = Slightly low
• 4 red lights = Too low

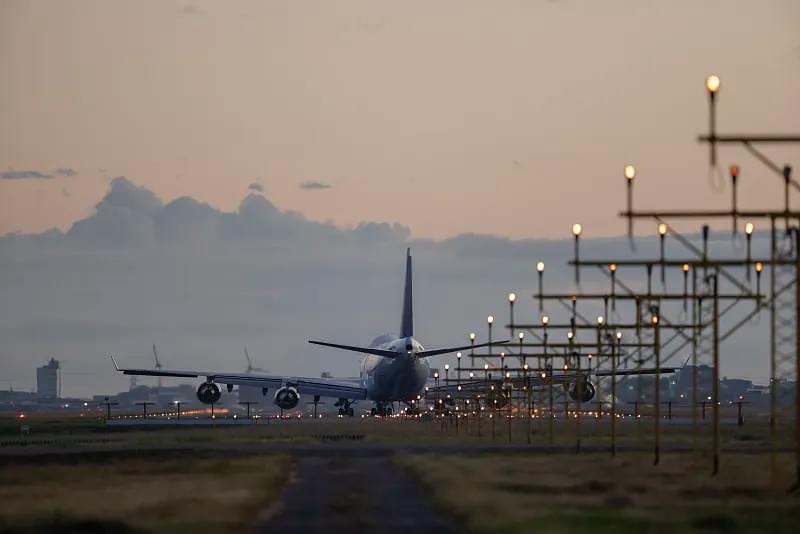

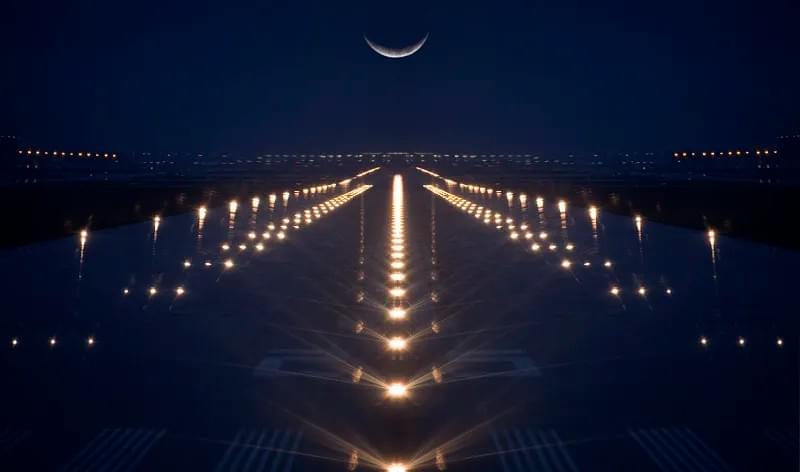

• Approach Lights: Extended arrays of lights that start 2,000–5,000 feet from the runway threshold. They include steady white lights (to mark the approach path) and flashing lights (to draw attention in low visibility). For precision approaches (e.g., ILS), approach lights may include centerline alignment lights.

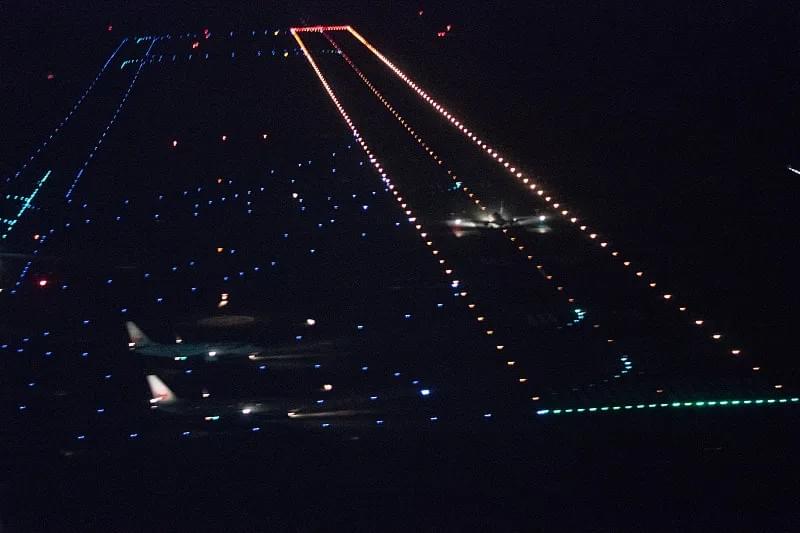

2.3 Taxiway Lights

Once on the ground, pilots rely on taxiway lights to navigate between runways, gates, and maintenance areas:

• Taxiway Edge Lights: Blue lights that mark the edges of taxiways, distinguishing them from runways (which use white edge lights).
• Taxiway Centerline Lights: Green lights embedded in the taxiway’s center, guiding pilots along the path.
• Stop Bar Lights: Red, flashing lights at taxiway-runway intersections. They stay on until air traffic control (ATC) clears the aircraft to cross the runway, preventing incursions.

2.4 Testing & Maintenance Tools

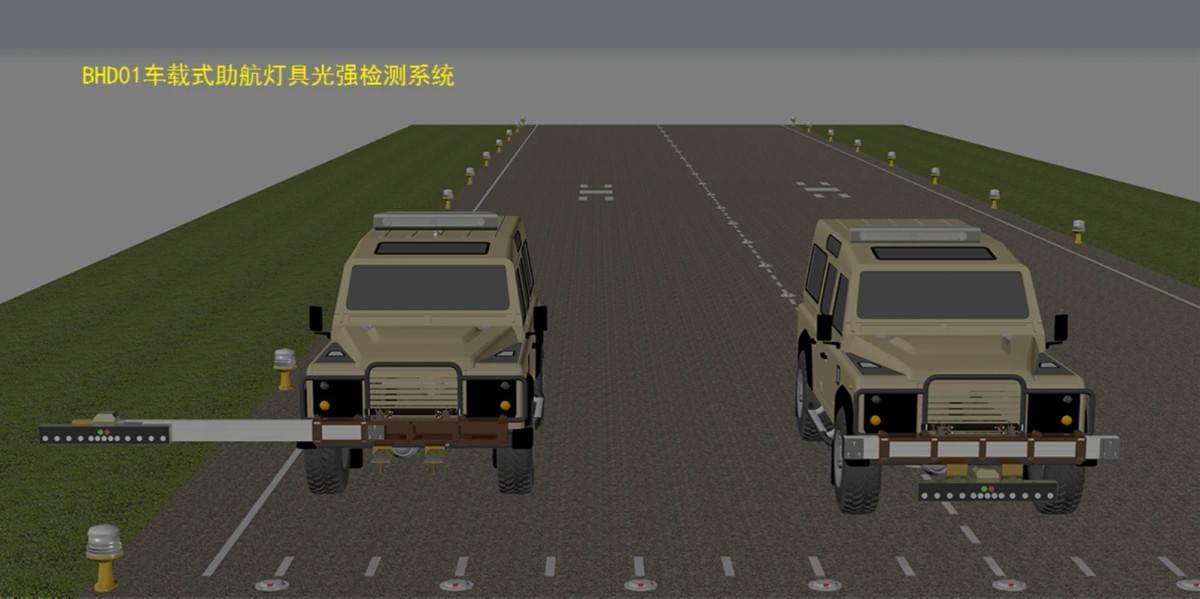

Even the best lights fail without proper testing—and that’s where tools like Haisen’s Light Intensity Tester come in. This device is critical for keeping Runway Lighting Systems compliant and effective:

Key Features of Haisen’s Light Intensity Tester

• High Precision: Measures light intensity in lux or candelas (the units required by ICAO and FAA standards), ensuring readings match regulatory requirements.
• Portability: Lightweight and battery-powered, it lets technicians test lights anywhere on the airfield—no bulky equipment needed.
• Long Battery Life: Lasts 8+ hours on a single charge, enough for full-day inspections of large airports.
• User-Friendly Interface: Simple digital display shows real-time readings, so technicians don’t need advanced training to operate it.
• Wide Measurement Range: Captures intensity from low-level taxiway lights to high-intensity runway lights, making it versatile for all system components.

3. Why Light Intensity Testing Is Critical for Runway Safety

A Runway Lighting System is only as good as its light output. Dim, flickering, or mismatched lights confuse pilots and increase accident risk—which is why regular light intensity testing is mandatory for all airports. Here’s what you need to know:

3.1 Risks of Skipping Testing

• Reduced Visibility: A light that’s 20% dimmer than required may seem minor, but in fog or rain, it could make the runway invisible to pilots.
• Regulatory Non-Compliance: The FAA and ICAO require monthly intensity checks for critical lights (e.g., runway edge lights, PAPIs). Skipping tests leads to violations and potential shutdowns.
• Increased Energy Waste: Faulty lights often use more energy than functional ones. Testing identifies these early, cutting operational costs.

3.2 Benefits of Proactive Testing

• Accident Prevention: Testing catches dim or malfunctioning lights before they cause issues. For example, a PAPI light that’s too dim could lead pilots to land too low, damaging the aircraft.
• Cost Savings: Replacing a single faulty light is cheaper than repairing a runway incursion or grounding flights due to non-compliance.
• Sustainability: By ensuring lights operate at optimal intensity, airports avoid overusing energy—reducing their carbon footprint.

3.3 How to Conduct Effective Testing

1. Follow a Schedule: Test critical lights (runway edge, centerline, PAPIs) monthly. Test taxiway lights and REILs quarterly.
2. Use Calibrated Tools: Only use devices like Haisen’s Light Intensity Tester that are calibrated to ICAO/FAA standards. Uncalibrated tools give false readings, leading to missed issues.
3. Document Results: Keep records of every test (date, location, readings, repairs made). This helps track long-term trends (e.g., a light that dims faster than others) and proves compliance to regulators.
4. Act Fast on Issues: Replace or repair faulty lights within 24 hours. For critical lights (e.g., touchdown zone lights), have spare parts on hand to minimize downtime.

4. Maintenance Best Practices for Long-Lasting Runway Lighting

Testing is part of the solution—but regular maintenance keeps Runway Lighting Systems running for years. Below are the best practices recommended by ICAO, FAA, and aviation safety experts:

4.1 Routine Inspections

• Daily Visual Checks: ATC and ground crews should do quick scans of runway and taxiway lights during shifts. Look for broken fixtures, missing bulbs, or water damage.
• Weekly Electrical Tests: Check wiring, connectors, and power supplies for corrosion or wear. Loose wires are a common cause of flickering lights.
• Monthly Cleaning: Dirt, snow, and debris build up on light fixtures, reducing brightness. Use non-abrasive cleaners to wipe down lenses—avoid harsh chemicals that damage plastic.

4.2 Seasonal Maintenance

• Winter Prep: Before snowfall, install heated light fixtures (to prevent ice buildup) and stock de-icing fluid for lenses. Ice on threshold lights can make the runway end invisible.
• Summer Checks: High temperatures damage wiring and batteries. Inspect power supplies for overheating and replace old batteries in portable testing tools (like Haisen’s Tester).

4.3 Compliance with Standards

Always follow:

• ICAO Annex 14: Requires annual full-system inspections, including wiring, fixtures, and intensity testing.
• FAA Tower Lighting Requirements: Mandates specific maintenance schedules for U.S. airports (e.g., monthly edge light tests, quarterly PAPI checks).
• Local Regulations: Some countries (e.g., China, EU member states) have additional rules—check with your national aviation authority.

4.4 Training for Maintenance Teams

Technicians should be certified in:

• Light fixture repair (including LED and traditional HIRLs).
• Use of testing tools (like Haisen’s Light Intensity Tester).
• Emergency response (e.g., fixing a broken runway edge light during a storm).

5. Global Regulations for Runway Lighting Systems

Runway safety is a global priority—and that means consistent regulations across countries. Below are the key standards every airport must follow:

5.1 ICAO Annex 14: The Global Benchmark

ICAO’s Annex 14 sets the foundation for Runway Lighting Systems worldwide. It covers:

• Light Intensity: Minimum and maximum levels for each light type (e.g., runway edge lights must be 100–1,000 candelas).
• Color Requirements: Strict rules for light colors (e.g., taxiway edge lights = blue, runway end lights = red).
• Placement: How far apart lights must be (e.g., runway centerline lights = 50 feet apart).
• Testing Protocols: Requirements for intensity testing tools and frequency.

Compliance with Annex 14 isn’t optional—it’s required for airports to receive international flight traffic. Airlines won’t use airports that don’t meet these standards, as it puts their crews and passengers at risk.

5.2 FAA Regulations (U.S. Airports)

The FAA builds on ICAO standards with stricter rules for U.S. airports:

• FAA Tower Lighting Requirements: Mandates high-intensity runway lights (HIRLs) for all commercial airports. HIRLs are brighter than standard lights, making them ideal for busy airfields.
• Runway Status Lights (RSLs): Automated red lights embedded in taxiways and runways. They flash when it’s unsafe to enter or cross a runway, adding an extra layer of safety beyond ATC clearance.
• Maintenance Audits: The FAA conducts annual inspections to ensure airports follow maintenance schedules. Failure to comply can result in fines or revoked operating licenses.

5.3 Regional Standards

• EU (EASA): Follows ICAO Annex 14 but adds requirements for sustainability (e.g., all new runway lights must be LED by 2026).
• China (CAAC): Issued the 2024 《民用机场助航灯光系统维护规程》(Civil Airport Navigation Light System Maintenance Regulations), which mandates smart monitoring systems for all major airports (e.g., real-time intensity tracking).

6. Future Trends in Runway Lighting Systems (2025–2030)

The aviation industry is evolving—and Runway Lighting Systems are keeping up. Below are the trends shaping the future of airfield lighting:

6.1 LED Technology: The New Standard

LED lights are replacing traditional incandescent and HID bulbs in airports worldwide—and for good reason:

• Longer Lifespan: LEDs last 50,000–100,000 hours (25x longer than incandescent bulbs), reducing replacement costs.
• Energy Efficiency: Use 70% less energy than HID bulbs, cutting airports’ electricity bills and carbon footprints.
• Durability: Withstand shocks, extreme temperatures (-40°F to 120°F), and moisture—critical for outdoor airfield use.
• Better Visibility: LED lights produce a brighter, more consistent beam than traditional bulbs, improving pilot visibility in low conditions.

By 2025, 90% of new Runway Lighting Systems will use LEDs, according to industry reports.

6.2 Smart Monitoring & AI Integration

Airports are adding smart sensors to Runway Lighting Systems, letting them track light intensity, battery life, and fixture health in real time. Here’s how it works:

• IoT-Enabled Lights: Each light has a sensor that sends data to a central dashboard. Technicians get alerts when a light dims or fails—no manual checks needed.
• AI-Powered Predictive Maintenance: AI algorithms analyze sensor data to predict when lights will fail (e.g., a bulb that’s losing brightness at 1% per week will fail in 3 months). This lets airports replace parts before issues occur.
• Adaptive Lighting: Lights adjust intensity based on weather. For example, on a foggy night, runway edge lights automatically brighten to cut through the fog.

6.3 Sustainability: Beyond Energy Efficiency

Airlines and airports are committed to reducing carbon emissions—and Runway Lighting Systems are part of the solution:

• Solar-Powered Lights: For remote airfields or taxiways, solar-powered LED lights eliminate the need for electrical wiring, reducing energy use.
• Light Pollution Reduction: New fixtures direct light downward (instead of upward), minimizing light pollution that disrupts local wildlife and communities.
• Recyclable Materials: LED fixtures are made from recyclable aluminum, reducing waste when lights are replaced.

6.4 Enhanced Safety with Runway Status Lights (RSLs)

RSLs are becoming standard in busy airports. These automated red lights:

• Runway Entrance Lights (RELs): Flash at taxiway-runway intersections when a plane is approaching the runway. They tell pilots, “Don’t cross—unsafe!”
• Takeoff Hold Lights (THLs): Located at the runway’s takeoff hold point. They stay red if another plane is on the runway, preventing takeoff until it’s clear.

RSLs reduce runway incursions by 30% (FAA data)—and by 2027, all U.S. commercial airports will be required to install them.

7. How to Choose the Right Runway Lighting System for Your Airport

Not all airports need the same lighting—and choosing the wrong system wastes money and compromises safety. Here’s a step-by-step guide:

7.1 Assess Your Airport’s Size & Traffic

• Small Airports (General Aviation): Basic system with runway edge lights, REILs, and taxiway edge lights. LED lights are ideal for cost savings.
• Medium Airports (Regional Flights): Add PAPIs, touchdown zone lights, and smart monitoring. Haisen’s Light Intensity Tester is a must for monthly compliance checks.
• Large Airports (International Flights): Full system with HIRLs, approach lights, RSLs, AI-powered monitoring, and adaptive lighting.

7.2 Consider Local Weather

• Foggy/Rainy Climates: High-intensity approach lights and adaptive lighting are critical.
• Cold Climates: Heated light fixtures prevent ice buildup.

• Sunny Climates: UV-resistant fixtures to prevent lens damage.

7.3 Prioritize Compliance

Choose lights and testing tools that meet local regulations (e.g., ICAO Annex 14, FAA requirements, CAAC standards). For example, Haisen’s Light Intensity Tester is calibrated to ICAO standards, so it works for airports worldwide.

7.4 Factor in Long-Term Costs

LED lights cost more upfront than traditional bulbs—but they save money over time (lower energy bills, fewer replacements). Smart monitoring also reduces maintenance costs by eliminating unnecessary checks.

8. Conclusion: Invest in Runway Lighting Systems for Safety & Efficiency

Runway Lighting Systems are more than just lights—they’re a lifeline for aviation safety. From guiding pilots through foggy landings to preventing runway incursions, every component plays a role in keeping flights safe and on time.

To get the most out of your system:

• Test Regularly: Use tools like Haisen’s Light Intensity Tester to keep lights compliant.
• Maintain Proactively: Follow ICAO and FAA maintenance schedules to avoid failures.
• Embrace Innovation: Upgrade to LEDs, smart monitoring, and RSLs to improve safety and sustainability.

Whether you’re upgrading an existing system or building a new airport, investing in high-quality Runway Lighting Systems is an investment in your passengers, crew, and reputation.

Ready to optimize your Runway Lighting System? Contact Haisen today to learn how our Light Intensity Tester and aviation lighting solutions can keep your airfield safe, compliant, and efficient.
