The Significance of Airport Lights in Aviation
In the vast world of aviation, airport lights play a crucial role that cannot be overstated. They are the silent yet powerful guardians, ensuring the safety and efficiency of aircraft operations day and night, in all weather conditions. Just like the lighthouses guiding ships in the vast ocean, airport lights are the beacons that lead aircraft safely to the runway, providing pilots with essential visual cues for takeoff, landing, and taxiing. Their importance is so profound that any malfunction or lack of proper lighting can pose serious threats to flight safety, potentially leading to disastrous consequences. For instance, in low - visibility conditions such as fog, rain, or at night, airport lights become the primary means for pilots to navigate and make accurate landings. Without them, the risks of runway incursions, aborted landings, or even collisions increase exponentially.
Purpose of the Article
This article aims to be your comprehensive guide to the fascinating world of airport lights. Whether you are an aviation enthusiast, a pilot - in - training, a frequent flyer, or simply someone curious about the inner workings of airports, by the end of this read, you will have a deep - seated understanding of everything related to airport lights. We will explore their types, colors, spacing, and the advanced technologies behind them. We will also delve into how these lights are maintained and the strict regulations governing their use. So, fasten your seatbelts and get ready to embark on this illuminating journey into the world of airport lights.
Types of Airport Lights
Runway Lights
Edge Lights
Runway edge lights are a fundamental component of airport lighting systems. These lights are installed along the edges of the runway and serve a crucial purpose: to clearly define the lateral boundaries of the runway. They come in two distinct colors. For the majority of the runway length, the edge lights are white, which provides a clear and consistent visual cue for pilots during takeoff and landing. However, in the last 900 meters of the runway, the edge lights transition to yellow. This color change is not arbitrary; it serves as a warning to the pilot that they are approaching the end of the runway. For example, when a pilot is landing at a busy international airport like London Heathrow, the white edge lights guide them smoothly along the long runway, and as they near the end, the yellow lights alert them to prepare for the final phase of the landing roll - out. The proper functioning of these lights is essential, as any malfunction could lead to a pilot misjudging the runway boundaries, potentially resulting in a runway excursion.
Centerline Lights
Runway centerline lights are another important type of runway lighting. These lights are installed along the centerline of the runway and are mainly white in color. Their primary function is to provide a clear visual reference for pilots, especially during low - visibility conditions such as fog, heavy rain, or at night. The white lights along the centerline help pilots maintain a straight path during takeoff and landing. In certain specific areas of the runway, such as the last 900 meters, the centerline lights change to red. This red coloration is a warning to the pilot that they are approaching the end of the runway and need to exercise caution. For instance, at airports in mountainous regions where visibility can be severely restricted due to weather conditions, the runway centerline lights are a lifeline for pilots. They ensure that the aircraft stays on the correct path, reducing the risk of veering off the runway and potentially colliding with obstacles.
Threshold Lights
Runway threshold lights are easily distinguishable by their bright green color. These lights are located at the beginning of the runway, precisely at the threshold, which is the start point of the usable runway surface for landing and takeoff. Their function is to clearly mark the location of the runway threshold. This is of utmost importance for pilots as it allows them to accurately identify the starting point of the runway during landing. For example, in a complex airport environment with multiple runways, like Dubai International Airport, the green threshold lights stand out clearly, enabling pilots to make a smooth and accurate approach. If the threshold lights are not functioning properly, it can lead to pilots misjudging the start of the runway, which may result in a late touchdown or a rejected takeoff.
Taxiway Lights
Edge Lights
Taxiway edge lights play a crucial role in guiding aircraft on the ground. These lights are colored blue and are installed along the edges of the taxiway. Their main purpose is to define the boundaries of the taxiway, allowing pilots to easily distinguish the edges of the taxiway from the surrounding areas, such as the apron or other non - taxiway surfaces. For example, when an aircraft is taxiing at a large airport like Changi Airport in Singapore, the blue edge lights provide a clear visual indication of where the taxiway ends and the apron begins. This helps prevent the aircraft from straying off the taxiway and potentially colliding with other aircraft, ground vehicles, or airport infrastructure. The proper illumination and maintenance of these blue edge lights are essential for safe ground operations.
Centerline Lights
Taxiway centerline lights are colored green and are installed along the centerline of the taxiway. They are designed to provide guidance to the pilot, ensuring that the aircraft remains on the correct path while taxiing. The green centerline lights act as a visual reference, especially in low - light conditions or when there is a lot of ground traffic. For instance, at airports that are open 24/7 and have a high volume of aircraft movements, such as Hartsfield - Jackson Atlanta International Airport, the taxiway centerline lights help pilots navigate through the complex network of taxiways. Pilots can follow the green lights to reach their designated gates, runways, or other areas of the airport. Without these centerline lights, taxiing operations could become much more challenging and potentially dangerous, increasing the risk of ground collisions.
Approach Lights
Sequenced Flashing Lights
Sequenced flashing lights are a unique and important part of the approach lighting system. These lights are arranged in a specific pattern and flash in a sequential manner. The typical flashing pattern is designed to create a visual effect that helps pilots determine their landing direction and distance from the runway. For example, as an aircraft approaches the runway, the sequenced flashing lights appear to be moving towards the pilot, creating an optical illusion that gives the pilot a sense of the correct alignment with the runway. The closer the aircraft gets to the runway, the faster the lights seem to flash. This sequential flashing pattern is especially useful in low - visibility conditions. At an airport like Frankfurt Airport, where weather conditions can vary greatly, the sequenced flashing lights assist pilots in making a safe approach even when visibility is reduced due to fog or low - hanging clouds.
Constant - Burning Lights
Constant - burning lights are also an integral part of the approach lighting system. These lights remain continuously illuminated. Their main function is to provide pilots with information about the runway's visibility and position. They act as a steady visual reference point during the approach phase. For example, when an aircraft is approaching an airport at night, the constant - burning lights can be seen from a distance, giving the pilot an early indication of the runway's location. They also help the pilot assess the overall visibility conditions. If the constant - burning lights appear dim or are difficult to see, it could indicate poor visibility, prompting the pilot to take appropriate precautions. In addition, these lights work in conjunction with other approach lights, such as the sequenced flashing lights, to provide a comprehensive visual aid for pilots during the critical approach and landing phases of a flight.
Color Meanings of Airport Lights
Red Lights
Red lights in an airport environment are like the universal symbol of danger and caution. At the runway end, red lights serve as a clear and unmistakable warning. They indicate to the pilot that they are approaching the end of the runway and must exercise extreme caution. For example, if a pilot fails to decelerate in time upon seeing these red runway end lights, there is a high risk of overshooting the runway, which could lead to a collision with obstacles beyond the runway, such as terrain, buildings, or other airport infrastructure.
In the case of stop bars, which are composed of red lights, they are used to signal an aircraft to stop immediately. These are typically activated when there is a potential hazard on the runway or when another aircraft is about to cross the path of the approaching aircraft. For instance, at a busy airport where multiple runways intersect, stop bars with red lights are crucial in preventing runway incursions. If an aircraft were to ignore the red stop bar lights and proceed, it could result in a catastrophic head - on collision with another aircraft.
Green Lights
Green lights are a symbol of safety and permission in the airport lighting system. Runway entrance lights, which are green, are a welcome sight for pilots. They mark the beginning of the runway and indicate that it is safe to enter the runway for takeoff or landing. For example, when a pilot is approaching an airport in low - visibility conditions, the bright green runway entrance lights act as a beacon, guiding them to the correct starting point for landing. These lights give the pilot the assurance that they are on the right path and can safely proceed with the landing or takeoff maneuver.
White Lights
White lights play a significant role in guiding and defining the runway for pilots. Runway edge lights, which are white for most of the runway length, help pilots clearly identify the lateral boundaries of the runway. This is especially important during takeoff and landing, as it allows the pilot to maintain the correct position on the runway. For example, in poor weather conditions like heavy rain or snow, the white edge lights stand out, ensuring that the aircraft stays within the designated runway area.
Runway centerline lights, which are also mainly white, provide a visual reference for the pilot to maintain a straight path along the center of the runway. This is crucial during low - visibility operations, as it helps the pilot align the aircraft correctly for takeoff and landing. In the final 900 meters of the runway, the centerline lights change to red, but the white lights in the earlier parts of the runway are essential for the initial and mid - phase of the landing or takeoff process.
Blue Lights
Blue lights are primarily associated with taxiways. Taxiway edge lights, which are colored blue, serve to define the edges of the taxiway. This is important for pilots when taxiing their aircraft on the ground. For example, when an aircraft is moving from the gate to the runway or vice versa, the blue edge lights help the pilot distinguish the taxiway from the surrounding areas, such as the apron or grassy areas. This prevents the aircraft from straying off the taxiway and potentially causing damage to the aircraft or colliding with other objects on the ground. The blue lights create a clear visual demarcation, making it easier for pilots to navigate the complex network of taxiways at an airport.
Spacing and Placement of Airport Lights
Runway Lights Spacing
The spacing of runway lights is a critical aspect of airport lighting design, carefully engineered to ensure the safety and efficiency of aircraft operations. Runway edge lights, which define the lateral boundaries of the runway, are typically spaced at intervals of around 60 meters. This consistent spacing provides pilots with a clear and continuous visual reference during takeoff and landing. For example, at a large international airport like John F. Kennedy Airport in New York, the 60 - meter spacing of edge lights allows pilots to easily identify the edges of the runway, even in adverse weather conditions. The white - colored edge lights along most of the runway length create a distinct and visible border, while the transition to yellow in the last 900 meters serves as a timely warning of the approaching runway end.
Runway centerline lights also have a specific spacing pattern. These lights, which help pilots maintain a straight path along the center of the runway, are usually spaced closer together than the edge lights, with an interval of about 30 meters. In low - visibility conditions, such as heavy fog or at night, the closer spacing of centerline lights becomes even more crucial. At airports in regions prone to frequent fog, like London Gatwick Airport, the 30 - meter spacing of centerline lights provides pilots with a more detailed and accurate visual cue, ensuring that the aircraft stays on the correct trajectory during takeoff and landing. The change to red in the last 900 meters of the centerline lights, similar to the edge lights, serves as a vital warning to the pilot.
Taxiway Lights Placement
Taxiway lights are strategically placed to guide aircraft safely on the ground. Taxiway edge lights, colored blue, are installed along the edges of the taxiway to define its boundaries. The placement of these lights is such that they create a clear and continuous visual demarcation. For example, at an airport with a complex taxiway network, like Los Angeles International Airport, the blue edge lights are placed in a way that they are easily visible from the cockpit, even when the aircraft is making turns. They are typically spaced at intervals that are suitable for the speed at which aircraft taxi, ensuring that pilots have enough time to react and maintain the correct position on the taxiway.
Taxiway centerline lights, colored green, are installed along the centerline of the taxiway. Their placement is designed to provide a direct visual path for the pilot to follow. These lights are spaced in a manner that allows pilots to maintain a consistent speed and direction while taxiing. In areas where the taxiway has sharp turns or intersects with other taxiways, the placement of centerline lights is adjusted to provide clear guidance. For instance, at an airport where multiple taxiways converge, the centerline lights are arranged in a way that they clearly indicate the correct route for the aircraft, reducing the risk of confusion and potential ground collisions.
Approach Lights Configuration

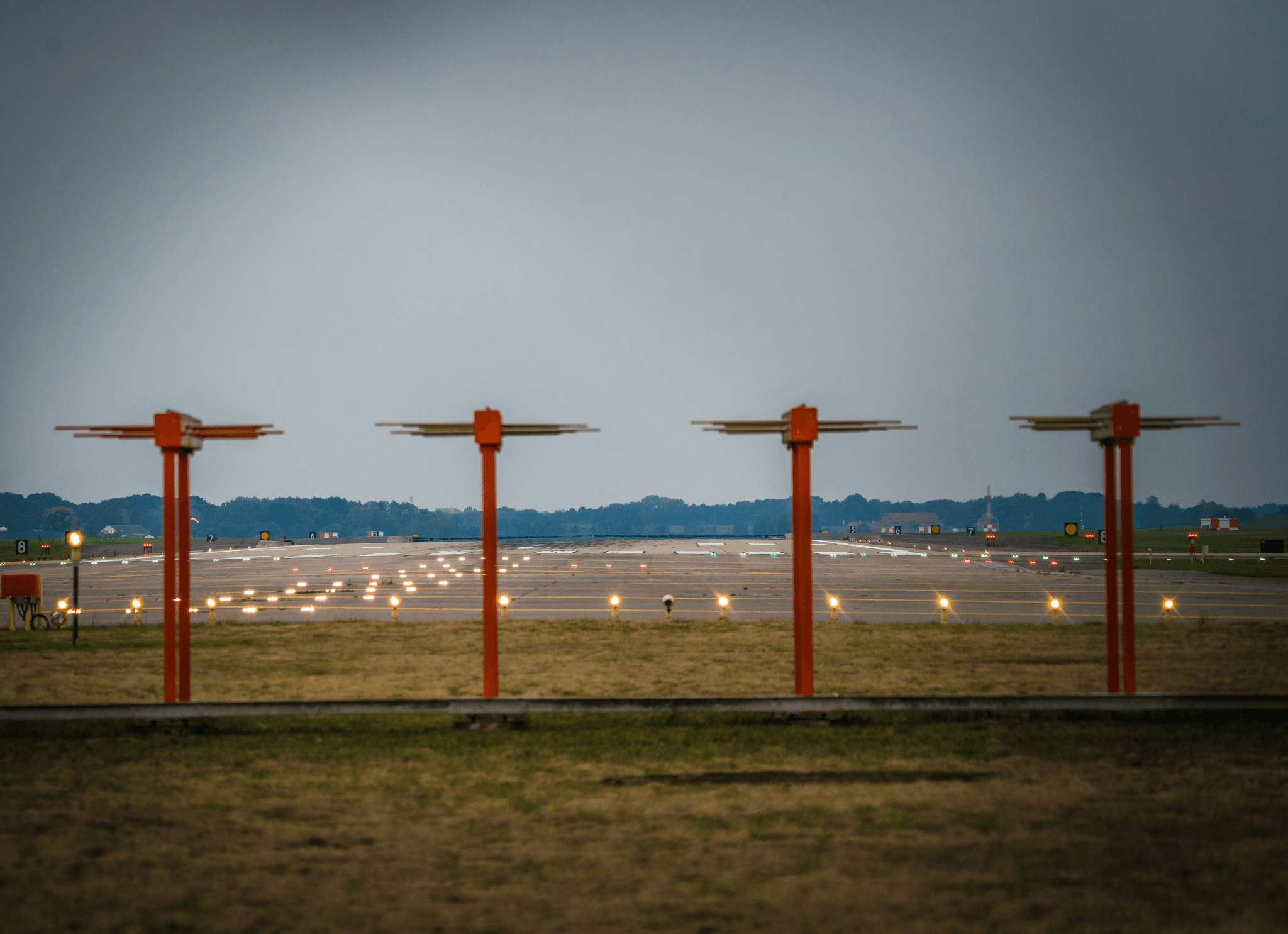

The configuration of approach lights is a complex and precise system that plays a crucial role in guiding aircraft during the approach and landing phases. The length of the approach lighting system can vary depending on the airport and the type of runway. In general, a typical approach lighting system for a precision - instrument runway can be up to 900 meters long. This length is designed to provide pilots with sufficient time to align the aircraft with the runway and make the necessary adjustments for landing.
The approach lights are arranged in a specific pattern. Sequenced flashing lights, which are an important part of the approach lighting system, are typically arranged in a series of bars or rows. For example, a common arrangement is a series of five flashing lights that create a visual effect of a moving arrow, pointing the pilot towards the runway. The flashing pattern is carefully designed to provide a sense of depth and distance. As the aircraft approaches the runway, the lights appear to be moving faster, giving the pilot an indication of the decreasing distance.
Constant - burning lights are also an integral part of the approach lighting configuration. These lights are placed in a way that they provide a continuous visual reference for the pilot. They are often arranged in a linear pattern along the sides of the sequenced flashing lights. The constant - burning lights help the pilot assess the overall alignment with the runway and the visibility conditions. For example, if the constant - burning lights appear dim or are difficult to see, it could indicate poor visibility, prompting the pilot to take appropriate precautions, such as initiating a go - around if necessary.
Maintenance and Importance of Airport Lights
Regular Maintenance Schedule
Regular maintenance of airport lights is crucial to ensure their optimal performance and, ultimately, the safety of aircraft operations. Airport lighting systems are typically subject to a strict maintenance schedule. Routine inspections are carried out daily, especially before the start of the day's flight operations. During these daily checks, maintenance crews visually inspect the lights for any signs of damage, such as broken lenses or loose fixtures. They also check for proper illumination, ensuring that all lights are functioning as they should.
In addition to daily inspections, more comprehensive maintenance is scheduled on a weekly or monthly basis. This includes a detailed check of the electrical components of the lights, such as the wiring, transformers, and power supplies. For example, the wiring is inspected for any signs of wear, corrosion, or damage that could potentially lead to electrical failures. Transformers are checked to ensure they are providing the correct voltage to the lights.
Periodic testing of the entire lighting system is also an essential part of the maintenance schedule. This may involve simulating different weather conditions and flight scenarios to test the effectiveness of the lights. For instance, during a low - visibility simulation, technicians can assess whether the approach lights and runway lights are providing sufficient guidance for a safe landing.
Consequences of Malfunctioning Lights
Malfunctioning airport lights can have dire consequences for flight safety. One of the most significant risks is during the landing phase. If the runway edge lights or centerline lights are not functioning properly, pilots may have difficulty determining the exact boundaries and center of the runway. This can lead to a situation where the aircraft lands off - center or even veers off the runway, resulting in a runway excursion. For example, a plane landing at an airport with malfunctioning edge lights may misjudge the lateral boundaries and land too close to the edge, potentially colliding with obstacles or other aircraft on the ground.
During takeoff, malfunctioning lights can also pose a threat. If the threshold lights are not working correctly, a pilot may be unsure of the exact starting point of the runway, which could affect the takeoff speed and trajectory. In some cases, this could lead to a rejected takeoff, which can be dangerous, especially if the aircraft is already at a high speed.
Taxiway lights are equally important for ground operations. Malfunctioning taxiway edge lights can cause confusion for pilots, leading them to stray off the taxiway. This can result in collisions with ground vehicles, other aircraft, or airport infrastructure. For example, an aircraft taxiing in low - light conditions may follow the incorrect path if the blue edge lights are not working, increasing the risk of a ground - based accident.
Approach lights are critical for guiding aircraft during the approach phase. If the sequenced flashing lights or constant - burning lights malfunction, pilots may have trouble aligning the aircraft with the runway and assessing the correct distance and altitude. This can lead to an aborted landing or, in the worst - case scenario, a crash. For instance, if the sequenced flashing lights are not flashing in the correct pattern, a pilot may approach the runway at the wrong angle, endangering the lives of everyone on board.
Future Developments in Airport Lighting Technology
New Lighting Technologies on the Horizon
The future of airport lighting is brimming with exciting possibilities, thanks to the rapid advancements in technology. One of the most significant developments is the increasing adoption of Light - Emitting Diode (LED) technology. LEDs have already made inroads in various lighting applications, and their potential in airport lighting is vast. LEDs offer several advantages over traditional lighting sources. They are highly energy - efficient, consuming significantly less power than incandescent or halogen lights. This not only reduces the overall energy consumption of the airport but also leads to cost savings in the long run. For example, compared to traditional runway lights, LED - based runway lights can consume up to 50% less energy, which is a substantial reduction considering the large number of lights used in an airport.
LEDs also have a much longer lifespan. They can last up to 50,000 hours or more, depending on the quality and usage conditions. This means that airports can reduce the frequency of maintenance and replacement of lights, saving both time and money. In addition, LEDs offer greater flexibility in terms of color and intensity control. They can be easily programmed to emit different colors and adjust their brightness levels, which can be useful for creating custom lighting patterns for specific flight operations or runway conditions.
Another emerging technology in airport lighting is the use of smart lighting control systems. These systems utilize sensors, such as motion sensors, light sensors, and weather sensors, to automatically adjust the lighting based on the surrounding conditions. For example, a smart lighting system can detect when an aircraft is approaching the runway and increase the intensity of the approach lights accordingly. It can also adjust the brightness of the runway and taxiway lights based on the ambient light conditions, reducing energy consumption during the day when less light is required.
Smart lighting control systems can also be integrated with other airport systems, such as the air traffic control system. This integration allows for seamless communication between different systems, enabling more efficient and coordinated operations. For instance, the air traffic control system can send signals to the lighting system to indicate the position and movement of aircraft, and the lighting system can respond by providing the appropriate lighting guidance.
How New Technologies Will Improve Safety and Efficiency
The new lighting technologies in airport lighting are set to bring about significant improvements in both safety and efficiency. In terms of safety, the enhanced visibility provided by LED lights and smart lighting control systems is a game - changer. LEDs have a higher luminous efficacy, which means they can produce more light per unit of power consumed. This results in brighter and more visible lights, even in adverse weather conditions. For example, in foggy or rainy conditions, the high - intensity light output of LEDs can penetrate the moisture in the air better than traditional lights, providing pilots with clearer visual cues.
Smart lighting control systems also contribute to safety by providing more precise and dynamic lighting guidance. The ability to adjust the lighting based on the real - time position and movement of aircraft ensures that pilots always have the correct lighting information. For instance, when an aircraft is making a turn on the taxiway, the smart lighting system can highlight the path of the turn, reducing the risk of the aircraft veering off the taxiway.
In terms of efficiency, the energy - saving features of LED lights and smart lighting control systems are crucial. The reduced energy consumption not only benefits the environment but also lowers the operating costs of the airport. With LEDs, airports can save on electricity bills, and the longer lifespan of the lights means fewer replacements and less maintenance work. Smart lighting control systems further optimize energy usage by automatically adjusting the lighting based on the actual needs, ensuring that lights are not wasted when they are not required.
Moreover, the integration of lighting systems with other airport systems, as enabled by smart lighting control technology, improves overall operational efficiency. This integration allows for better coordination between different aspects of airport operations, such as air traffic control, ground operations, and maintenance. For example, the air traffic control system can communicate with the lighting system to ensure that the lighting is set up correctly for incoming and outgoing flights, reducing delays and improving the flow of aircraft in and out of the airport.
Frequently Asked Questions about Airport Lights
What Do Different Light Colors Mean?
One of the most common questions about airport lights is regarding the meaning of different colors. Red lights are a warning sign. At the runway end, they indicate that the aircraft is approaching the end of the runway, and pilots must be extremely cautious. Stop bars with red lights are used to signal an aircraft to stop immediately, usually when there is a potential hazard on the runway or when another aircraft is about to cross its path.
Green lights are a sign of safety and permission. Runway entrance lights, which are green, mark the beginning of the runway and indicate that it is safe to enter for takeoff or landing.
White lights, such as those on runway edge lights (for most of the runway length) and runway centerline lights (mostly), help pilots identify the boundaries and center of the runway, respectively. This is crucial for maintaining the correct position during takeoff and landing.
Blue lights, specifically taxiway edge lights, define the edges of the taxiway, preventing aircraft from straying off while taxiing on the ground.
What Happens If an Airport Light Malfunctions?
Malfunctioning airport lights can have serious consequences. If runway lights malfunction, it can be extremely dangerous during takeoff and landing. For example, if the runway edge lights are not working properly, pilots may have difficulty determining the lateral boundaries of the runway, increasing the risk of a runway excursion. Malfunctioning approach lights can also pose a significant threat. Pilots rely on these lights to align the aircraft with the runway during the approach phase. If the sequenced flashing lights or constant - burning lights are not functioning correctly, pilots may approach the runway at the wrong angle or be unable to accurately judge the distance and altitude, potentially leading to an aborted landing or a more serious accident.
Are There Backup Systems for Airport Lights?
Yes, airports have backup systems in place to ensure the continuous operation of airport lights in case of a primary system failure. Most airports have emergency generators that can quickly take over and provide power to the lighting systems in the event of a power outage. In addition, some lighting systems are designed with redundant components. For example, if one light fixture fails in a series of runway centerline lights, the adjacent lights can still provide sufficient guidance. These backup systems are regularly tested as part of the airport's maintenance and safety protocols to ensure they will work when needed.
How Do Pilots Train to Use Airport Lights?
Pilots undergo extensive training to become proficient in using airport lights. During flight training, they learn about the different types of airport lights, their colors, and what each light or light pattern indicates. They practice takeoffs and landings in various lighting conditions, both in real - world flight training and in flight simulators. Flight simulators are particularly useful as they can replicate a wide range of scenarios, including different weather conditions that may affect the visibility of airport lights. Pilots also study the relevant regulations and procedures related to airport lights as part of their training, ensuring they are well - prepared to handle any situation involving airport lighting during their flights.
Can Airport Lights Be Adjusted According to Weather Conditions?
Yes, modern airport lighting systems are designed to be adjustable according to weather conditions. In low - visibility conditions such as fog, rain, or snow, the intensity of the lights can be increased to improve visibility. For example, the approach lights and runway lights can be set to a higher brightness level. Some airports also have the ability to adjust the color temperature of the lights in certain weather conditions. This adjustment can enhance the contrast between the lights and the surrounding environment, making it easier for pilots to see the lights. Additionally, smart lighting control systems, which are becoming more common, can automatically adjust the lighting based on real - time weather data collected from sensors at the airport.
Conclusion
In conclusion, airport lights are the unsung heroes of the aviation world. Their importance in ensuring the safety and efficiency of flight operations cannot be overstated. From the different types of lights, each with its unique function, to the specific color meanings that communicate crucial information to pilots, every aspect of airport lighting is carefully designed and regulated. The precise spacing and placement of these lights are essential for providing clear visual cues to pilots during takeoff, landing, and taxiing.
Regular maintenance of airport lights is the key to their reliable performance, and any malfunction can have severe consequences for flight safety. As technology continues to evolve, the future of airport lighting holds great promise, with new technologies like LEDs and smart lighting control systems set to further enhance safety and efficiency.
For those interested in aviation, understanding airport lights is a fundamental step. Whether you are a pilot, a frequent flyer, or an aviation enthusiast, this knowledge enriches your understanding of the complex and fascinating world of aviation. We encourage you to continue exploring the topic of aviation safety, as it is a field that is constantly evolving and improving, with new technologies and regulations being introduced regularly to ensure the safety of air travel. After all, every flight, from takeoff to landing, is made possible and safe, in large part, thanks to the humble yet mighty airport lights.
