In the complex world of aviation, Runway Visual Range (RVR) stands as a crucial parameter that directly influences the safety and efficiency of airport operations. Whether it's a small regional airport or a major international hub, understanding and accurately measuring Runway Visual Range is essential for pilots, air traffic controllers, and airport operators. This in - depth guide will explore every aspect of Runway Visual Range, from its definition and measurement principles to its impact on flight operations and the latest technologies used to enhance it, providing valuable insights for those in the aviation industry and potential customers interested in advanced airport equipment.
What is Runway Visual Range?
Runway Visual Range refers to the distance along the runway that a pilot can see from the touchdown point. It is a quantitative measure expressed in meters or feet and is used to describe the visibility conditions along the runway during takeoff and landing. Unlike general visibility, which is measured horizontally over a large area, Runway Visual Range focuses specifically on the runway environment, taking into account factors such as lighting, weather conditions, and the presence of obstructions.
For example, in clear weather conditions, the Runway Visual Range may be very high, allowing pilots to have an unobstructed view of the entire runway. However, during adverse weather events like heavy fog, rain, or snow, the Runway Visual Range can decrease significantly, posing challenges to safe flight operations. Accurate determination of Runway Visual Range helps pilots make informed decisions about whether it is safe to take off or land, and also guides air traffic controllers in managing airport operations to minimize delays and ensure the safety of aircraft and passengers.
Measurement Principles of Runway Visual Range
Optical Measuring Instruments
One of the primary methods for measuring Runway Visual Range is through the use of optical measuring instruments. These instruments work based on the principle of light scattering and absorption. A transmitter emits a beam of light along the runway, and a receiver located at a certain distance away measures the intensity of the light that has been scattered or absorbed by the atmosphere.
The most common optical instrument for measuring Runway Visual Range is the transmissometer. A transmissometer consists of a light source and a receiver separated by a known baseline distance, usually ranging from 50 to 300 meters. As the light travels through the atmosphere between the transmitter and the receiver, it is attenuated by particles such as fog droplets, raindrops, or dust. By measuring the amount of light received compared to the amount transmitted, the transmissometer can calculate the extinction coefficient of the atmosphere, which is then used to determine the Runway Visual Range based on established mathematical models.

Another type of optical instrument is the backscatter sensor. Instead of measuring the transmitted light, a backscatter sensor detects the light that is scattered back towards the receiver by the particles in the atmosphere. The intensity of the backscattered light is related to the concentration and size of the particles, and this information is used to estimate the Runway Visual Range. Backscatter sensors are often more compact and easier to install compared to transmissometers, making them suitable for a wider range of airport environments.
Electronic Measuring Systems
In addition to optical instruments, electronic measuring systems are also used to measure Runway Visual Range. These systems typically use sensors that detect changes in the electrical properties of the atmosphere caused by the presence of moisture or other particles.
For example, some electronic sensors measure the conductivity of the air, which can change depending on the humidity and the presence of dissolved substances in the air. By correlating these electrical measurements with known Runway Visual Range values under different weather conditions, the system can estimate the current Runway Visual Range. Another approach is to use microwave sensors, which emit microwave radiation and measure the reflection or absorption of the radiation by the atmosphere. The characteristics of the received microwave signals are then analyzed to determine the Runway Visual Range.
Electronic measuring systems offer several advantages, such as faster response times and the ability to operate in a wider range of environmental conditions. They can also be integrated with other airport monitoring systems, providing real - time data for more comprehensive airport management.
Factors Affecting Runway Visual Range
Weather Conditions
Weather is one of the most significant factors that affect Runway Visual Range. Different weather phenomena have distinct impacts on visibility along the runway.

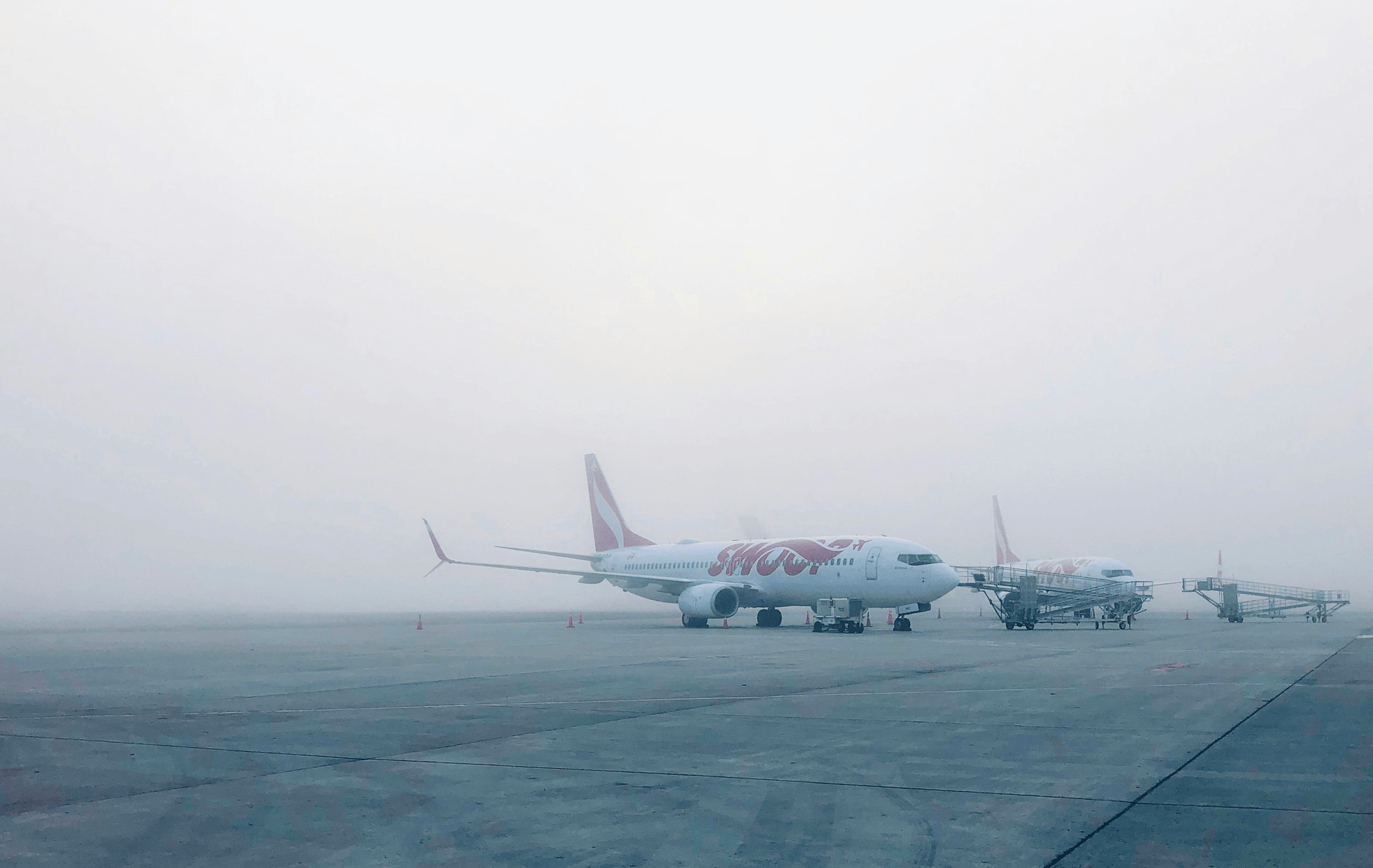

Fog: Fog is perhaps the most notorious weather condition for reducing Runway Visual Range. When tiny water droplets in the air condense and form a dense cloud close to the ground, it significantly reduces the amount of light that can travel through the atmosphere. In dense fog, the Runway Visual Range can drop to as low as a few dozen meters, making it extremely difficult for pilots to see the runway markings and other critical visual cues during takeoff and landing. Specialized fog - dispersal techniques and enhanced runway lighting systems are often employed in airports to mitigate the effects of fog on Runway Visual Range.
Rain: Heavy rain can also reduce Runway Visual Range by scattering and absorbing light. The larger raindrops can disrupt the light beam, causing it to spread and lose intensity. Additionally, rain can create surface water on the runway, which can reflect light and further reduce visibility. In some cases, rain - induced spray can also obscure the pilot's view. To address this, airports may use runway grooving techniques to improve water drainage and reduce spray, and also adjust runway lighting to enhance visibility during rainy conditions.
Snow and Ice: Snowfall and the presence of ice on the runway can affect Runway Visual Range in multiple ways. Snow can accumulate on the runway, reducing the contrast between the runway surface and the markings, making them harder to see. Ice, especially black ice, which is transparent and difficult to detect, can pose a significant safety hazard as it reduces the visibility of the runway's surface texture. Airports have snow - removal and de - icing procedures in place to maintain a safe Runway Visual Range during winter weather conditions.

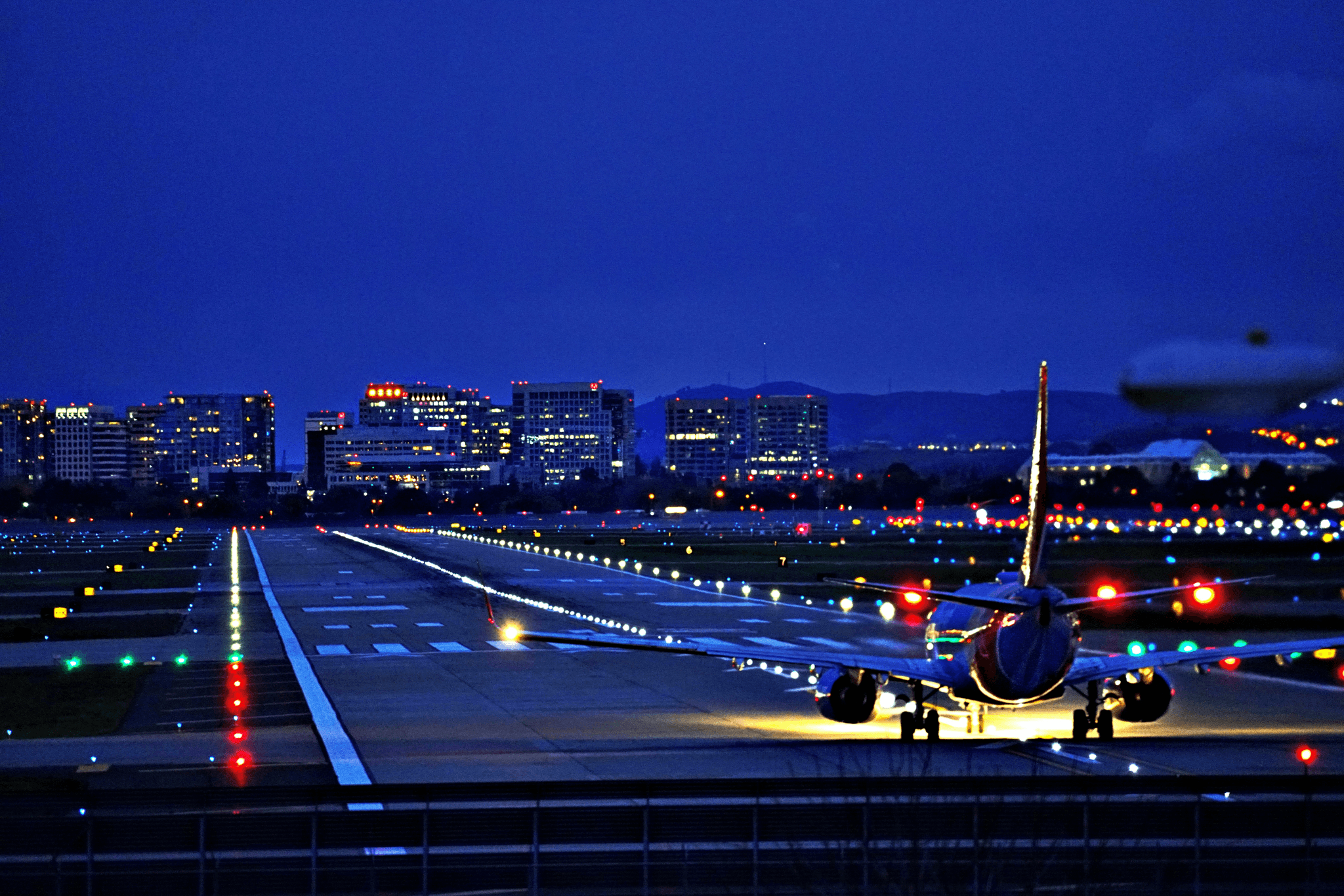

Lighting Systems
The effectiveness of runway lighting systems has a direct impact on Runway Visual Range. High - quality lighting can enhance visibility, especially during low - light conditions such as at night or in poor weather.
Runway Edge Lights: These are the most basic form of runway lighting. They are placed along the edges of the runway and emit a continuous red or white light, depending on their location. The lights help define the boundaries of the runway, allowing pilots to clearly see the runway's width and alignment. The intensity of runway edge lights can be adjusted based on the Runway Visual Range and weather conditions, providing a more visible guide for pilots.
Centerline Lights: Runway centerline lights are installed along the centerline of the runway and typically emit a white light. They assist pilots in maintaining the correct alignment during takeoff and landing, especially in low - visibility conditions. In some cases, the centerline lights may change color or intensity at certain distances from the touchdown point to provide additional visual cues to pilots.
Approach Lights: Approach lights are a series of lights installed along the approach path to the runway. They help pilots transition from the en - route phase to the landing phase by providing a clear visual reference. Different types of approach lighting systems, such as the Precision Approach Path Indicator (PAPI) and the Visual Approach Slope Indicator (VASI), use colored lights to indicate the correct glide path for landing. These lights are crucial for maintaining a safe Runway Visual Range during the critical approach phase.
Obstructions and Terrain
The presence of obstructions near the runway or the terrain around the airport can also influence Runway Visual Range. Tall buildings, trees, or other structures located close to the runway can block the pilot's view, reducing the effective Runway Visual Range. Similarly, hilly or mountainous terrain can create shadows or obstruct the line of sight, especially during certain times of the day.
Airports are required to conduct thorough surveys of the surrounding area to identify potential obstructions and ensure that they do not pose a threat to Runway Visual Range. In some cases, airports may need to implement measures such as tree - trimming, building height restrictions, or the installation of additional lighting to mitigate the impact of obstructions on visibility.
Impact of Runway Visual Range on Airport Operations
Flight Takeoff and Landing Decisions
Runway Visual Range plays a decisive role in pilots' takeoff and landing decisions. Airlines and aviation authorities establish minimum Runway Visual Range requirements for different types of aircraft and airport approaches.
For example, a small single - engine aircraft may have a lower minimum Runway Visual Range requirement compared to a large commercial airliner. Pilots must ensure that the Runway Visual Range at the departure and destination airports meets or exceeds these minimums before attempting a takeoff or landing. If the Runway Visual Range is below the minimum, pilots may need to delay the flight, divert to an alternate airport, or cancel the flight altogether. This not only affects the airline's schedule but also has financial implications, such as additional fuel costs for diversions and customer dissatisfaction.
Air Traffic Control Operations
Air traffic controllers rely on accurate Runway Visual Range information to manage airport traffic safely and efficiently. In low - Runway Visual Range conditions, air traffic control procedures are adjusted to increase the separation between aircraft, reducing the risk of collisions.
For instance, during foggy conditions, the minimum separation between landing aircraft may be increased from the normal value. This allows pilots more time to react and ensures that they have sufficient space to land safely. Air traffic controllers also need to coordinate with runway maintenance crews and weather forecasters to ensure that all available information about Runway Visual Range is used to make informed decisions about aircraft movements. Delays in air traffic are common during periods of low Runway Visual Range, and air traffic controllers must balance safety with the need to minimize disruptions to the airport's operations.
Airport Ground Operations
Low Runway Visual Range conditions can also impact ground operations at the airport. Ground vehicles, such as baggage carts, fuel trucks, and maintenance vehicles, need to operate with caution to avoid collisions and ensure the safety of personnel.
In addition, the movement of aircraft on the ground may be restricted or slowed down. Taxiing aircraft require more space and time to maneuver in low - visibility conditions, which can lead to congestion on the taxiways. Airports may implement special ground - movement procedures, such as using additional ground - control personnel or installing more visible taxiway markings, to enhance safety and efficiency during periods of low Runway Visual Range.
Technologies for Enhancing Runway Visual Range
Advanced Lighting Systems
The development of advanced lighting systems has been a key area in enhancing Runway Visual Range. LED (Light - Emitting Diode) lighting technology has revolutionized runway lighting. LEDs offer several advantages over traditional incandescent or fluorescent lights, including higher energy efficiency, longer lifespan, and faster response times.
LED runway lights can be programmed to emit different intensities and colors, providing more precise visual cues to pilots. Some LED lighting systems are also equipped with smart control features that can adjust the light intensity based on real - time Runway Visual Range measurements. For example, in low - visibility conditions, the lights can be automatically increased in intensity to enhance visibility. Additionally, new types of lighting, such as edge - emitting lights and in - pavement lights, are being developed to further improve the visibility of the runway edges and centerline.
Runway Visual Range Monitoring and Prediction Systems
Modern airports are increasingly using advanced Runway Visual Range monitoring and prediction systems. These systems combine data from multiple sources, including weather sensors, optical and electronic measuring instruments, and historical weather data, to provide real - time and accurate Runway Visual Range information.
Some systems use machine - learning algorithms to analyze the data and predict changes in Runway Visual Range over time. This allows airport operators and pilots to anticipate changes in visibility conditions and take appropriate actions in advance. For example, if the system predicts a significant decrease in Runway Visual Range due to an approaching fog bank, airlines can make decisions to delay flights or adjust their schedules accordingly. These monitoring and prediction systems are also integrated with air traffic control systems, enabling seamless communication and coordination among different stakeholders.
Weather Modification Techniques
In some cases, weather modification techniques are used to enhance Runway Visual Range. For example, fog - dispersal methods such as fog - seeding are employed in certain airports. Fog - seeding involves introducing substances, such as dry ice or silver iodide, into the fog layer. These substances act as nuclei around which water droplets in the fog can freeze or condense, causing the fog to dissipate or lift.
While weather modification techniques are not always practical or effective in all situations, they can be a valuable tool in improving Runway Visual Range during critical periods. However, their use also raises environmental and ethical considerations, and careful planning and regulation are required to ensure their safe and responsible application.
Haisen Global: Your Partner for Runway Visual Range Solutions
At Haisen Global, we understand the critical importance of Runway Visual Range in airport operations. That's why we offer a comprehensive range of products and services designed to enhance Runway Visual Range and ensure the safety and efficiency of your airport.
Our advanced Runway Visual Range measuring instruments, including high - precision transmissometers and backscatter sensors, provide accurate and reliable data. These instruments are designed to withstand harsh airport environments and offer long - term stability. With features such as remote monitoring and automatic calibration, our measuring instruments make it easy for airport operators to keep track of Runway Visual Range conditions in real - time.
In addition to measuring instruments, we also supply state - of - the - art runway lighting systems. Our LED - based lighting solutions not only improve visibility but also reduce energy consumption and maintenance costs. With customizable lighting configurations and smart control systems, our runway lights can be tailored to meet the specific needs of your airport.
We also offer Runway Visual Range monitoring and prediction systems that integrate the latest technologies, such as artificial intelligence and machine learning. These systems provide valuable insights and predictions, helping you make informed decisions and optimize airport operations. Our team of experts is always available to provide technical support, training, and maintenance services, ensuring that your Runway Visual Range - related equipment operates at its best.
Whether you're a small regional airport looking to upgrade your Runway Visual Range capabilities or a large international hub in need of advanced solutions, Haisen Global has the products and expertise to meet your requirements. Partner with us to enhance the safety and efficiency of your airport and provide a better experience for pilots, passengers, and airport staff.
In conclusion, Runway Visual Range is a vital aspect of airport operations that affects every stage of flight, from takeoff to landing. Understanding its measurement principles, the factors that influence it, and the technologies available to enhance it is essential for ensuring the safety and efficiency of airports. With the right equipment and solutions, such as those offered by Haisen Global, airports can effectively manage Runway Visual Range and overcome the challenges posed by adverse weather conditions and other factors, ensuring smooth and safe aviation operations.
