Aviation DME | Navigational Pillar for Precision Flights

· Blog

In the intricate realm of aviation, aviation DME (Distance Measuring Equipment) serves as an indispensable navigational tool, significantly enhancing flight safety and operational efficiency. Whether for commercial airliners soaring across continents or small private aircraft maneuvering in regional airspace, accurate distance measurement is crucial, and aviation DME fills this essential role. This in - depth blog post will thoroughly explore all aspects of aviation DME, from its fundamental principles and diverse types to its wide - ranging applications and the latest technological advancements, offering valuable insights for aviation professionals and potential clients interested in top - tier airport and aviation equipment.

Understanding the Basics of Aviation DME

What is Aviation DME?

Aviation DME is a radio navigation system that measures the slant range (the straight - line distance along the signal path) between an aircraft and a ground station. It operates based on the principle of radio wave propagation and time - of - flight measurement. When an aircraft's DME interrogator emits a series of radio frequency pulses, the ground - based DME transponder receives these pulses, delays them by a fixed amount, and then re - transmits them back to the aircraft. By measuring the time interval between the transmission of the interrogation pulses and the reception of the corresponding reply pulses, the aircraft's DME receiver can calculate the distance to the ground station using the known speed of radio waves (the speed of light, approximately 300,000 kilometers per second). The calculated distance is then displayed to the pilot in nautical miles, providing crucial information for navigation, approach, and landing procedures.

For example, during a long - haul international flight, pilots rely on aviation DME to accurately determine their distance from waypoints along the flight route. This enables them to maintain the correct flight path, adhere to air traffic control instructions, and ensure a safe and efficient journey. In the terminal area, as an aircraft approaches the airport for landing, aviation DME helps pilots precisely gauge their distance from the runway threshold, facilitating a smooth and accurate approach.

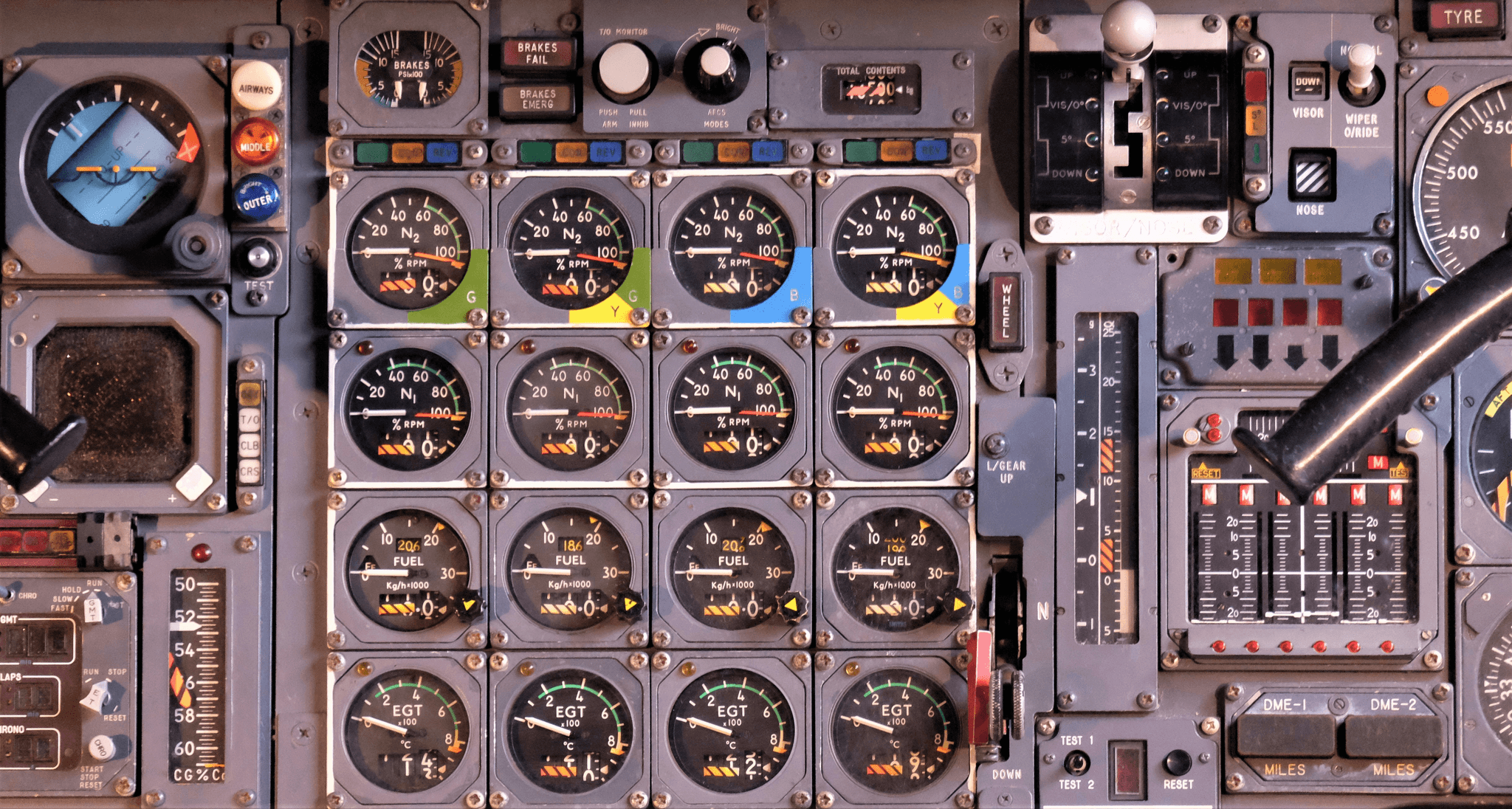

broken image

The Significance of Aviation DME in Aviation

Aviation DME plays a multifaceted and vital role in modern aviation. Firstly, it significantly enhances flight safety. By providing accurate distance information, pilots can avoid navigational errors that could lead to collisions with terrain, other aircraft, or restricted airspace. For instance, in mountainous regions, knowing the precise distance from nearby peaks through aviation DME allows pilots to maintain a safe altitude and flight path.

Secondly, aviation DME improves flight efficiency. Airlines can optimize their flight routes based on the accurate distance data provided by DME, reducing fuel consumption and flight times. This not only saves costs but also reduces the environmental impact of aviation. Additionally, during instrument approaches in adverse weather conditions, aviation DME is often integrated with other navigation systems, such as Instrument Landing Systems (ILS) or Global Positioning Systems (GPS), to provide pilots with reliable and precise guidance, enabling safe landings even when visibility is severely limited.

Working Principles of Aviation DME

Radio Frequency and Pulse Transmission

Aviation DME operates within the ultra - high - frequency (UHF) band, typically in the range of 962 - 1213 MHz. The system uses a paired frequency scheme, where each DME ground station is assigned a specific transmit and receive frequency pair. The aircraft's DME interrogator selects the appropriate frequency based on the navigation requirements and the desired ground station.

The operation of aviation DME begins with the aircraft's interrogator emitting a series of radio frequency pulses. These pulses are transmitted in a specific pattern, usually at a rate of 15 - 60 pulses per second. The interrogation pulses are designed to be unique and distinguishable from other signals in the airwaves to ensure accurate communication with the intended DME ground station. When the ground - based DME transponder receives these interrogation pulses, it identifies the aircraft's request and initiates a response.

Time - of - Flight Calculation

The key to distance measurement in aviation DME lies in the time - of - flight calculation. After the DME ground transponder receives the interrogation pulses from the aircraft, it delays the response by a fixed amount, typically around 50 microseconds. This delay is standardized across all DME systems to ensure consistent and accurate distance calculations. The transponder then re - transmits a series of reply pulses back to the aircraft.

The aircraft's DME receiver measures the time interval between the transmission of the interrogation pulses and the reception of the reply pulses. Since the speed of radio waves is constant, the distance between the aircraft and the ground station can be calculated using the simple formula: Distance = (Time Interval / 2) * Speed of Light. The division by two accounts for the round - trip travel of the radio waves (from the aircraft to the ground station and back). The calculated distance is then processed and displayed to the pilot in a user - friendly format, usually on the aircraft's navigation display or instrument panel.

Signal Processing and Accuracy

To ensure accurate distance measurement, aviation DME systems incorporate sophisticated signal processing techniques. The aircraft's DME receiver analyzes the received reply pulses to filter out any noise or interference in the signal. It also checks the integrity of the received pulses, verifying that they match the expected characteristics in terms of frequency, pulse width, and spacing.

In addition, DME systems use techniques such as pulse counting and averaging to improve the accuracy and reliability of the distance measurements. By averaging multiple distance calculations over a short period, the system can reduce the impact of random errors and provide a more stable and accurate distance reading. Modern aviation DME systems can achieve an accuracy of within 0.1 nautical miles under ideal conditions, making them highly reliable for critical navigation tasks.

Types of Aviation DME

Conventional DME

Conventional aviation DME is the traditional form of the system, which has been in use for decades. It consists of a basic DME interrogator installed in the aircraft and a corresponding DME transponder on the ground. Conventional DME systems provide reliable distance information but have some limitations.

One of the main limitations is their susceptibility to interference from other radio frequency sources. In areas with high radio traffic or near powerful transmitters, the signals of conventional DME can be disrupted, leading to inaccurate distance readings. Additionally, conventional DME has a relatively limited number of available channels, which can cause congestion in busy airspace, especially in regions with a high density of aircraft and ground stations. Despite these limitations, conventional DME still plays a significant role in many aviation operations, especially in older aircraft models and in regions where more advanced systems have not yet been fully implemented.

DME/P (DME with Precision Approach Capability)

DME/P is an enhanced version of aviation DME that offers precision approach capabilities. It is designed to provide more accurate distance information during the final approach and landing phases of flight, particularly in low - visibility conditions. DME/P systems work in conjunction with other navigation aids, such as ILS or Microwave Landing Systems (MLS), to offer pilots a more precise and reliable means of guiding their aircraft to the runway.

During a DME/P - assisted approach, the aircraft's DME receiver provides continuous and highly accurate distance information from specific points along the approach path, such as the outer marker, middle marker, and inner marker. This information, combined with the guidance from other navigation systems, allows pilots to maintain the correct glide path and alignment, ensuring a safe and accurate landing even when visibility is poor. DME/P systems are especially valuable in airports located in challenging geographical areas or in regions with frequent adverse weather conditions.

broken image

DME/D (DME with Differential Correction)

DME/D is another advanced type of aviation DME that incorporates differential correction technology. Differential DME works by comparing the distance measurements of a reference DME receiver at a known location (usually a ground - based monitoring station) with the measurements of the aircraft's DME receiver. Any discrepancies between the two measurements are used to calculate correction factors, which are then transmitted to the aircraft.

The aircraft's DME system applies these correction factors to its distance measurements, significantly improving the accuracy and reliability of the data. DME/D can reduce errors caused by factors such as atmospheric conditions, signal propagation delays, and inaccuracies in the DME ground station's calibration. This enhanced accuracy makes DME/D particularly useful for applications that require high - precision navigation, such as satellite - based approaches, area navigation (RNAV), and the operation of unmanned aerial vehicles (UAVs) in complex airspace environments.

Applications of Aviation DME in Aviation Operations

En-Route Navigation

During en - route flight, aviation DME is an essential tool for pilots to navigate along established airways and between waypoints. Pilots use DME to monitor their distance from key navigation points, ensuring they remain on the correct flight path. For example, when flying on a long - distance international route, the aircraft may pass over a series of DME - equipped waypoints. By continuously checking the DME distance to these waypoints, pilots can make necessary course corrections to stay on track and avoid deviating into restricted airspace or other aircraft's flight paths.

Aviation DME also helps in calculating fuel consumption and flight time more accurately. By knowing the precise distance to the destination or the next refueling point, pilots can optimize their fuel usage, adjust the aircraft's speed, and plan for potential diversions if needed. This not only improves the operational efficiency of the flight but also contributes to cost savings for airlines.

Approach and Landing

In the approach and landing phase, aviation DME provides critical information for pilots to safely bring their aircraft to the runway. When an aircraft is on an instrument approach, DME is often used in combination with other navigation aids, such as ILS or VOR (VHF Omnidirectional Range). The DME distance to the runway threshold or specific approach fixes helps pilots determine their position relative to the runway, allowing them to establish the correct descent profile and glide path.

For instance, during a standard ILS approach, the DME distance is used to identify key points along the approach path, such as the outer marker, middle marker, and final approach fix. Pilots rely on this distance information to time their descent, configure the aircraft for landing, and ensure they are at the appropriate altitude and speed as they approach the runway. In low - visibility conditions, where visual references are limited, aviation DME becomes even more crucial, enabling pilots to execute a safe and accurate landing with confidence.

broken image

Air Traffic Control and Separation Management

Aviation DME also plays a vital role in air traffic control (ATC) operations. ATC controllers use DME information to manage aircraft separation, ensuring that there is a safe distance between aircraft at all times. By knowing the DME distances of aircraft from specific reference points, such as VORs or DME ground stations, controllers can accurately monitor the position of aircraft in the airspace and issue appropriate instructions to maintain safe separation.

In busy airspace, where multiple aircraft are operating simultaneously, aviation DME helps controllers optimize traffic flow and reduce congestion. For example, during peak hours at a major airport, controllers can use DME - based distance measurements to sequence arriving aircraft more efficiently, allowing for a smooth and orderly flow of traffic on the approach paths. This not only improves the overall efficiency of the airport but also enhances safety by minimizing the risk of mid - air collisions.

Integration of Aviation DME with Other Navigation Systems

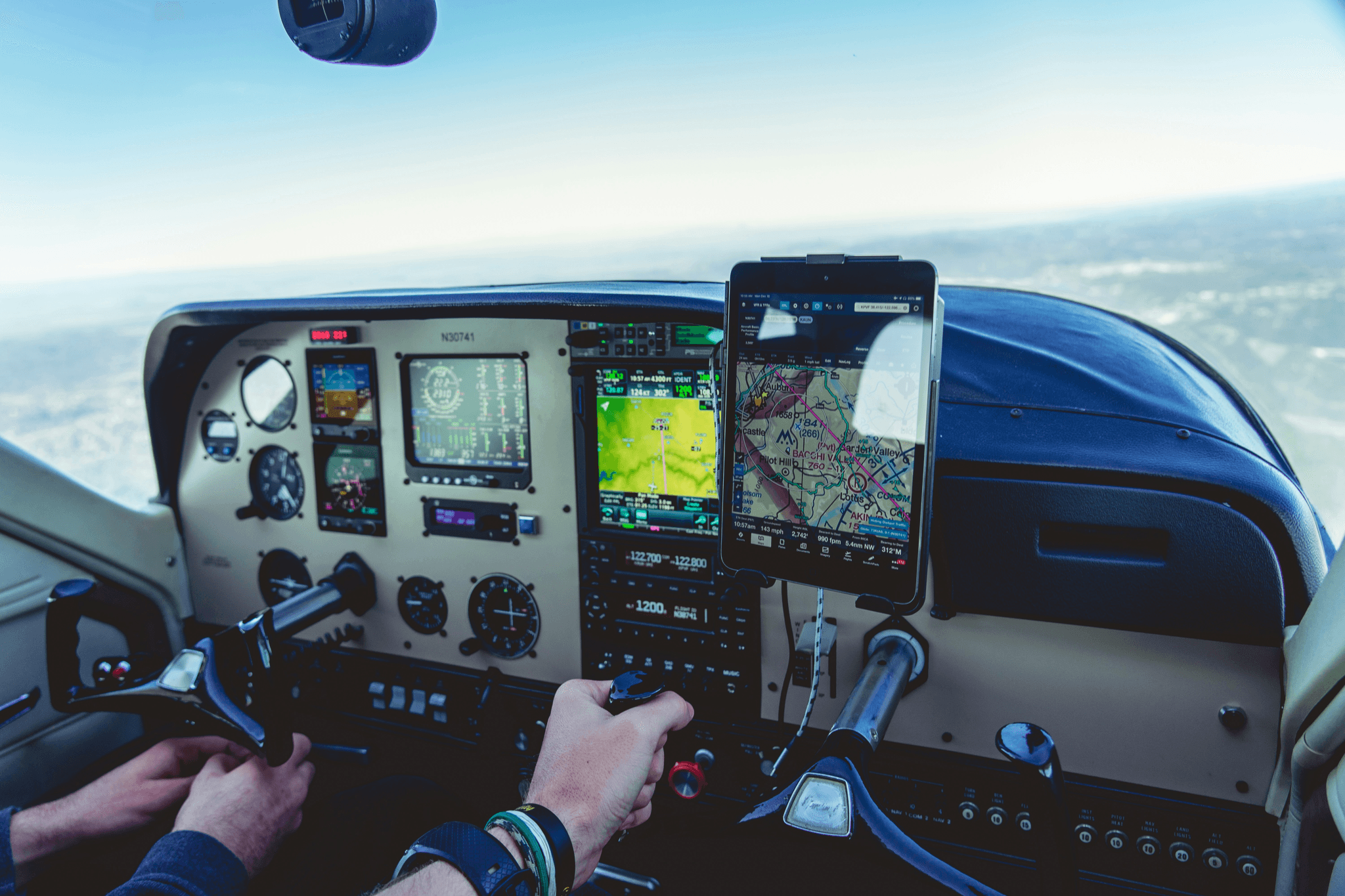

Aviation DME and GPS

The integration of aviation DME with the Global Positioning System (GPS) has become increasingly common in modern aviation. While GPS provides highly accurate position information in terms of latitude, longitude, and altitude, aviation DME offers precise distance measurements to specific ground - based reference points. By combining the two systems, pilots can benefit from the strengths of both.

For example, during an RNAV flight, GPS can provide the aircraft's position in real - time, while aviation DME can be used to cross - check the distance to waypoints or to supplement the GPS data in areas where GPS signals may be weak or unreliable, such as in urban canyons or near large bodies of water. The integration of DME and GPS also enhances the accuracy and reliability of navigation systems, providing pilots with a more comprehensive and robust set of tools for safe and efficient flight operations.

Aviation DME and ILS

Aviation DME and the Instrument Landing System (ILS) are often used in tandem during instrument approaches. ILS provides lateral and vertical guidance to the runway, while aviation DME offers accurate distance information. Together, they form a powerful combination that enables pilots to execute precise and safe approaches, even in the most challenging weather conditions.

During an ILS approach, the DME distance to the runway threshold or specific approach fixes is displayed to the pilot, allowing them to monitor their progress along the approach path. This distance information, when combined with the localizer and glideslope signals from the ILS, helps pilots maintain the correct alignment and descent profile. In case of any discrepancies or failures in one of the systems, the other can still provide valuable information, ensuring that the pilot has multiple options for a safe landing.

Aviation DME and ADS-B

Automatic Dependent Surveillance - Broadcast (ADS - B) is another technology that can be integrated with aviation DME. ADS - B allows aircraft to transmit their position, altitude, velocity, and other information to ground stations and other aircraft in the vicinity. By combining ADS - B data with DME - based distance measurements, air traffic controllers and pilots can have a more comprehensive and accurate picture of the airspace situation.

For example, ADS - B can provide real - time information about the position of nearby aircraft, while aviation DME can offer precise distance information to specific reference points. This integration enhances situational awareness, improves traffic management, and can potentially reduce the workload for both controllers and pilots, leading to safer and more efficient aviation operations.

Technological Advancements in Aviation DME

Miniaturization and Integration of DME Equipment

In recent years, there has been a significant trend towards the miniaturization and integration of aviation DME equipment. Modern DME systems are designed to be smaller, lighter, and more compact, making them easier to install in a wide range of aircraft, from small general aviation planes to large commercial airliners.

The integration of DME functionality with other avionics systems, such as flight management systems (FMS), navigation displays, and communication systems, has also become more prevalent. This integration reduces the overall size and weight of the avionics suite, simplifies the installation process, and improves the overall reliability and maintainability of the aircraft's navigation equipment. Additionally, the miniaturized DME equipment often consumes less power, which is beneficial for aircraft with limited power resources, such as UAVs and electric aircraft.

broken image

Improved Signal Processing and Anti - Interference Capabilities

Advancements in signal processing technology have significantly enhanced the performance of aviation DME. Modern DME systems use advanced digital signal processing algorithms to filter out noise, interference, and multipath signals, improving the accuracy and reliability of distance measurements.

Furthermore, new anti - interference techniques have been developed to mitigate the impact of external radio frequency sources on DME signals. For example, some DME systems now incorporate frequency - hopping technology, which allows the system to rapidly change its operating frequency to avoid interference from other transmitters. These improvements in signal processing and anti - interference capabilities ensure that aviation DME can operate effectively in even the most challenging electromagnetic environments, providing pilots with consistent and accurate distance information.

Enhanced Safety Features and Redundancy

Safety is a top priority in aviation, and aviation DME technology has evolved to include enhanced safety features and redundancy. Many modern DME systems are equipped with built - in self - monitoring and diagnostic functions. These functions continuously check the integrity of the system, detecting any faults or malfunctions and alerting the pilot or maintenance personnel.

In addition, some DME systems offer redundant components or backup modes of operation. For example, in the event of a failure of the primary DME receiver, the aircraft may have a secondary receiver that can take over and continue to provide distance information. This redundancy ensures that even in the face of equipment failures, pilots still have access to critical navigation data, enhancing the overall safety of flight operations.

Haisen Global: Your Trusted Partner for Aviation DME Solutions

At Haisen Global, we recognize the pivotal role that aviation DME plays in aviation safety and efficiency. That's why we are dedicated to providing top - notch aviation DME products and comprehensive solutions to meet the diverse needs of our international clients.

Our range of aviation DME equipment includes state - of - the - art interrogators and transponders, designed with the latest technologies to ensure high - performance, reliability, and accuracy. Our DME products feature advanced signal processing capabilities, miniaturized designs, and enhanced anti - interference functions, making them suitable for a wide variety of aircraft and operating environments. Whether you are equipping a small private aircraft or a large commercial airliner, our aviation DME solutions can provide you with the precise distance information you need for safe and efficient navigation.

In addition to our high - quality hardware, we also offer comprehensive technical support and maintenance services. Our team of experienced aviation experts is available around the clock to assist you with installation, calibration, troubleshooting, and system upgrades. We understand the importance of minimizing downtime and ensuring the continuous operation of your aviation equipment, and we are committed to providing you with the best possible service.

Furthermore, we stay at the forefront of technological advancements in aviation DME. Our research and development team constantly explores new technologies and innovations to improve the performance and capabilities of our products. By partnering with Haisen Global, you can be confident that you are investing in the latest and most reliable aviation DME solutions, keeping your aircraft at the cutting - edge of navigation technology.

GET YOUR QUOTE NOW!

In conclusion, aviation DME is an integral part of modern aviation, providing essential distance measurement capabilities for safe and efficient flight operations. From its fundamental principles and diverse types to its wide - ranging applications and continuous technological advancements, aviation DME continues to evolve and play a crucial role in the aviation industry. With Haisen Global as your partner, you can access the best - in - class aviation DME products and services, ensuring that your aircraft is equipped with the most reliable and advanced navigation tools for a successful and safe journey.
